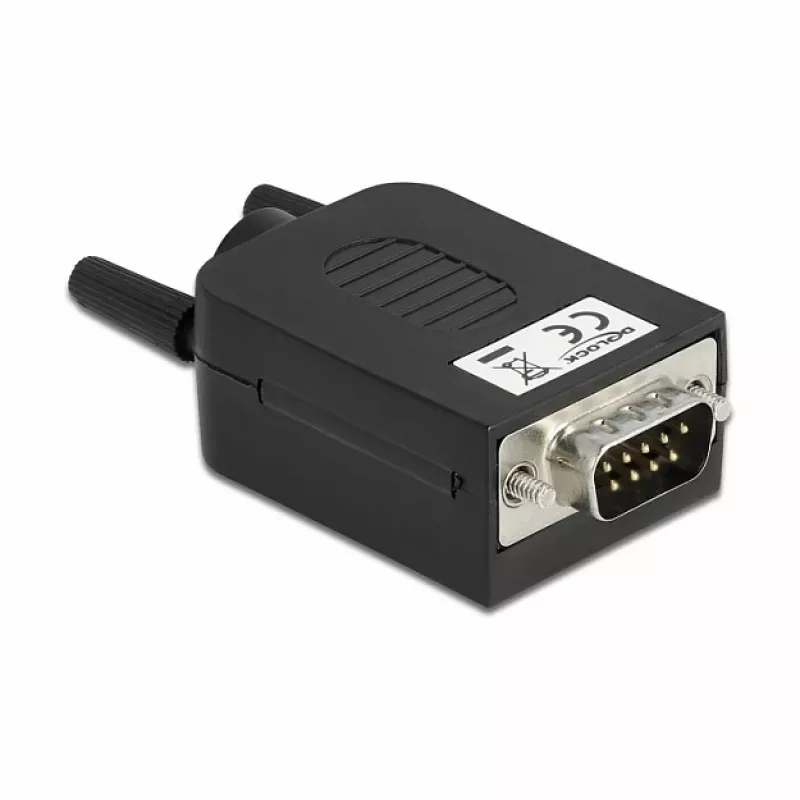

Wire connector DeLOCK 66232 Sub-D 9 10 pin terminal block Black

Wire connector DeLOCK 66232 combines a Sub-D style connector with a 9- and 10-pin terminal block to allow direct connection of bare wires. The compact black plastic enclosure houses the PCB and terminals, providing a protected interface for industrial and hobby applications such as railway modelling. The connector accepts AWG 26–18 conductors and is supplied as a single unit in a polybag.

Advantages

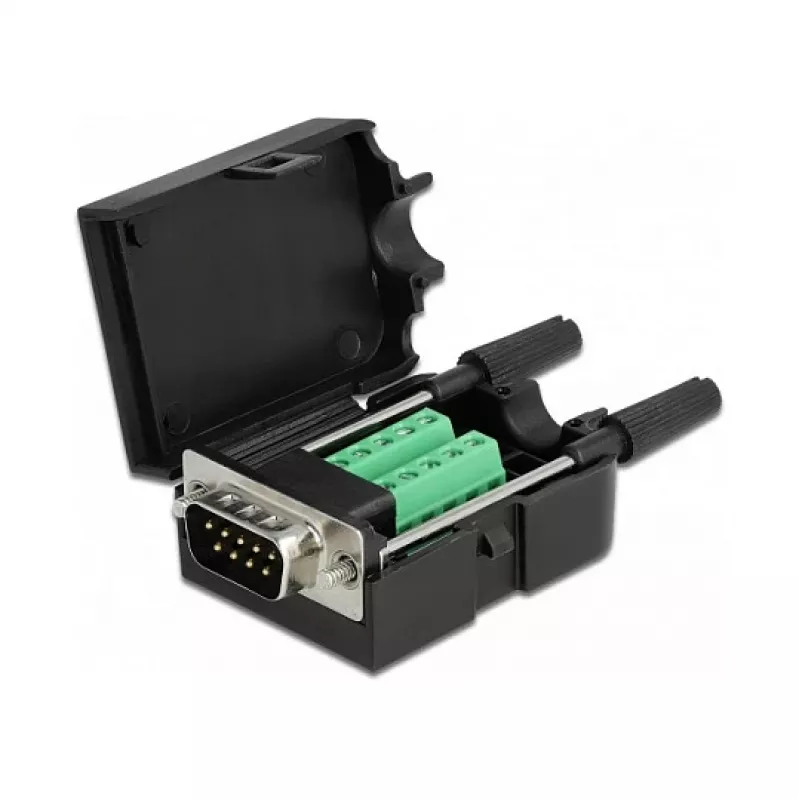

The plastic housing shields the PCB and terminals from dirt and mechanical damage. An integrated strain relief secures the cable inside the enclosure, reducing stress on the wire terminations. Compact dimensions (34.4 × 51.8 × 21 mm) make the unit easy to install in confined spaces.

Suitable for

• Connecting bare wires to Sub-D 9/10 pin interfaces
• Industrial control panels and signal wiring
• Hobby electronics and railway modelling
• Prototyping and small equipment assemblies

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 66232
• EAN: 4043619662326
• Connector type: Sub-D 9 / 10 pin terminal block
• Wire size supported: AWG 26–18
• Colour: Black
• Dimensions (W × D × H): 34.4 × 51.8 × 21 mm
• Packaging: 1 piece per polybag

How to use

Strip the conductor to the appropriate length for the terminal, insert the bare wire into the corresponding terminal point and secure it using the terminal screws. Route the cable through the enclosure and position it in the integrated strain relief before closing or mounting the connector. Ensure correct pin assignment for the Sub-D 9/10 interface when wiring to external equipment.

Recommendations

Use conductors within the specified AWG 26–18 range and ensure screws are tightened to prevent intermittent connections. Avoid exposing the connector to excessive moisture or mechanical impact despite the protective housing; for harsh environments consider sealed alternatives.
