DeLOCK D-Sub 25 pin female to Terminal Block for DIN rail 51mm x 86mm x 30mm

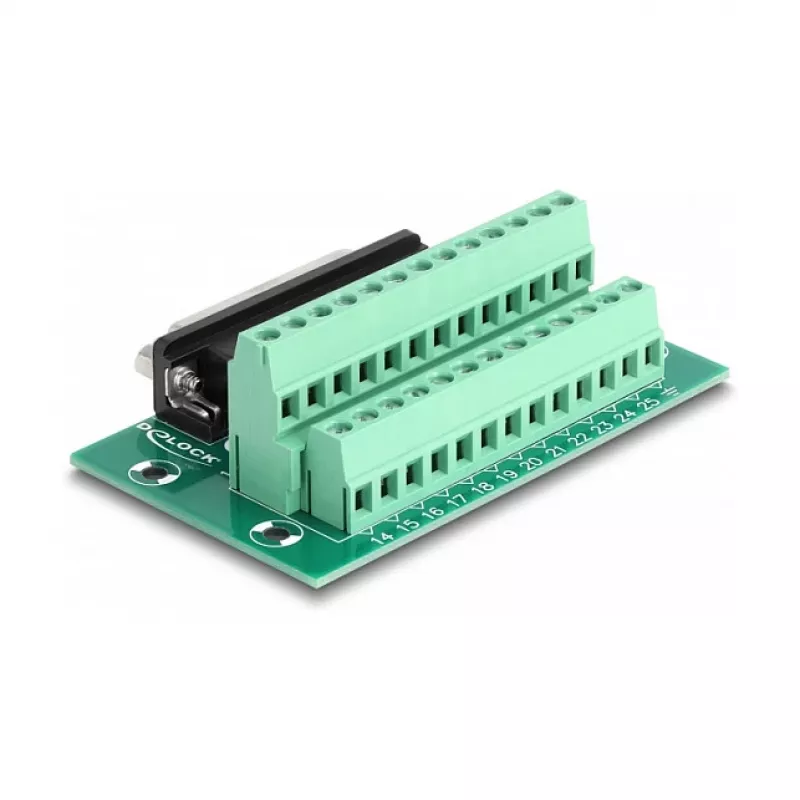

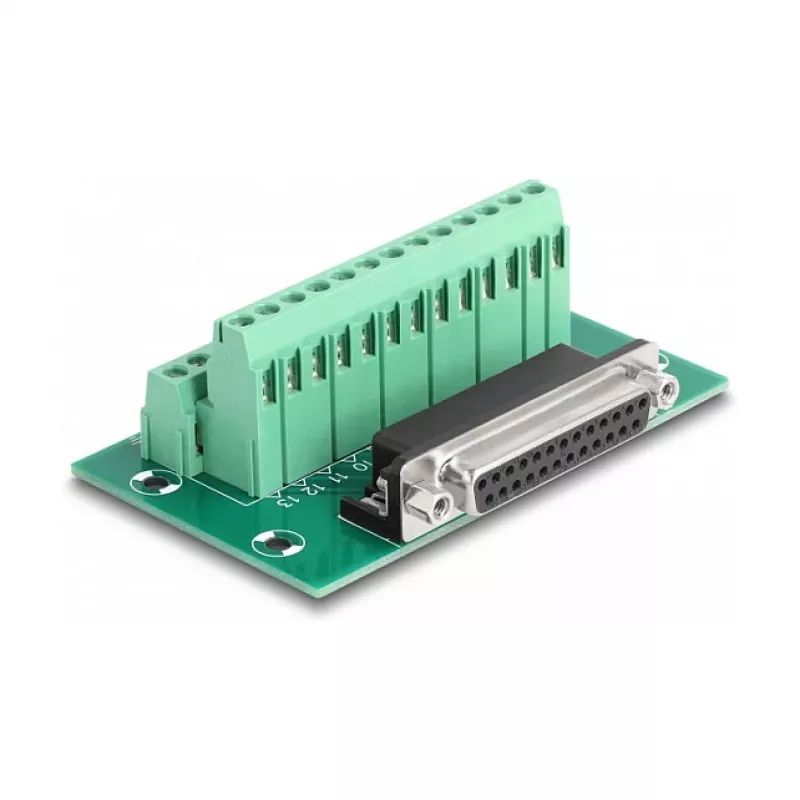

The DeLOCK D-Sub 25 pin female to Terminal Block for DIN rail (51 mm x 86 mm x 30 mm) is an adapter that allows connection of a 25‑pin D‑Sub female interface to a terminal block for stripped wire ends. It is intended for mounting on standard DIN rails and has a green housing. The compact design provides a tidy transition between a D‑Sub connector and wired terminals in control cabinets and industrial installations.

Advantages

The adapter enables easy connection of wires with stripped ends to a D‑Sub 25 pin female interface and supports DIN rail installation using the supplied clips. Its compact dimensions (51 x 86 x 30 mm) save space in panels, and the terminal block format helps organise multiple conductor connections. The green colour of the housing allows quick visual identification.

Suitable for

• Connecting D‑Sub 25 pin female connectors to field wiring
• Wiring and signal distribution in control cabinets and PLC racks
• Industrial and automation installations requiring DIN rail mounting

Key specifications

• Type: D‑Sub 25 pin female to terminal block adapter

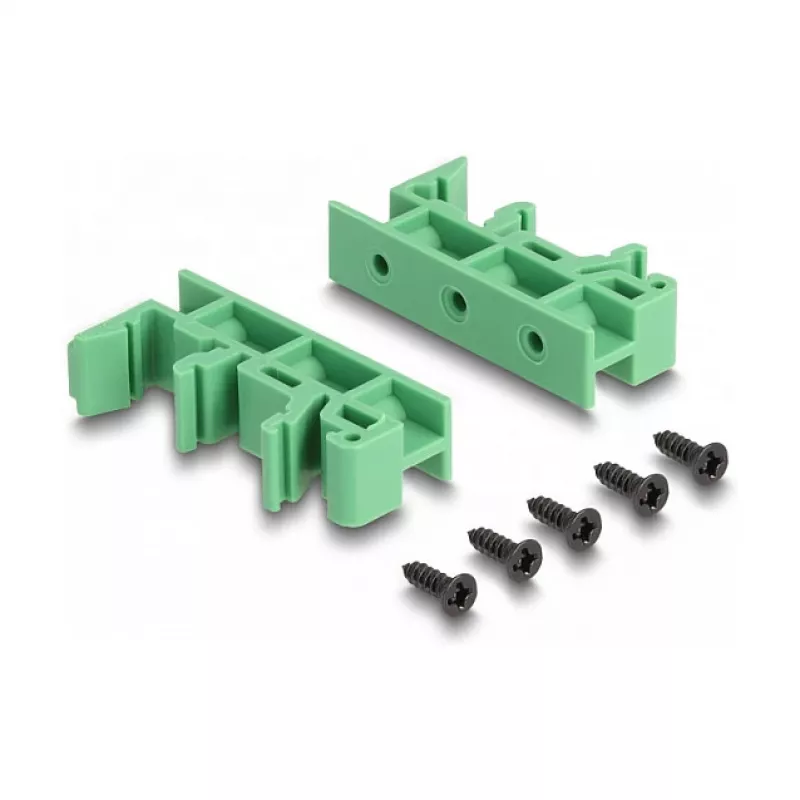

• Mounting: DIN rail (clips for 15 mm and 35 mm rails included)
• Dimensions: 51 mm (W) x 86 mm (D) x 30 mm (H)
• Colour: Green
• Brand / MPN / EAN: DELOCK / 66912 / 4043619669127

How to use

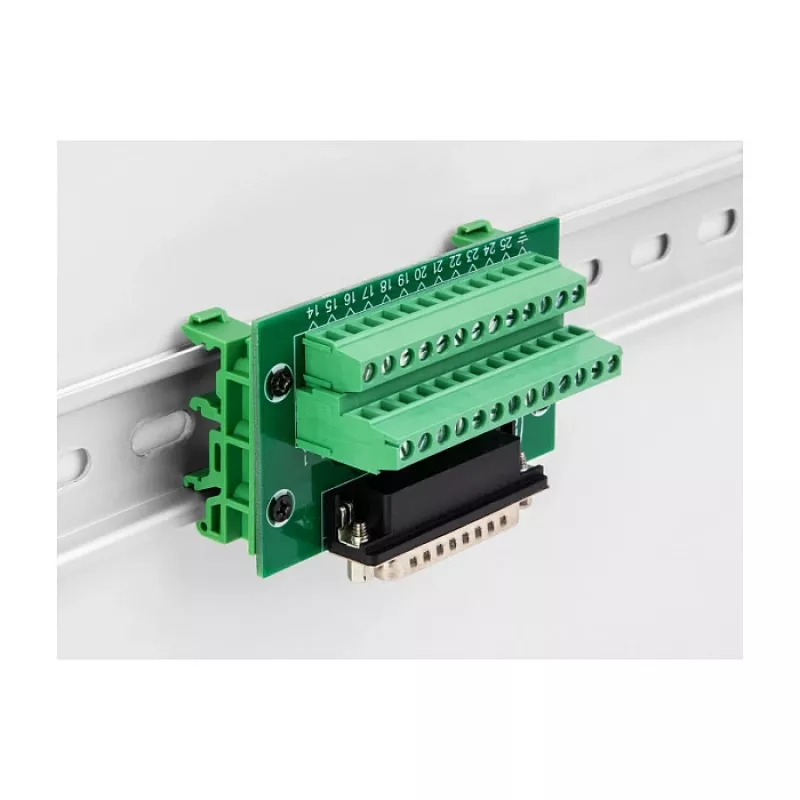

Attach the supplied clips to the adapter and snap it onto a suitable 15 mm or 35 mm DIN rail. Strip the ends of the wires to the appropriate length and insert them into the terminal block connections corresponding to the D‑Sub pinout. Secure the conductors according to the terminal type (screw/press) to ensure reliable contact. Connect the D‑Sub plug to the adapter’s 25‑pin female connector to complete the connection.

Recommendations

Check the required wire cross‑section and tighten terminals to the manufacturer’s torque specifications. Ensure correct pin mapping between the D‑Sub connector and terminal block before powering the system.
