DeLOCK D-Sub 9 pin male to Terminal Block for DIN rail Width 51 mm Depth 58 mm Height 30 mm

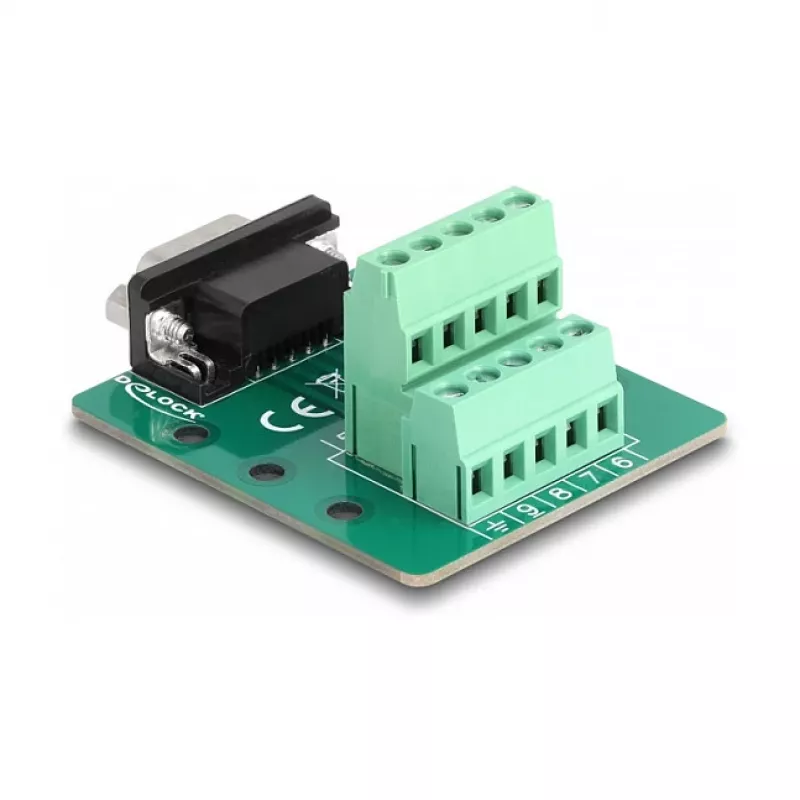

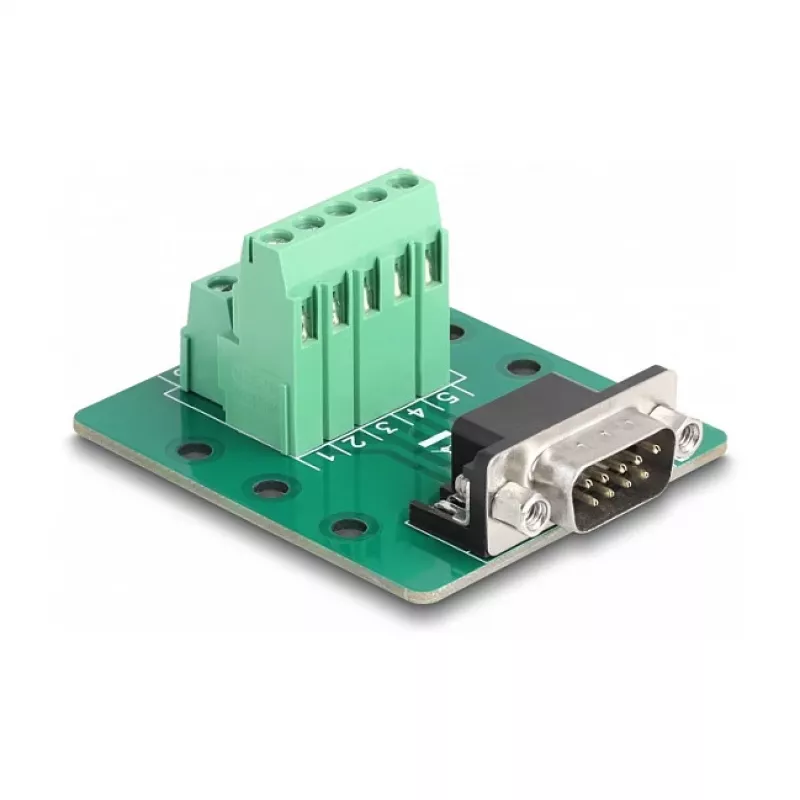

The DeLOCK D-Sub 9 pin male to Terminal Block is an adapter that converts a D-Sub 9 male connector to a removable terminal block for connecting wires with stripped ends. It is designed for mounting on DIN rails and has a compact enclosure in green with dimensions 51 mm (width) × 58 mm (depth) × 30 mm (height).

Advantages

The adapter enables a secure, solderless connection between D-Sub 9 signals and individual stranded or solid wires. Its DIN rail mounting clips are included for easy installation on 15 mm or 35 mm rails. The compact form factor saves panel space and the green housing provides visual identification.

Suitable for

• Connecting D-Sub 9 signal lines to field wiring
• Industrial control cabinets and automation equipment
• Prototyping and test setups where removable wire terminations are required
• Environments requiring DIN rail mounting (15 mm or 35 mm)

Key specifications

• Connector type: D-Sub 9 pin male to terminal block

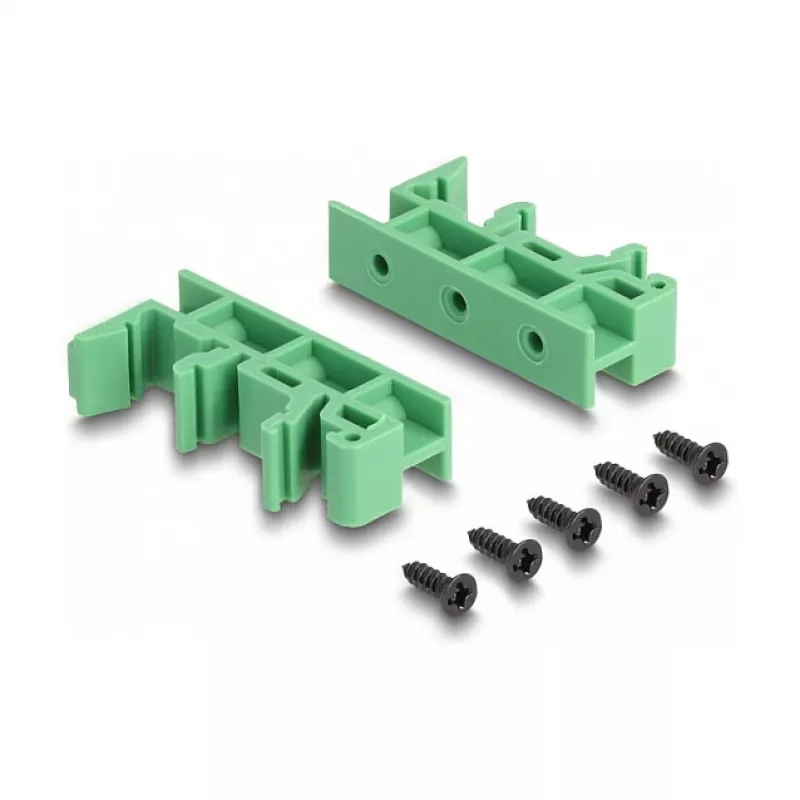

• Mounting: DIN rail (clips for 15 mm and 35 mm included)
• Dimensions: 51 mm (W) × 58 mm (D) × 30 mm (H)
• Product colour: Green
• Brand: DELOCK, MPN: 66907, EAN: 4043619669073

How to use

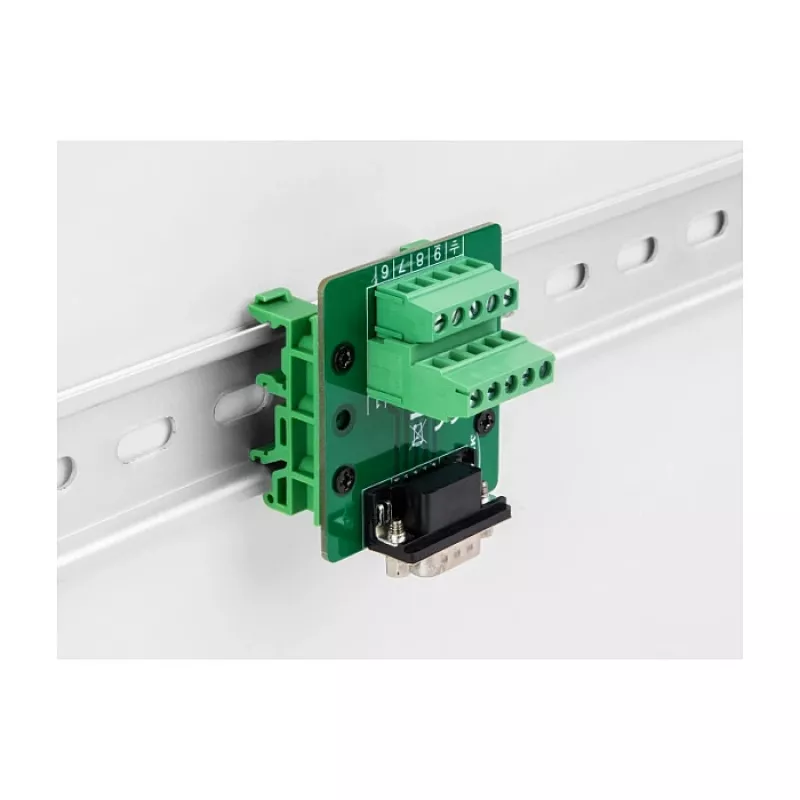

Attach the included clips to the adapter and snap it onto a compatible 15 mm or 35 mm DIN rail. Strip the insulation from the wire ends to the appropriate length, insert the conductors into the terminal block positions corresponding to the D-Sub pinout, and secure them according to the terminal block fastening method. Connect the D-Sub 9 male plug to the mating connector on your device to complete the circuit.

Recommendations

Verify wire cross-section and terminal tightening torque suitable for the terminal block type before installation; ensure power is removed from circuits while wiring to prevent damage or injury.
