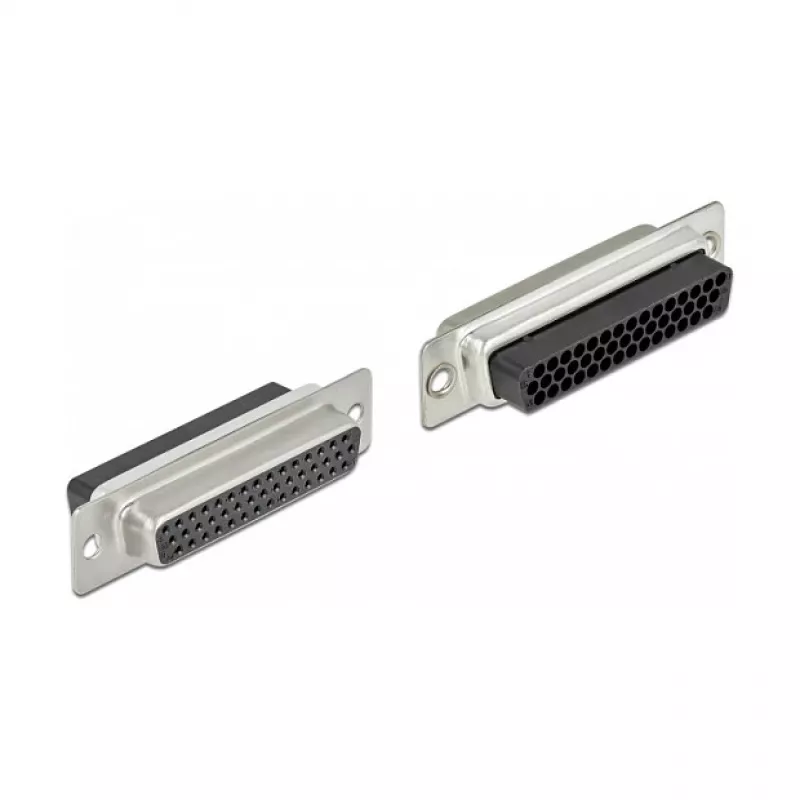

D-Sub HD 44 pin crimp female to 2 x RJ45 female DeLOCK 66836

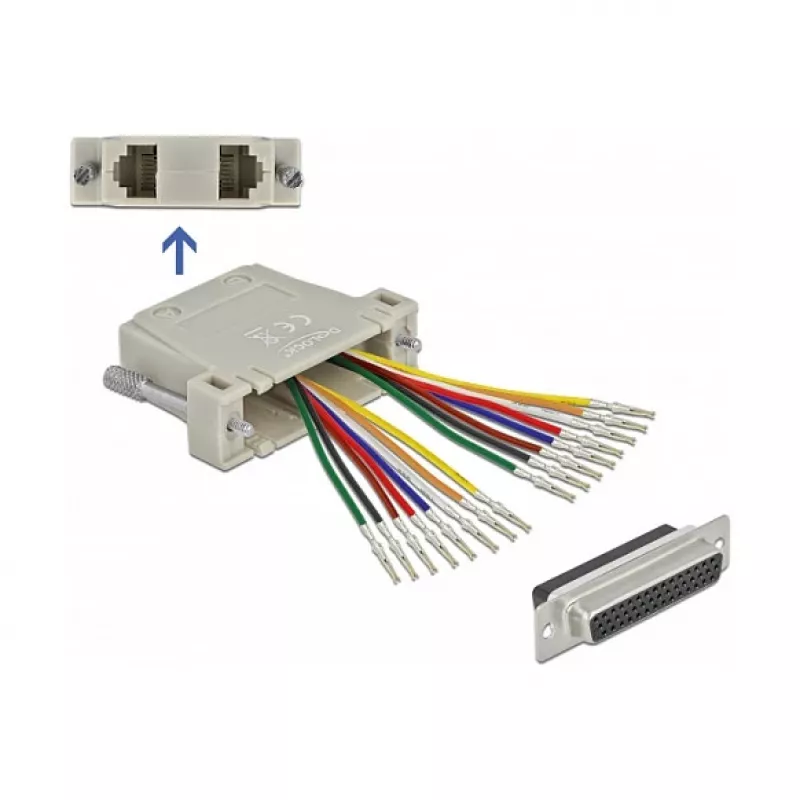

The DeLOCK D-Sub HD 44 pin crimp female to 2 x RJ45 female adapter enables expansion of a serial or parallel interface into two RJ45 connections using two network cables. The adapter features a beige housing and is supplied with an assembly kit; individual pin assignment is possible by inserting and locking the cable ends into the connector holes.

Advantages

This adapter supports flexible pin assignment to match specific wiring requirements, saves space by combining a 44‑pin D‑Sub interface into two RJ45 ports and includes an assembly kit for on‑site installation. The robust beige housing provides a standardized, durable connection point for network cables.

Suitable for

• Expanding a D-Sub HD 44‑pin interface into two RJ45 network connections
• Custom wiring or pin reconfiguration using network patch cables
• Network or control applications that require converting a multi‑pin connector to RJ45 ports

Key specifications

• Connector 1: D-Sub 44 pin (female, crimp)
• Connector 2: 2 x RJ-45 (female)
• Product colour: Beige
• Brand: DELOCK
• Manufacturer part number (MPN): 66836
• EAN: 4043619668366

How to use

Attach the adapter to the device's D-Sub HD 44‑pin interface. Prepare two RJ45 cables with the required pinout and insert each cable end into the corresponding RJ45 female hole on the adapter until it locks into the housing. Verify the pin assignment and tighten any fasteners as needed. Follow the supplied assembly kit instructions for secure mounting and strain relief.

Recommendations

Use compatible RJ45 cables and verify the pinout before connecting equipment; ensure the adapter is mounted securely and avoid excessive strain on the cables to maintain reliable connections.
