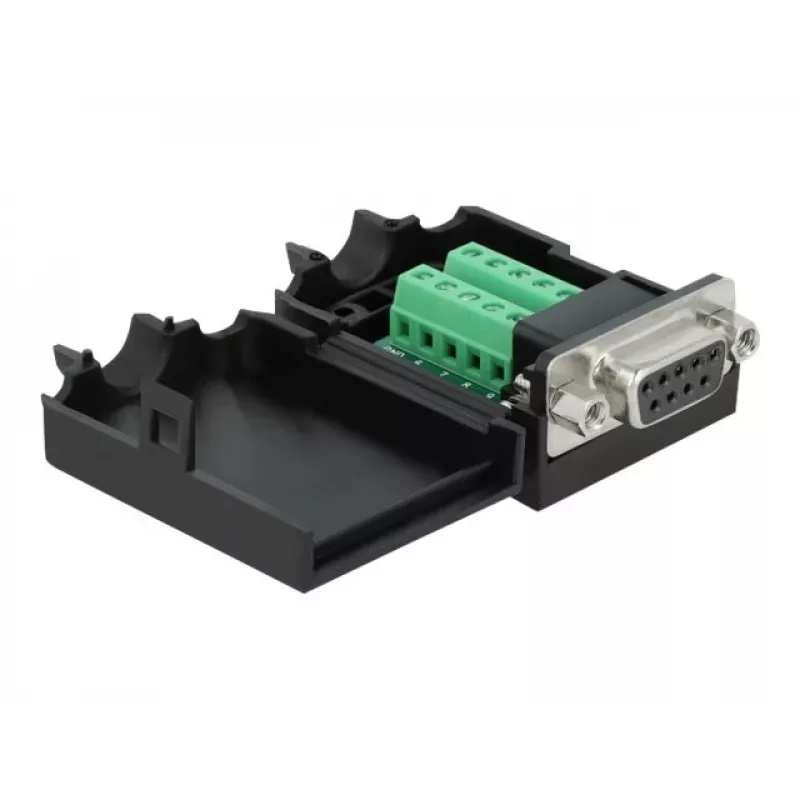

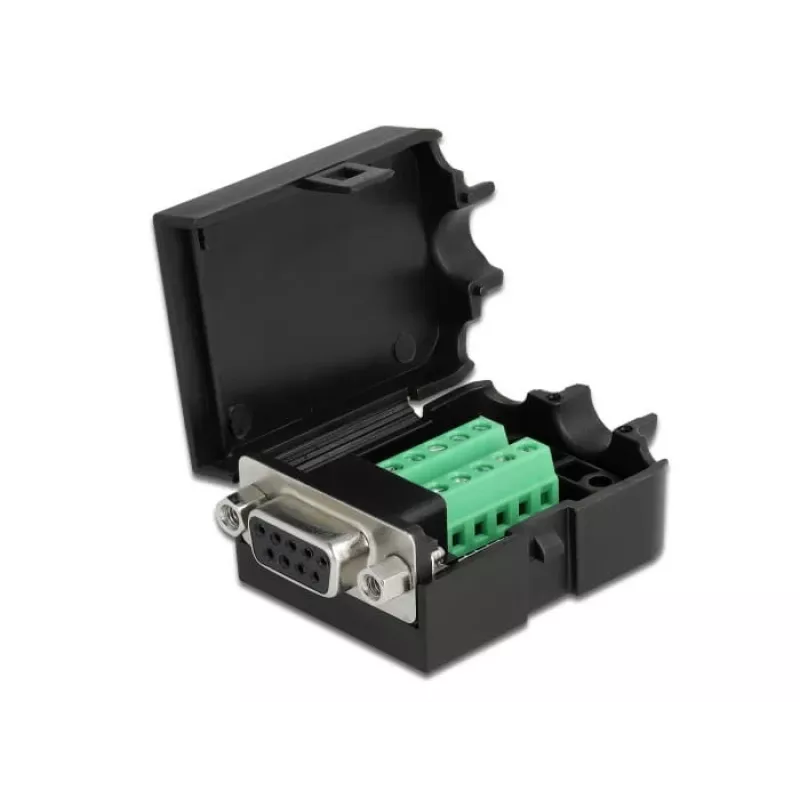

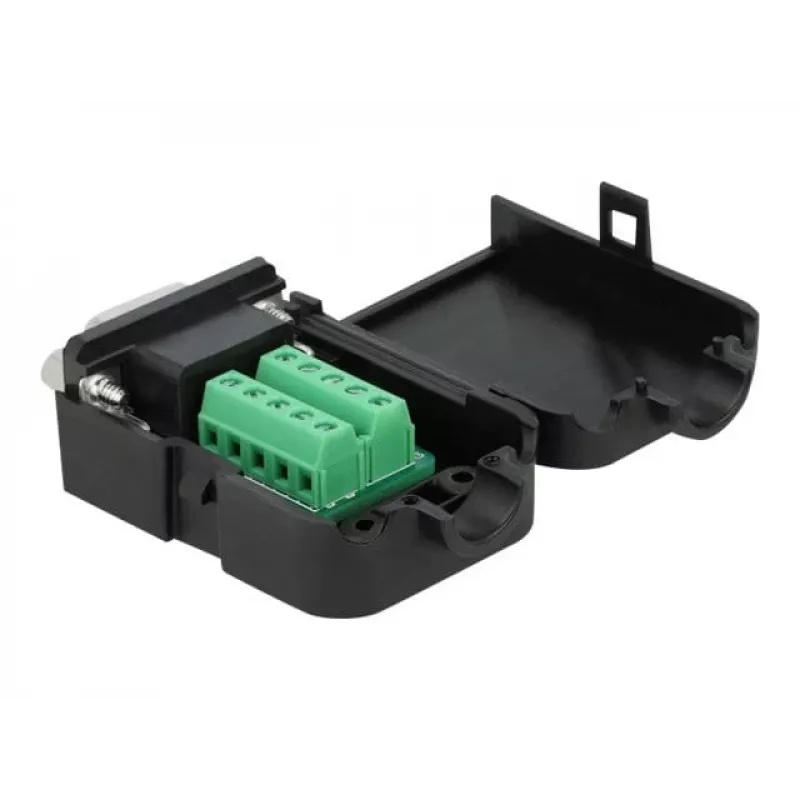

Wire connector DeLOCK 66265 Sub-D 9 10 pin terminal block Black

The DeLOCK 66265 wire connector provides a compact Sub-D compatible terminal block with 9 and 10 pin options for connecting bare wires. Housed in a black plastic enclosure, the adapter protects the PCB from dirt and mechanical damage while keeping installation space to a minimum. The connector accepts AWG 26–18 conductors and is supplied as a single piece in a polybag.

Advantages

The plastic enclosure offers protection against dirt and accidental impact, and the integrated strain relief secures the cable inside the housing to reduce stress on solder joints and terminals. Its small dimensions make it suitable for installations with limited space, and support for two Sub-D pin configurations increases wiring flexibility.

Suitable for

• Industry applications requiring Sub-D terminal connections
• Hobby projects such as model railways
• Compact electronics and control panels
• Prototyping and DIY wiring tasks

Key specifications

• Brand: DELOCK
• Model / MPN: 66265
• EAN: 4043619662654
• Connector type: Sub-D 9 / Sub-D 10 terminal block
• Wire size support: AWG 26–18
• Colour: Black
• Dimensions (W × D × H): 34.4 × 51.8 × 21 mm
• Packaging: 1 piece in polybag

How to use

Strip the insulation from the conductor to the appropriate length for the terminal. Insert the bare wire into the terminal point and secure it according to the terminal screw or clamp mechanism used on the Sub-D block. Route the cable through the enclosure so the integrated strain relief can be positioned around the conductor, then close or fasten the housing to hold the cable in place. Verify each electrical connection for secure contact before powering the circuit.

Recommendations

The connector is intended for low-voltage wiring within the specified AWG range; avoid exceeding the rated wire size and ensure correct polarity and secure fastening. For long-term installations, periodically check the strain relief and terminal tightness to maintain reliable connections.
