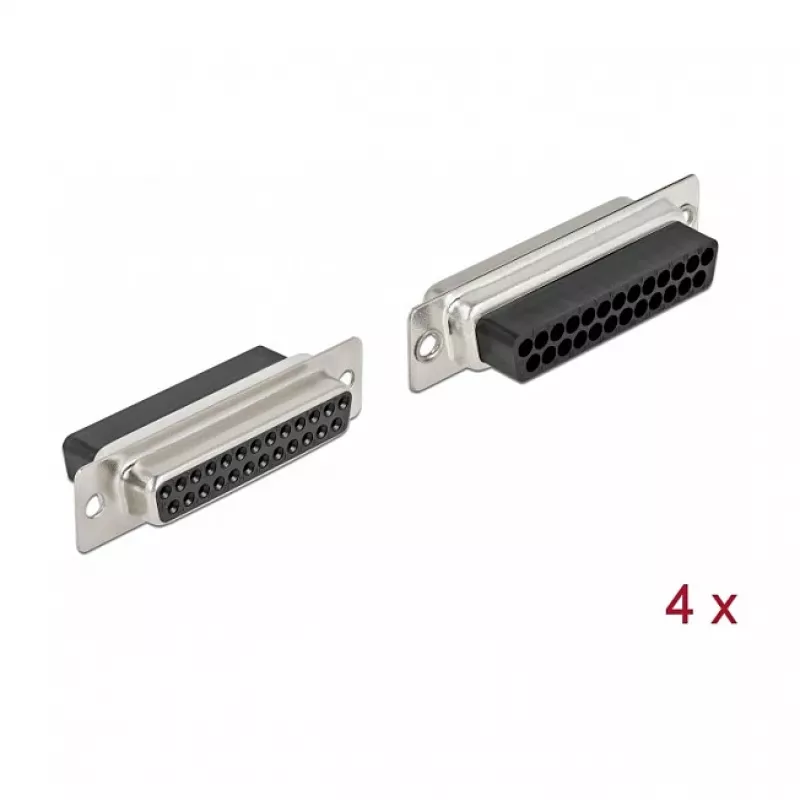

Wire Connector D-Sub 25 pin DeLOCK 66721 Black Silver

The DeLOCK Wire Connector D-Sub 25 pin 66721 is a compact female D-Sub connector designed for reliable signal and data connections. Finished in black and silver, the connector measures 12.5 mm in width, 12.5 mm in height and 53 mm in depth. Supplied in a pack of four pieces, this D-Sub 25 connector is suitable for use where a space-saving, easily handled interface is required for connecting devices that use a 25-pin D-Sub female connection.

Advantages

This D-Sub 25 pin connector offers a compact form factor and a robust housing finish in black and silver for easy identification and handling. The female connector design provides standard compatibility with 25-pin male D-Sub plugs and allows stable multiple-connection setups. The small dimensions and lightweight construction make it convenient for installations with limited panel or cable space. Supplied as a set of four, it is convenient for projects requiring multiple connectors or spare parts.

Suitable for

• Connecting peripheral devices that use a 25-pin D-Sub female interface
• Panel or cable assemblies where compact D-Sub connectors are required
• Repair and replacement of existing D-Sub 25 connections
• Small-scale electronics and industrial control systems

Key specifications

• Connector type: D-Sub 25 pin, female
• Quantity: 4 pieces per pack
• Colour: black and silver finish
• Dimensions (W x H x D): 12.5 mm x 12.5 mm x 53 mm
• Application: signal and data connections for 25-pin D-Sub interfaces
• Origin: manufactured in China

How to use

Align the female D-Sub 25 connector with the corresponding male 25-pin plug and gently insert until the connector seats securely. If the connector is mounted in a panel or cable assembly, ensure proper fastening according to the assembly design to prevent strain on the contacts. Verify that the mating connector is compatible and that pins align correctly before applying power or signals. For installations with multiple connectors, keep consistent orientation and cable management to maintain accessibility and reduce the risk of damage.

Recommendations

Use appropriate tools for mounting and fastening to avoid deforming the connector housing. Avoid excessive force when mating connectors and inspect contacts periodically for corrosion or debris. Store unused connectors in a dry environment to preserve the metal finish and contact integrity.
