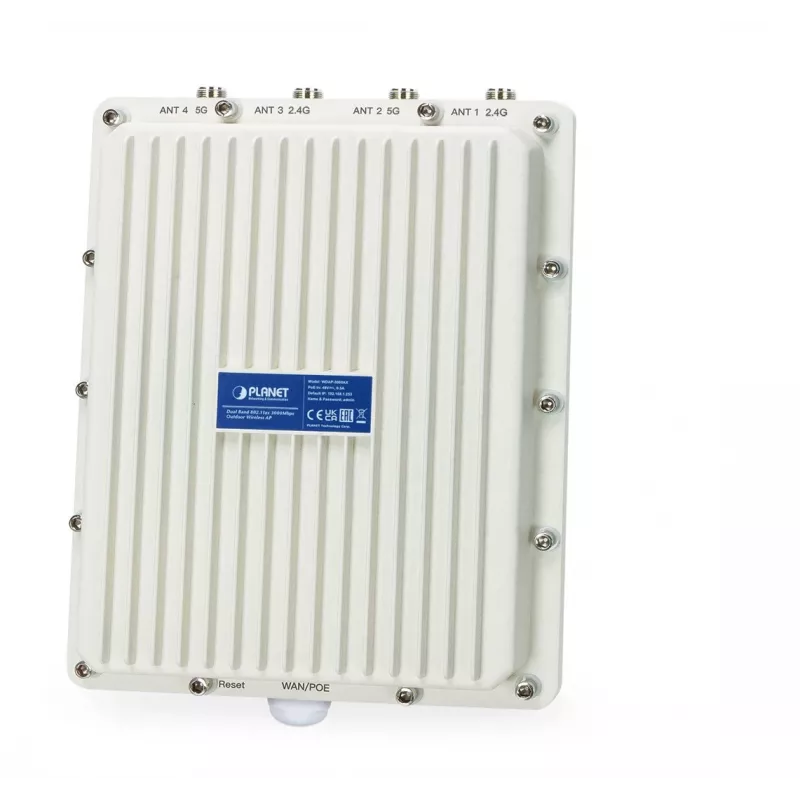

Wi‑Fi 6 Access Point PLANET WDAP-3000AX — Dual‑Band 2.4/5 GHz, 2400 Mbps, PoE, IP67 Aluminium

The PLANET WDAP-3000AX is an outdoor Wi‑Fi 6 access point delivering dual‑band wireless connectivity with up to 600 Mbps on 2.4 GHz and up to 2400 Mbps on 5 GHz. Housed in a rugged aluminium enclosure rated IP67, the unit is designed for enterprise and industrial outdoor deployments where reliable wireless coverage, PoE power and extended temperature tolerance are required. The device supports external N-type antenna connectors, WPA3‑Personal security, MIMO operation and management features such as VLAN and syslog.

Advantages

The weatherproof aluminium housing and IP67 protection enable continuous operation in harsh environments from -40 °C to 70 °C. Dual‑band Wi‑Fi 6 technology provides higher throughput on the 5 GHz band while maintaining legacy device support on 2.4 GHz. Power over Ethernet simplifies outdoor installation by allowing both data and power over a single cable. External N-type antenna connectors allow flexible antenna selection and placement to optimize coverage. Integrated features such as VLAN and syslog support help with network segmentation and centralized monitoring.

Suitable for

• Outdoor enterprise Wi‑Fi coverage for campuses, parks and corporate grounds
• Industrial sites and manufacturing yards requiring rugged wireless equipment
• Public Wi‑Fi hotspots and outdoor venues
• Point‑to‑multipoint wireless deployments using external antennas

Key specifications

• Wireless bands: Dual‑band 2.4 GHz and 5 GHz
• Maximum data rate: 600 Mbps (2.4 GHz) and 2400 Mbps (5 GHz)
• Wi‑Fi standard: Wi‑Fi 6 (802.11ax) capability implied by product class
• Antenna: External, N‑type connectors for user‑supplied antennas
• MIMO support for improved multi‑client performance
• Power: Power over Ethernet (PoE) for combined data and power delivery
• Security: WPA3‑Personal
• Management: VLAN and syslog support for segmentation and logging
• Enclosure: Aluminium housing with IP67 ingress protection
• Operating environment: -40 °C to 70 °C; relative humidity 10–90% in operation
• Dimensions and weight: 295 mm (H) × 231 mm (W) × 80 mm (D); 2.53 kg

How to use

Install the access point on a stable outdoor structure using appropriate mounting hardware and connect an approved N‑type external antenna to suit the site requirements. Feed a PoE‑enabled Ethernet cable to the unit to provide both power and network connectivity; ensure the PoE source meets the device's power requirements. Configure wireless SSIDs, security (WPA3‑Personal) and VLAN settings through the device management interface, and enable syslog to forward event logs to a centralized server for monitoring. Place the antenna and align orientation to achieve optimal signal strength and coverage.

Recommendations

For reliable long‑term operation, use marine‑grade or weatherproof N‑type antenna cables and connectors, verify PoE source compatibility, and plan antenna placement to minimize obstructions. Regularly monitor syslog output and firmware updates to maintain security and performance.
