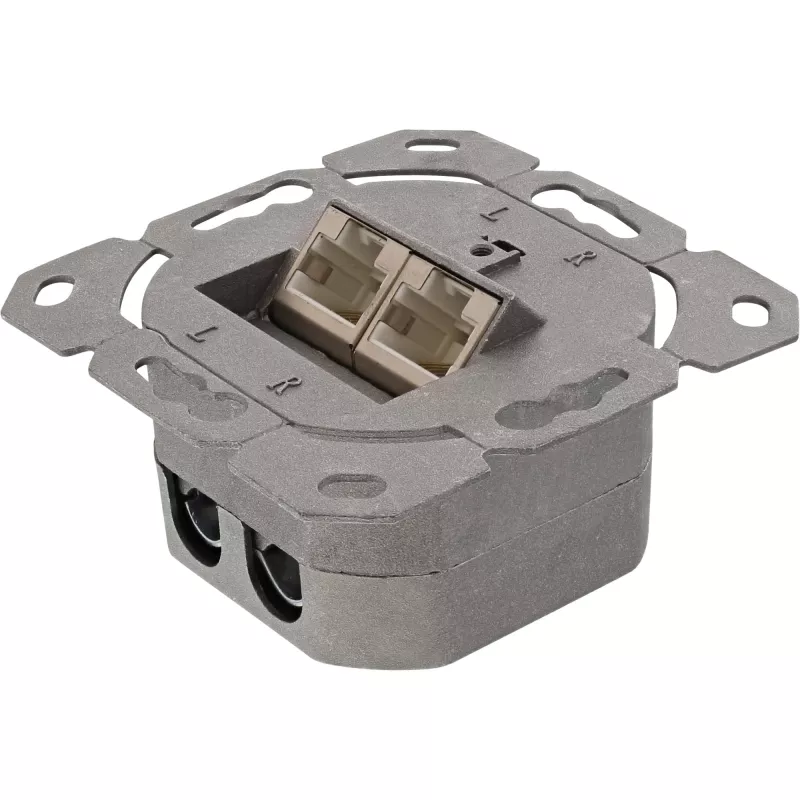

Wall Outlet Box surface or concealed mount 2x RJ45 vertical InLine 75602K

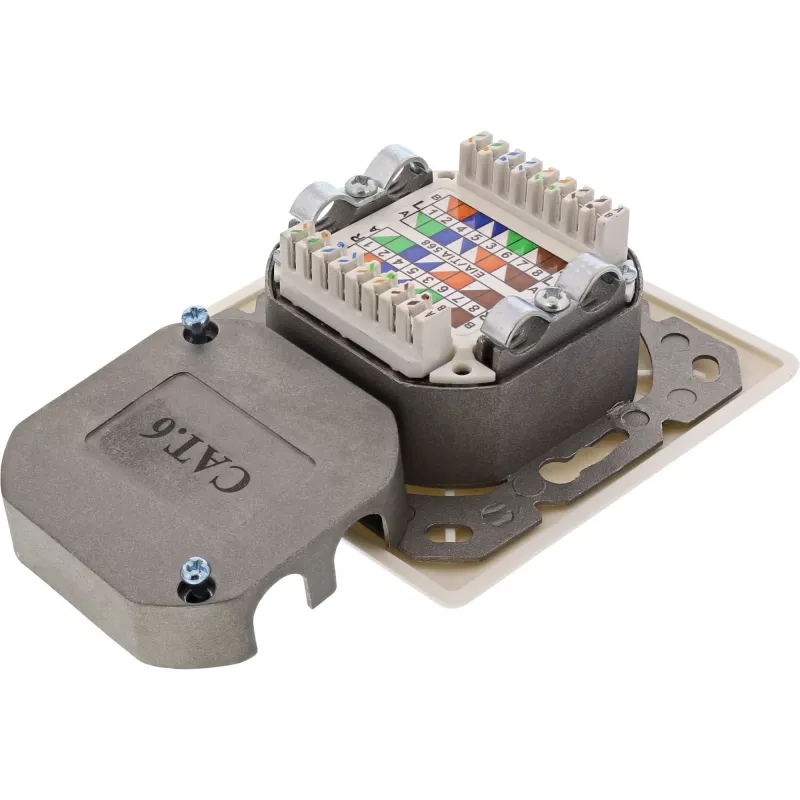

The InLine Wall Outlet Box Cat.6 is a shielded connection box with two vertical RJ45 sockets, designed for surface or flush mounting. It includes two LSA connection strips with eight clamping plates each and is suitable for Cat.6 network cabling where a compact, protected termination point is required.

Advantages

The completely shielded metal box reduces electromagnetic interference and supports reliable data transmission for Cat.6 networks. Dual RJ45 ports provide two independent network terminations in a single outlet. The presence of LSA connection strips with 8 clamping plates per strip enables secure, tool-compatible pair termination and simple wiring.

Suitable for

Key specifications

How to use

Install the outlet box at the desired location either on the wall surface or recessed in a flush box. Route the Cat.6 cable to the box, prepare cable pairs according to standard wiring scheme, and terminate each pair onto the LSA connection strips using an appropriate punch-down tool. After termination, mount the cover plate and connect RJ45 patch cords into the vertical sockets to establish network links.

Recommendations

For best results use Cat.6 or higher grade cables and terminate according to local wiring standards. Ensure proper grounding of the shielded box and maintain correct pair alignment when punching down to preserve signal integrity.
