Wall mounted rack Extralink 9U 600x600 Black

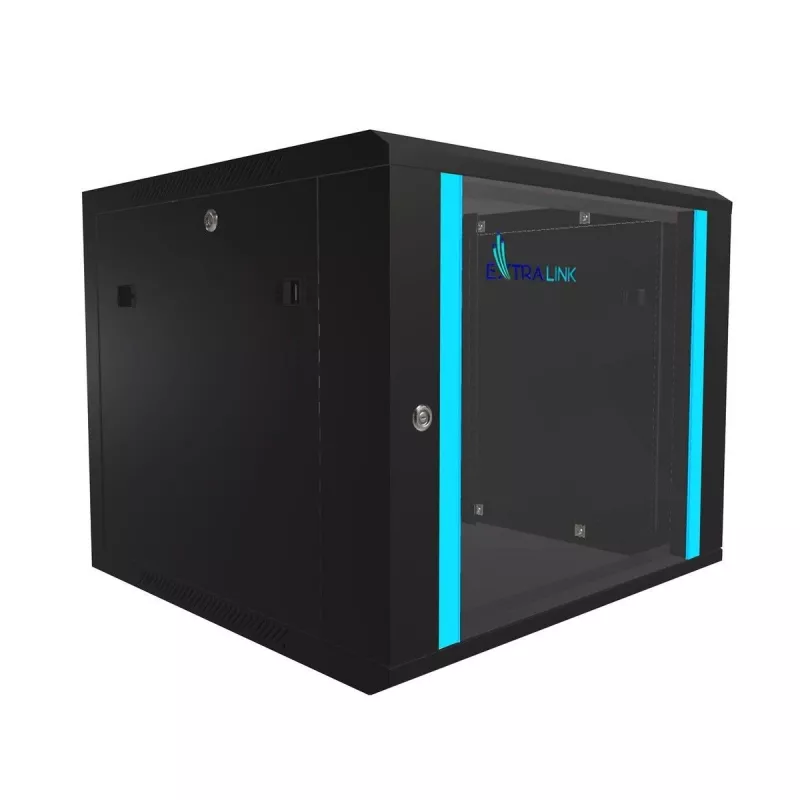

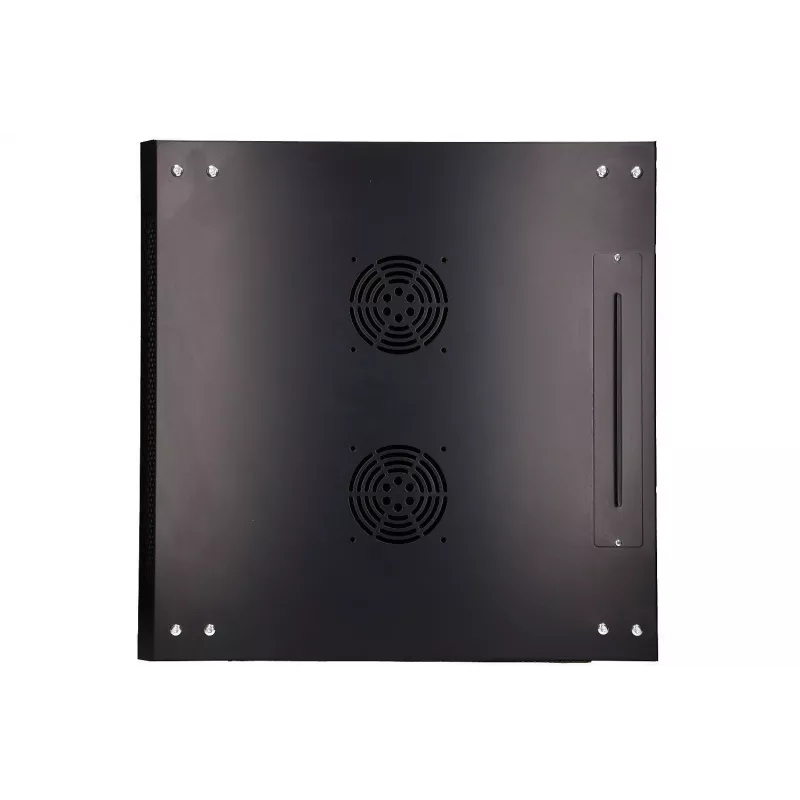

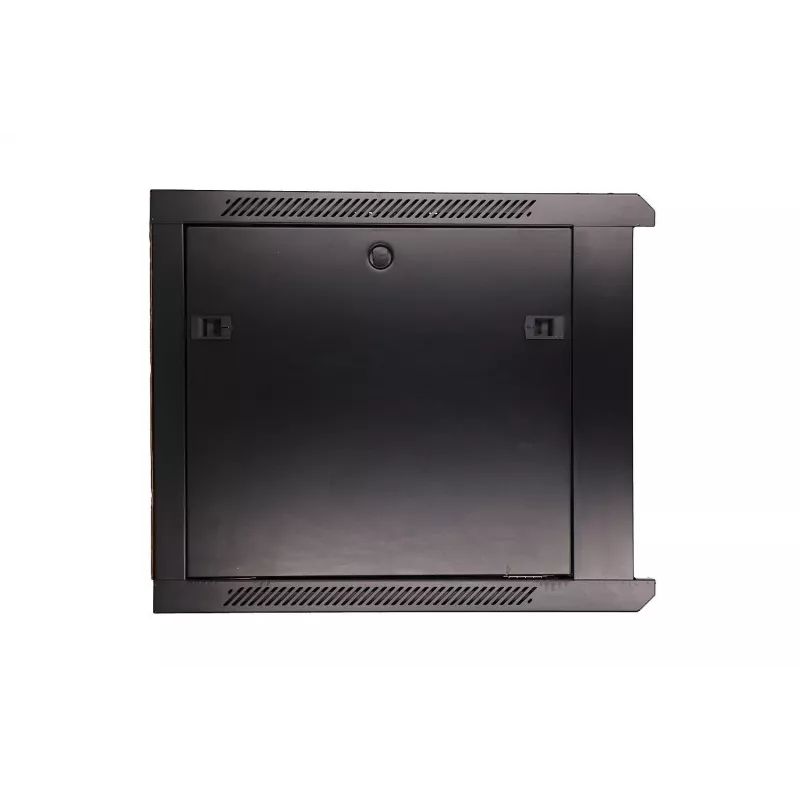

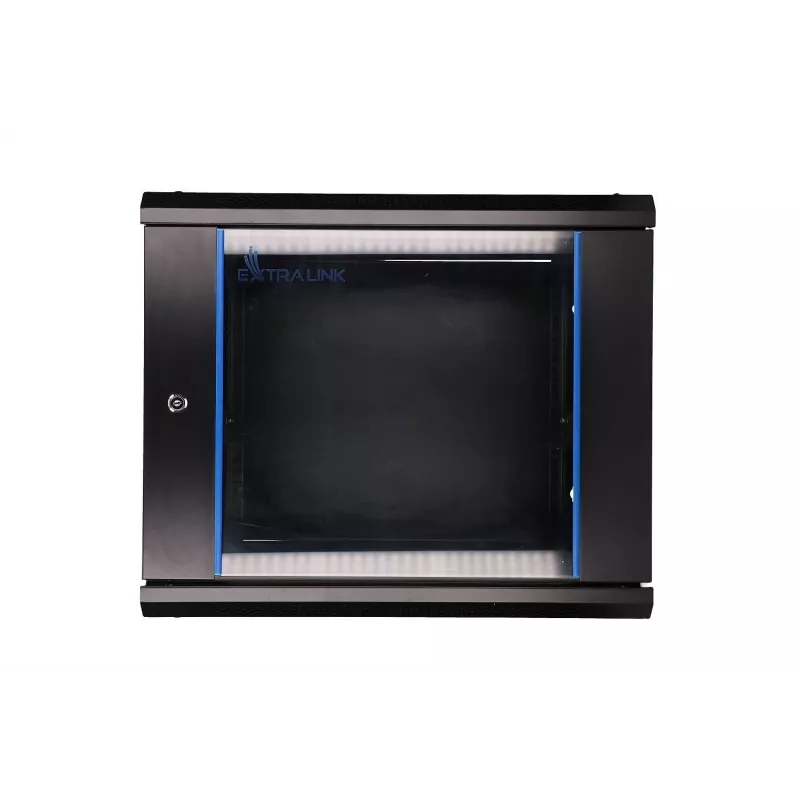

The Extralink wall mounted rack cabinet 9U 600x600 Black is intended for mounting on walls in offices, network server rooms and CCTV control rooms. The cabinet body is made from cold-rolled steel, while the front door contains a tempered glass pane; the door can be configured to open to the left or the right. Vertical rails are marked for a height of 9U and the overall cabinet height is 505 mm. Side panels use snap fasteners for quick removal. Two fan mounting locations are provided on the top panel and there is an additional opening for cable entry. A lock with keys is included.

Advantages

The cabinet provides a compact 9U capacity in a 600x600 mm footprint, allowing efficient use of limited wall space. Cold-rolled steel construction and a tempered glass front give a balance of durability and visibility for installed equipment. Removable side panels and adjustable rails simplify installation and maintenance. Built-in provisions for fans and cable entry improve airflow management. The included lock increases physical security of network devices.

Suitable for

• Small server rooms and network closets
• CCTV control rooms and camera equipment
• Office network installations and patch panels
• Home lab or compact IT deployments

Key specifications

• Rack capacity: 9U
• Height: 505 mm
• Width: 600 mm
• Depth: 600 mm
• Maximum recommended equipment load: 60 kg (manufacturer summary)
• Material: cold-rolled steel body, tempered glass front
• Color: Black
• MPN: EX.3968, EAN: 5902560363968

How to use

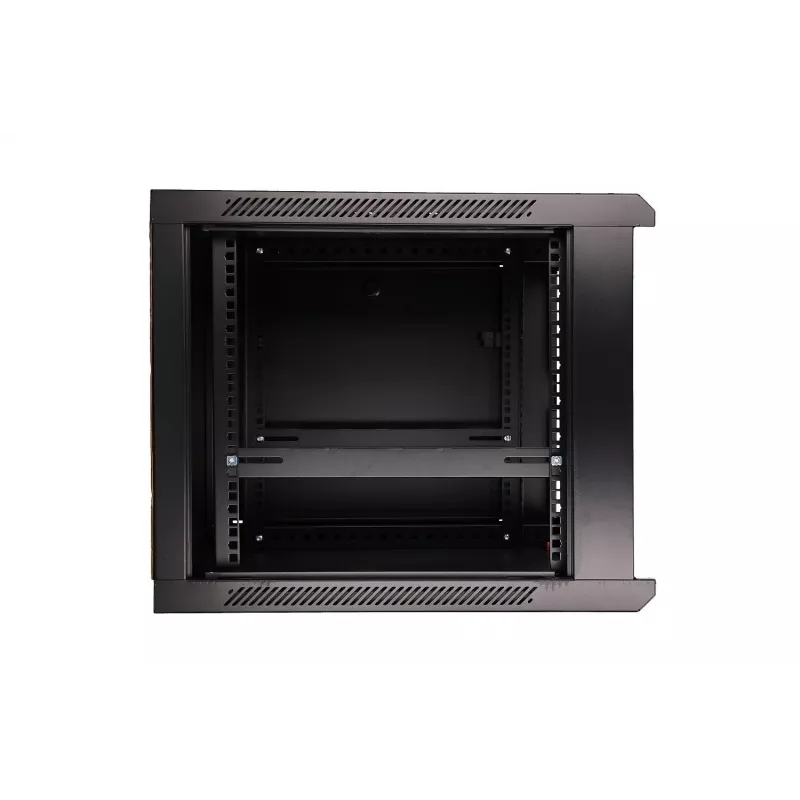

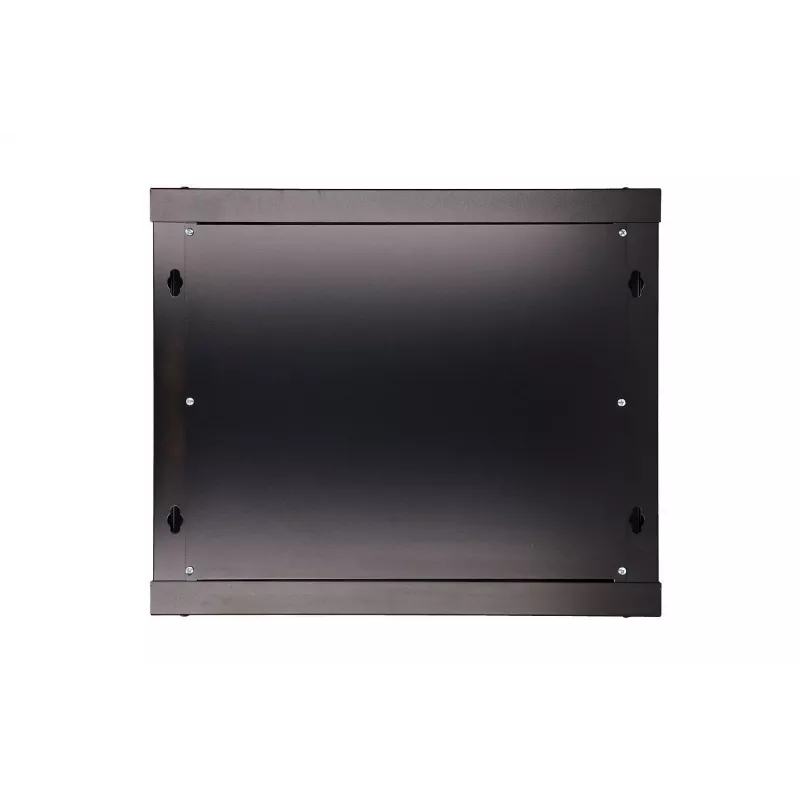

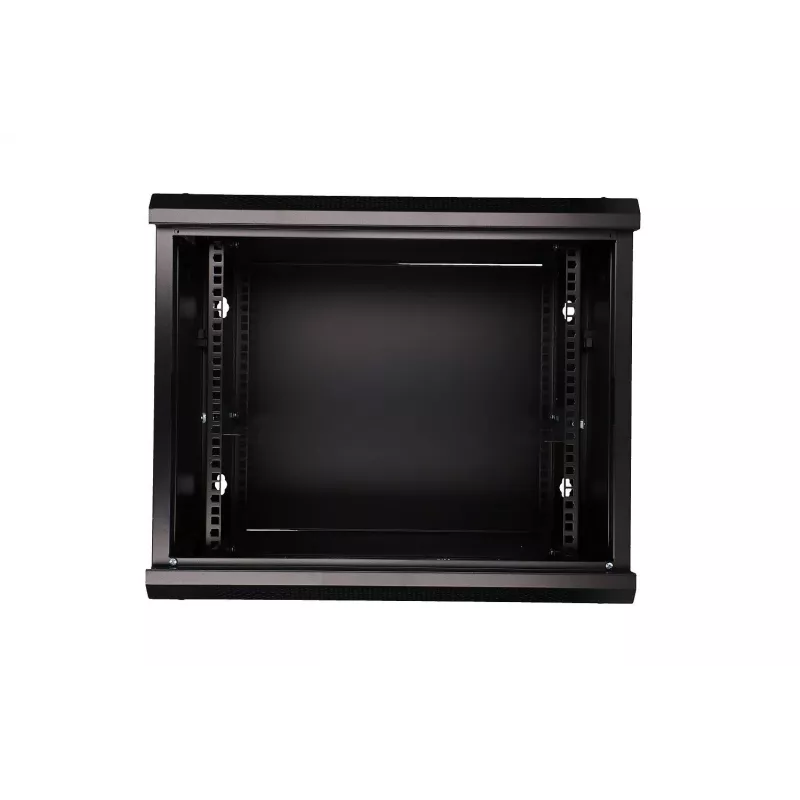

Mount the cabinet securely to a suitable wall structure following local building codes and using appropriate fasteners for the wall type. Install equipment on the vertical 19" rails, aligning devices to the 9U height markings and fastening with compatible rack screws. Use the removable side panels to access cabling and rear connections during installation. Fit fans in the two top mounting locations if additional cooling is required and route cables through the dedicated cable entry opening.

Recommendations

Ensure the mounting surface and fixings support the combined weight of the cabinet and installed equipment. Maintain adequate airflow by installing fans when heat-generating devices are used and avoid overloading the rack beyond the recommended capacity.
