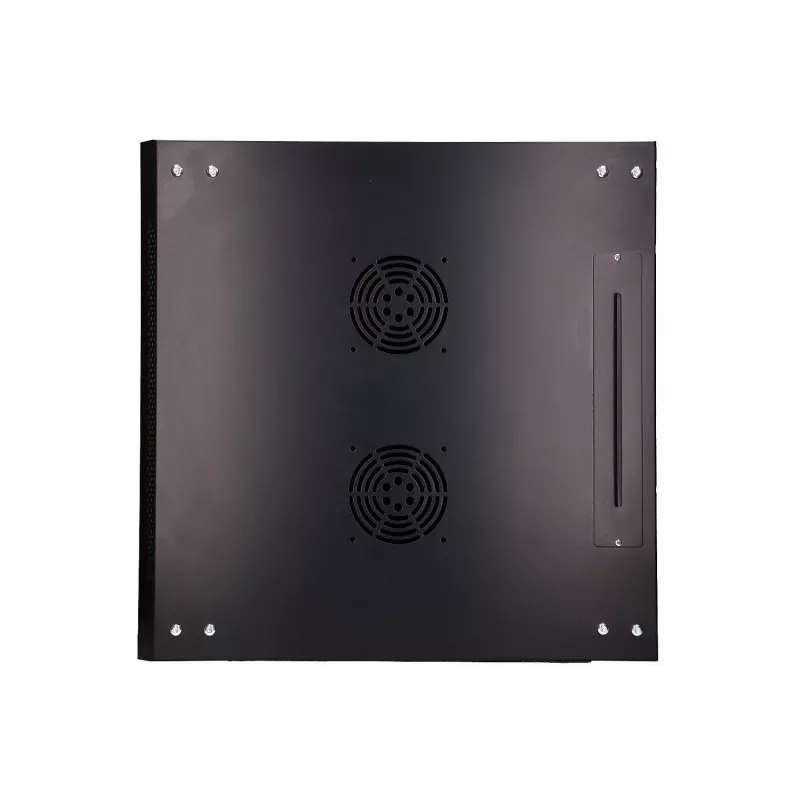

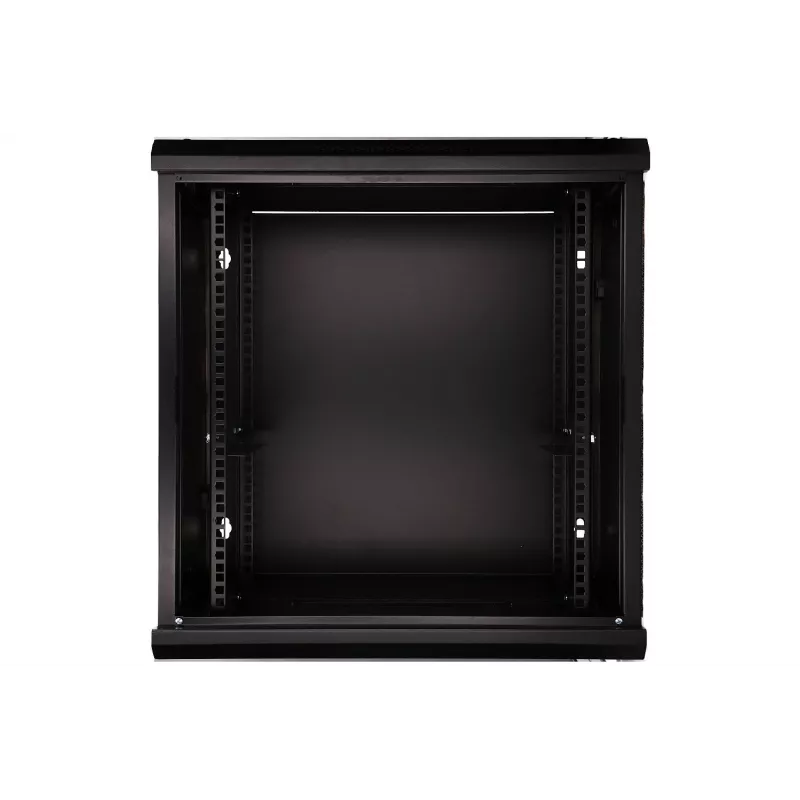

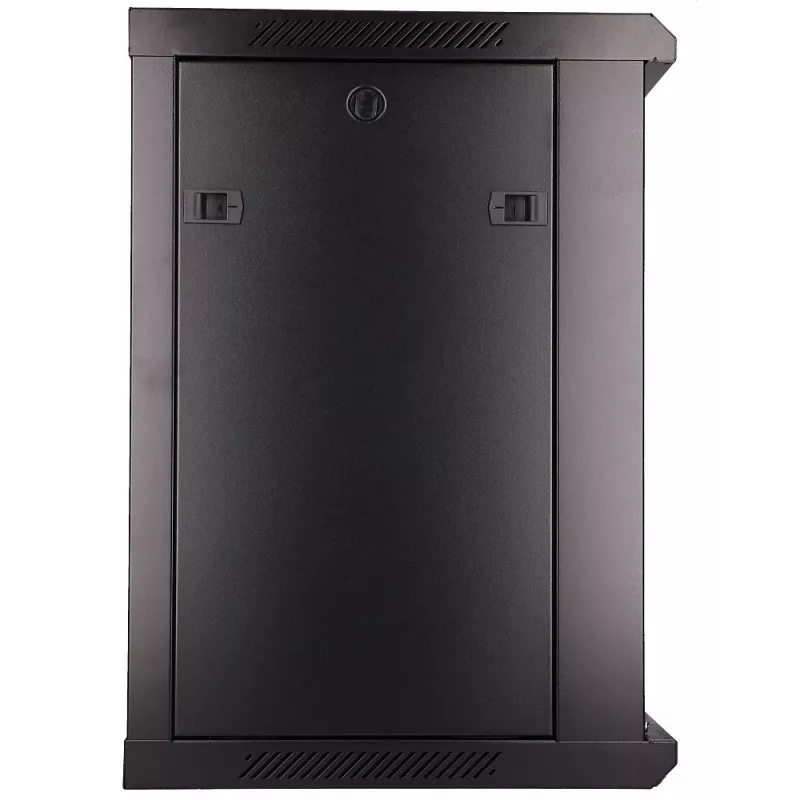

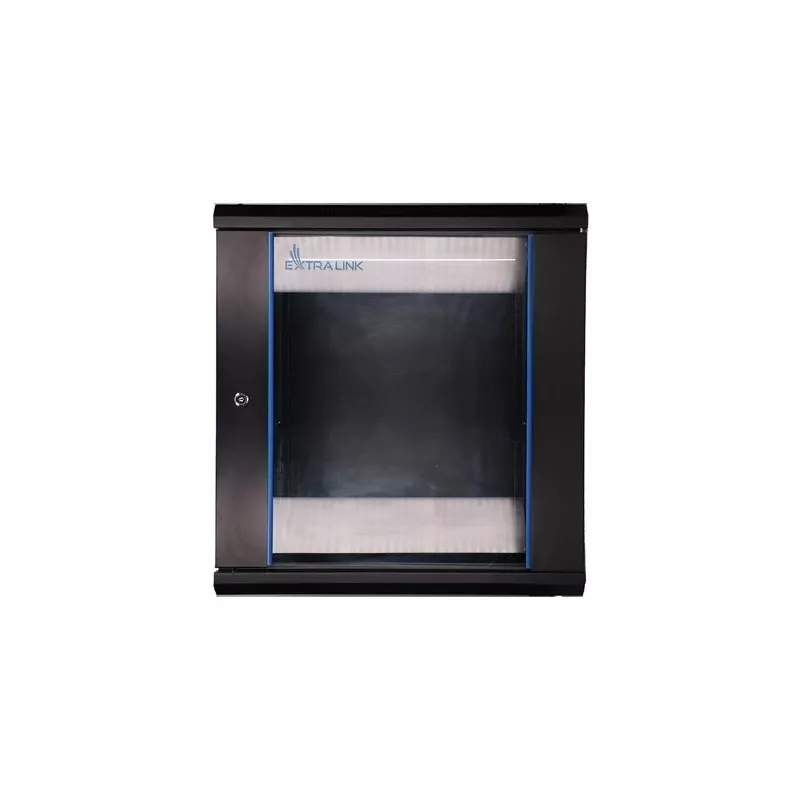

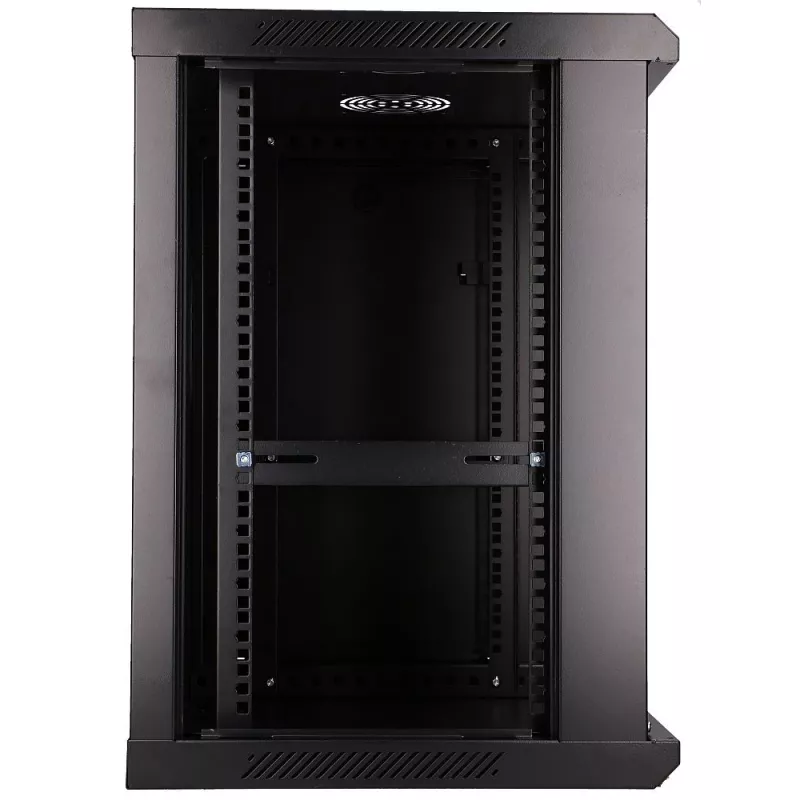

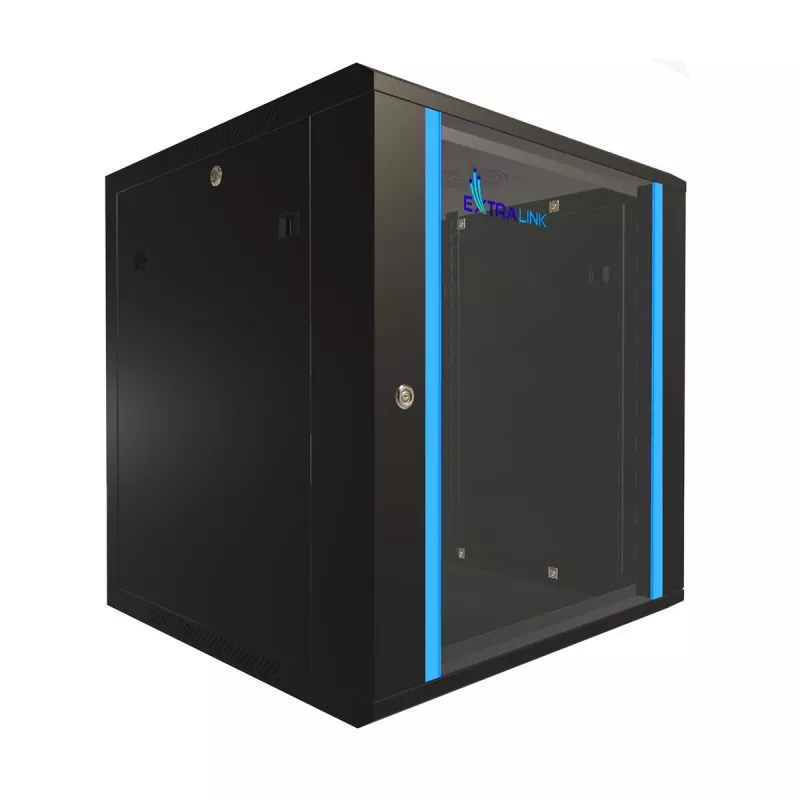

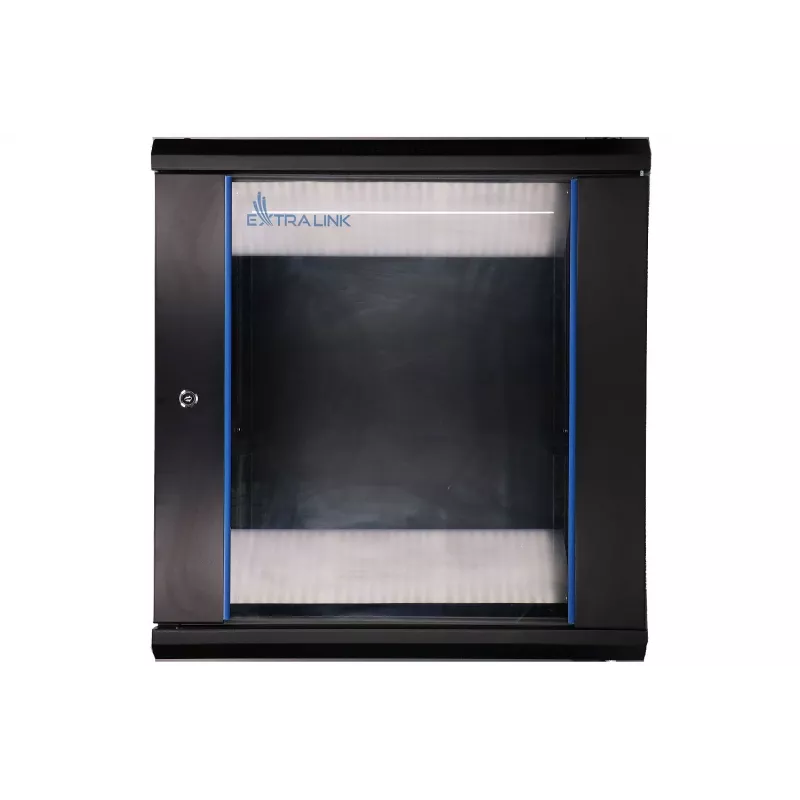

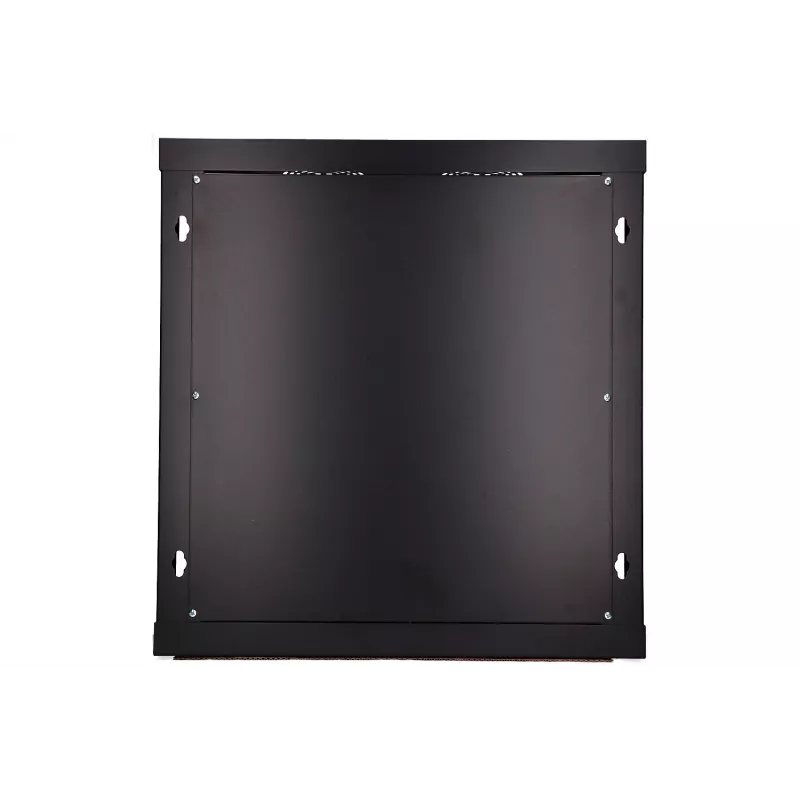

Wall mounted rack Extralink Rackmount cabinet 12U 600x600 Black

The Extralink 12U 600x600 wall-mounted rack cabinet is designed for mounting on walls in offices, network server rooms and CCTV control rooms. Constructed from cold-rolled steel, the cabinet features a front door with a tempered glass panel that can be hinged to open left or right. The rack offers a compact 12U capacity and a total height of 640 mm, providing secure and organized housing for network and surveillance equipment.

Advantages

The cabinet combines a steel enclosure with a tempered glass front for strength and visibility, marked vertical rails for clear 12U placement, removable side panels with snap fasteners for easy access during installation or maintenance, and a ceiling prepared for two fans and additional cable conduit to improve airflow and cable management. A lock with keys is included for basic physical security.

Suitable for

• Wall-mounted network switches and patch panels
• Small server or network appliance installations
• CCTV DVR/NVR and surveillance equipment
• Telecommunications and equipment cabinets in offices

Key specifications

• Rack capacity: 12U
• Height: 640 mm
• Width: 600 mm
• Depth: 600 mm
• Maximum recommended load: 60 kg
• Front door: tempered glass, reversible hinge (left/right)
• Material: cold-rolled steel
• Color: Black
• Security: lock with keys included

How to use

Securely mount the cabinet to a suitable wall using appropriate anchors and fixings for the wall material, ensuring it can support the combined weight of the cabinet and installed equipment. Install devices on the clearly marked 12U vertical rails, route cables through the provided conduit openings and use the removable side panels during cabling or maintenance. If additional cooling is required, fit up to two fans in the roof openings and connect them according to the fan manufacturer’s instructions.

Recommendations

Install the cabinet on a load-bearing wall and verify anchor ratings. Distribute device weight evenly across the rails and avoid exceeding the recommended 60 kg load. Ensure adequate ventilation and, if necessary, add the optional ceiling fans to maintain optimal operating temperatures for installed equipment.
