Wall mounted rack Extralink 6U 600x600 Black

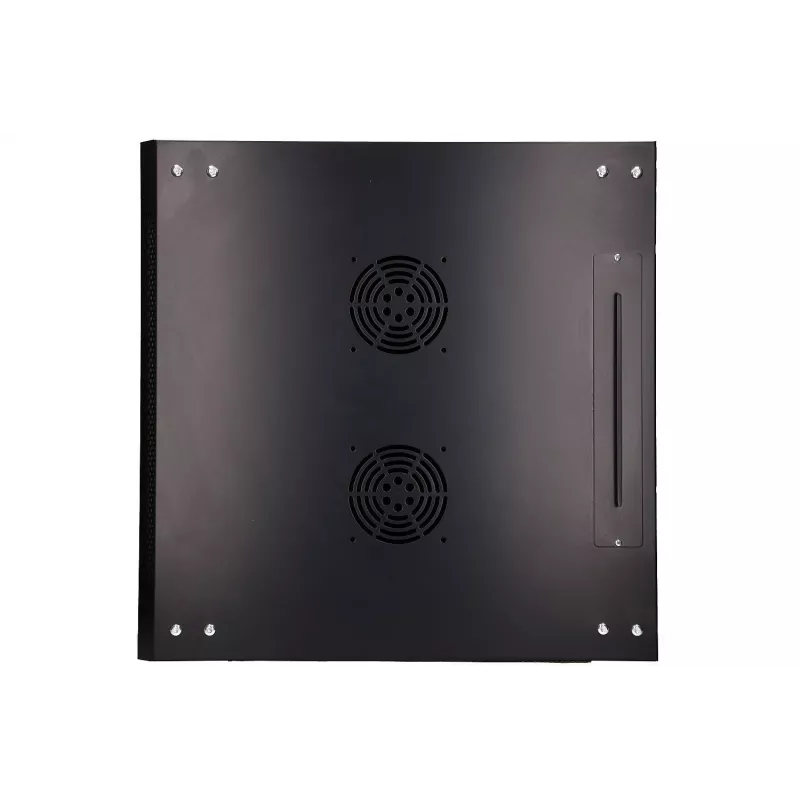

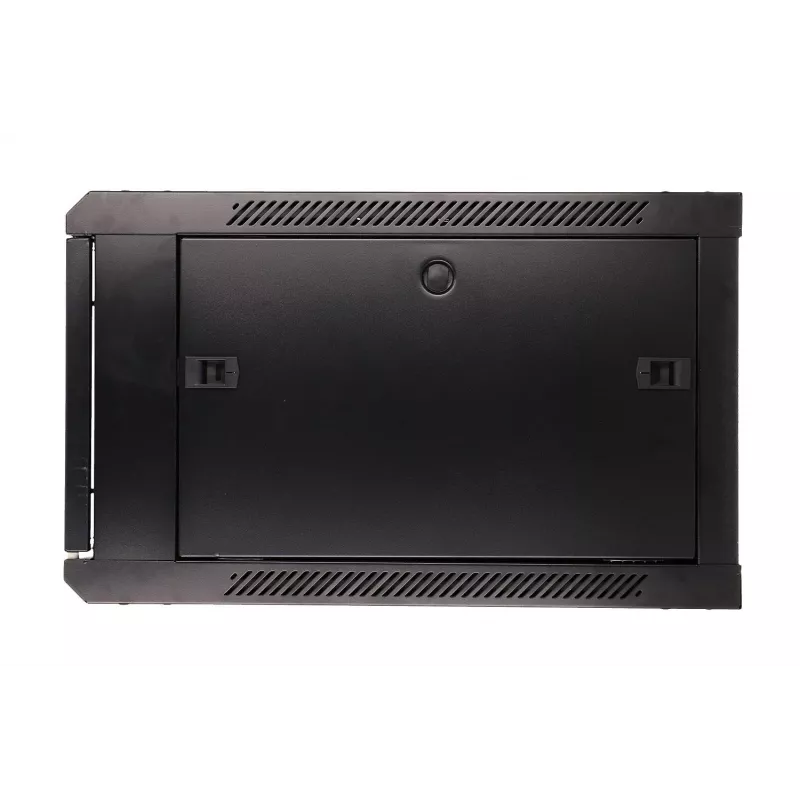

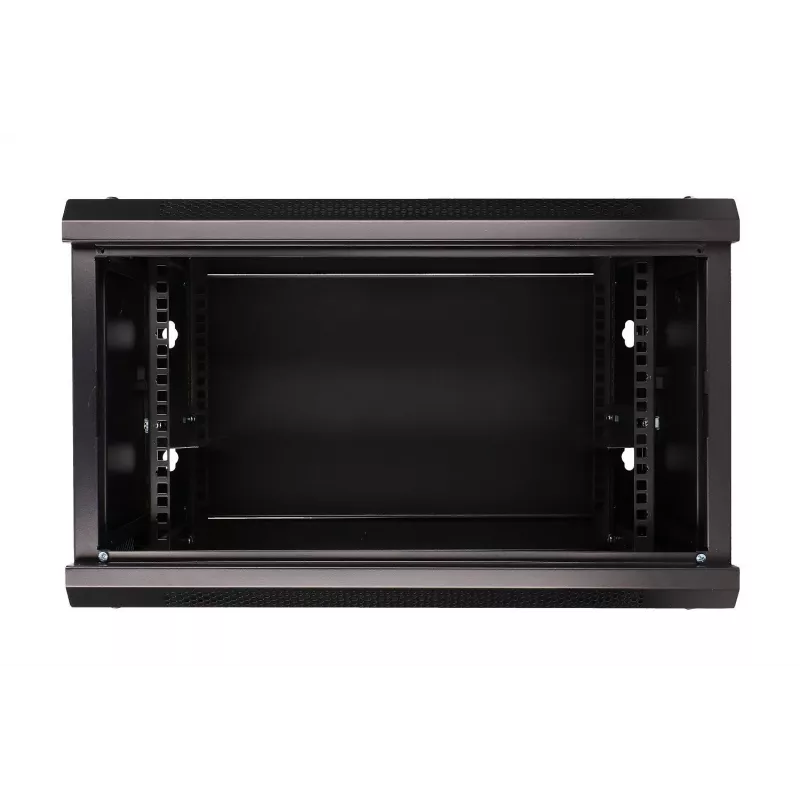

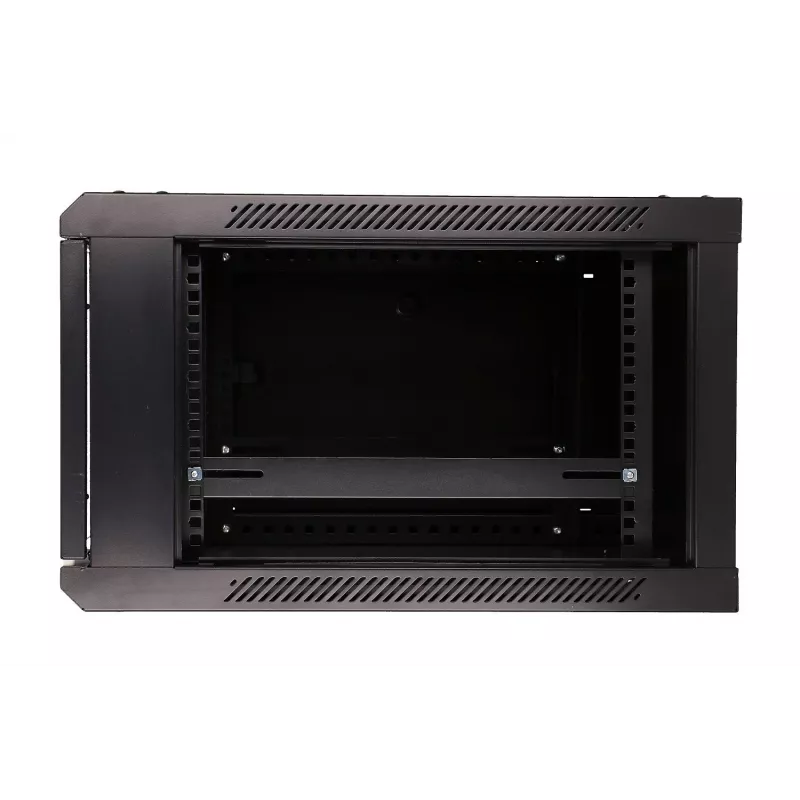

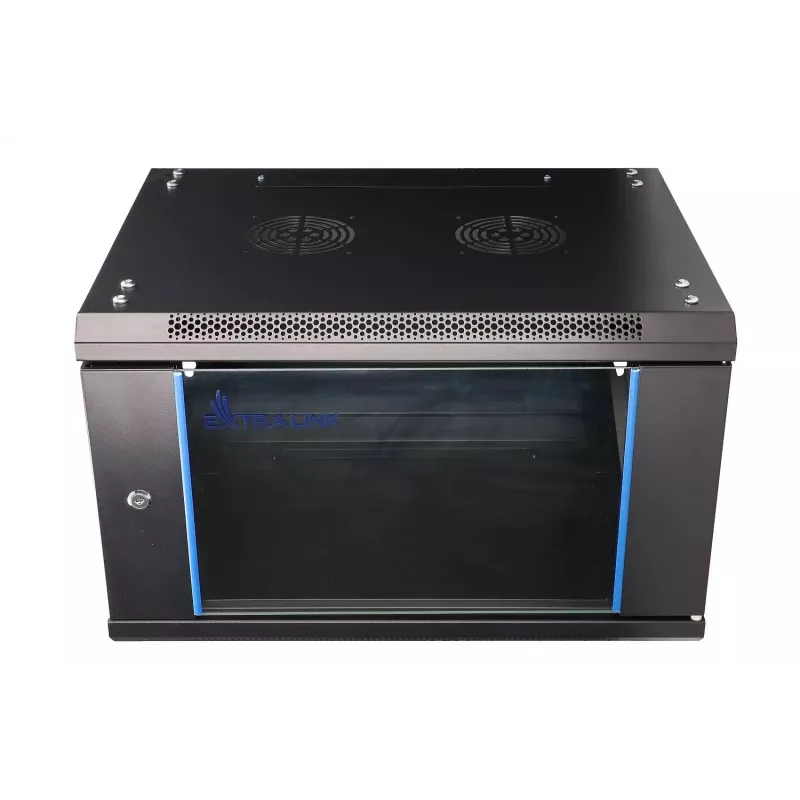

The Extralink wall-mounted rack cabinet 6U 600x600 in black is designed for mounting on walls in offices, network server rooms and CCTV control rooms. The external panels are made of cold-rolled steel and the front door has a tempered glass pane that can be opened to the left or right. Vertical rails are marked for 6U height and the cabinet's total height is 370 mm. Snap fasteners on the side panels allow disassembly, and the cabinet is supplied with locks and keys. The top panel includes two openings for fan installation and an additional opening for cable routing.

Advantages

The cabinet offers a compact 6U form factor with a 600 x 600 mm footprint suitable for small server or network installations. Cold-rolled steel construction provides rigidity while the tempered glass front door allows visual inspection without opening. Tool-free side panel removal via snap fasteners simplifies maintenance, and included locks secure installed equipment. Top fan mounting locations improve cooling options and the cable entry point supports orderly cable management.

Suitable for

• Wall-mounted network switches and patch panels
• CCTV DVRs/NVRs and camera control equipment
• Small office servers and networking gear in confined spaces
• Telecommunications and rack-mounted power supplies

Key specifications

• Rack capacity: 6U

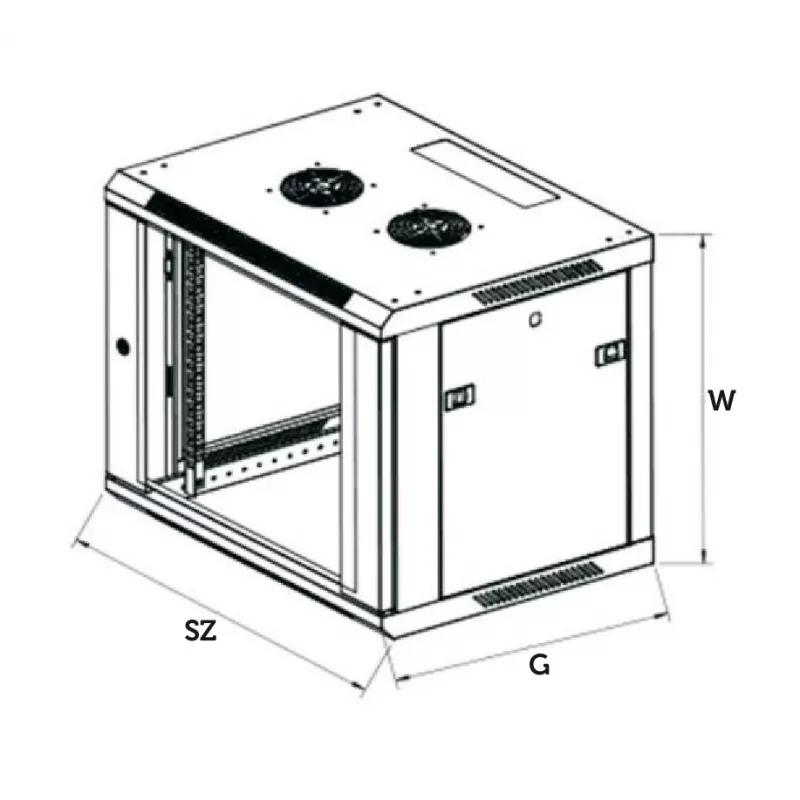

• External dimensions (W x D x H): 600 x 600 x 370 mm
• Material: cold-rolled steel body, tempered glass front door
• Colour: Black
• Top fan mounts: 2 positions
• Security: locks and keys included
• Maximum recommended load: 30 kg (manufacturer data)

How to use

Mount the Extralink 6U cabinet securely to a suitable wall using appropriate anchors and fixings for the wall type and expected load. Install equipment on the marked 6U vertical rails using standard 19" rack screws. Use the removable side panels for access during equipment installation and maintenance. Fit fans in the provided top positions if additional cooling is required, and route cables through the top cable entry to keep connections tidy.

Recommendations

The cabinet is intended for indoor use in dry, ventilated environments. Verify wall strength and use appropriate fasteners before wall mounting; do not exceed the specified maximum load. For improved thermal performance, install fans and ensure unobstructed airflow through the front door and top openings.
