Vivolink VLHDMISP1X4 video splitter HDMI 4x HDMI

The Vivolink VLHDMISP1X4 is a 1x4 HDMI video splitter that distributes a single HDMI source to four HDMI displays simultaneously. It supports resolutions up to 4K@60Hz with 4:4:4 chroma subsampling and is compatible with HDR10 and Dolby Vision. The unit is built in a metal housing, supports HDMI 1.4 and 2.0, and operates from 110–230 V AC with low power consumption.

Advantages

The splitter offers advanced EDID management via a 4-pin DIP switch, automatic down-scaling of 4K input to 1080p for compatibility with Full HD displays, CEC pass-through, status LEDs for monitoring output activity, and a Micro-USB port for firmware upgrades. Its compact metal enclosure and four HDMI outputs simplify installation and integration into retail, exhibition, or multi-screen environments.

Suitable for

• Retail store digital signage
• Trade show and exhibition displays
• Multi-screen presentations in meeting rooms
• Point-of-sale and demo stations

Key specifications

• Model: Vivolink VLHDMISP1X4
• Input/output: 1x HDMI input to 4x HDMI outputs
• Supported resolutions: up to 3840 x 2160 @ 60Hz, 4:4:4
• HDR: HDR10 and Dolby Vision support
• HDMI versions: 1.4 and 2.0 compatible
• EDID: multiple built-in settings selectable via 4-pin DIP switch
• Additional features: CEC pass-through, status LEDs, Micro-USB firmware upgrade
• Power: AC 110–230 V, typical consumption 2.5 W
• Housing: metal, colour: black
• Weight: 0.36 kg

How to use

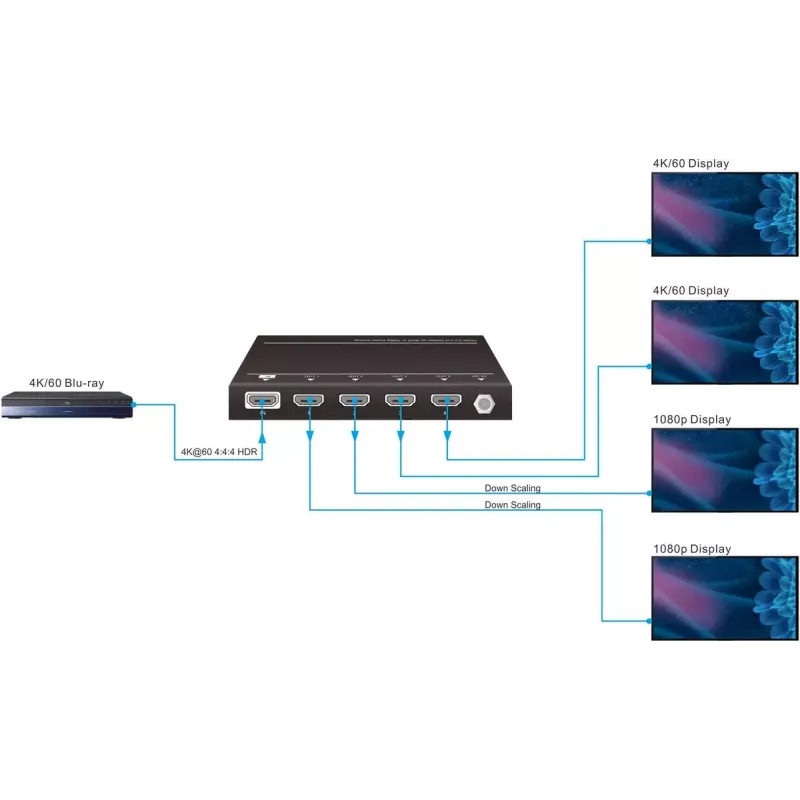

Connect the HDMI source (for example a media player or computer) to the splitter’s HDMI input and run HDMI cables from the four outputs to the displays. Select the appropriate EDID setting using the 4-pin DIP switch to match the displays’ capabilities. Power the unit from an AC outlet and verify output status via the LEDs. If needed, connect a Micro-USB cable to perform a firmware upgrade following the manufacturer’s procedure.

Recommendations

For stable operation, use high-quality HDMI cables and set EDID to match the lowest common resolution among connected displays. When mixing 4K and 1080p screens, enable the down-scaling feature to ensure compatibility with Full HD displays.
