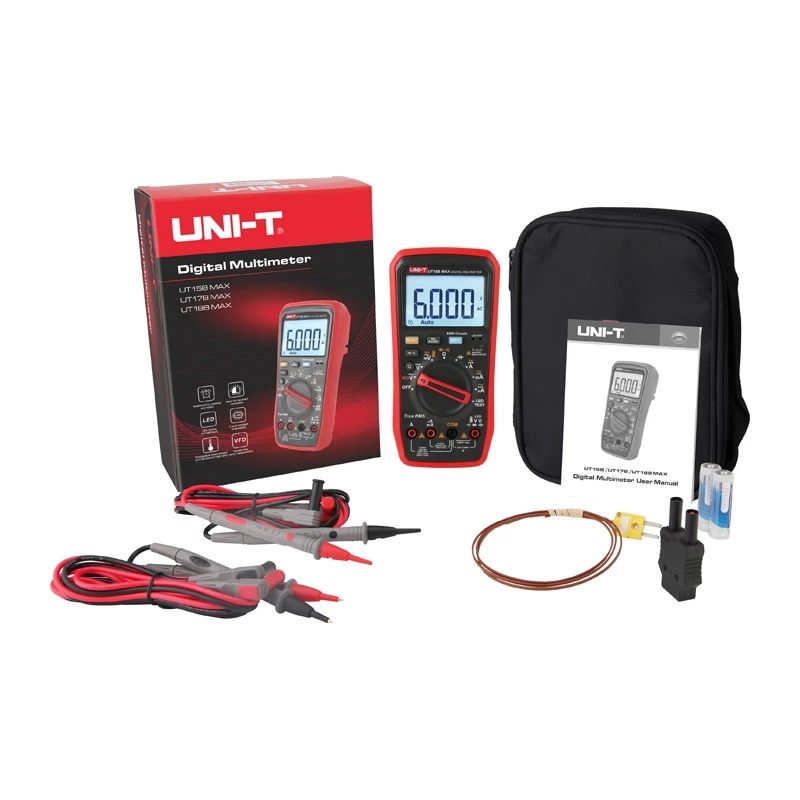

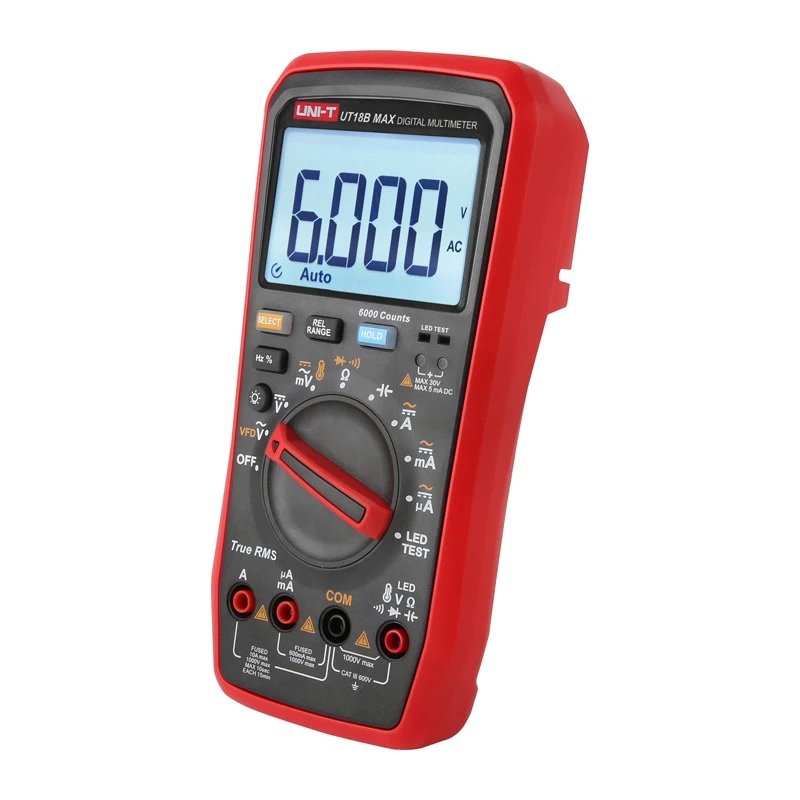

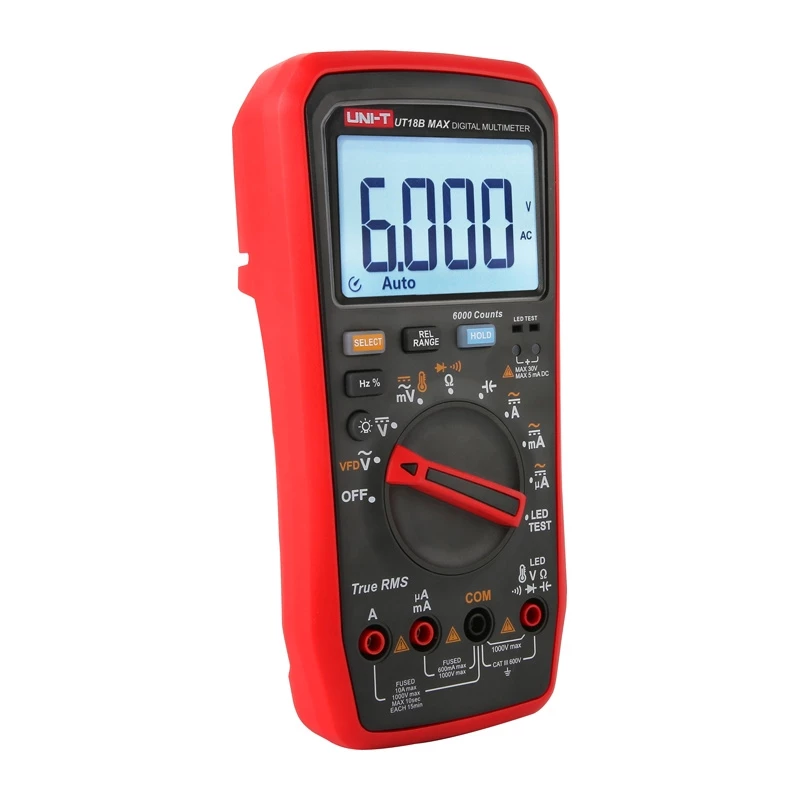

UNI-T True RMS UT18B MAX Digital Multimeter

The UNI-T True RMS UT18B MAX Digital Multimeter is a professional-grade instrument designed for accurate measurement of AC/DC voltage, current, resistance, capacitance, frequency, and temperature. With true RMS capability, it ensures precise readings even on non-sinusoidal waveforms. The device features a large backlit LCD display, auto-ranging, and a compact design for easy handling.

Advantages

True RMS measurement for accurate AC readings, auto-ranging for convenience, built-in flashlight for working in dark areas, and a durable casing with protective holster.

Suitable for

• Electricians and technicians for troubleshooting electrical systems
• Engineers for design and maintenance tasks
• DIY enthusiasts for home electrical projects

Key specifications

• True RMS AC voltage and current measurement
• DC voltage range: 600mV to 1000V
• AC voltage range: 600mV to 1000V
• Resistance range: 600Ω to 60MΩ
• Capacitance range: 40nF to 4000μF
• Frequency range: 10Hz to 10MHz
• Temperature measurement: -40°C to 1000°C (with K-type thermocouple)
• Auto-ranging and manual ranging modes
• Data hold and relative mode
• Backlit LCD display with 6000 counts
• Low battery indication
• Safety rating: CAT III 1000V, CAT IV 600V
• Power supply: 2 x 1.5V AAA batteries
• Dimensions: 180 x 87 x 47 mm
• Weight: 350 g

Recommendations

For professionals seeking a reliable and versatile multimeter, the UNI-T UT18B MAX offers excellent value with its true RMS accuracy and wide measurement range. Ideal for both field and bench use.
