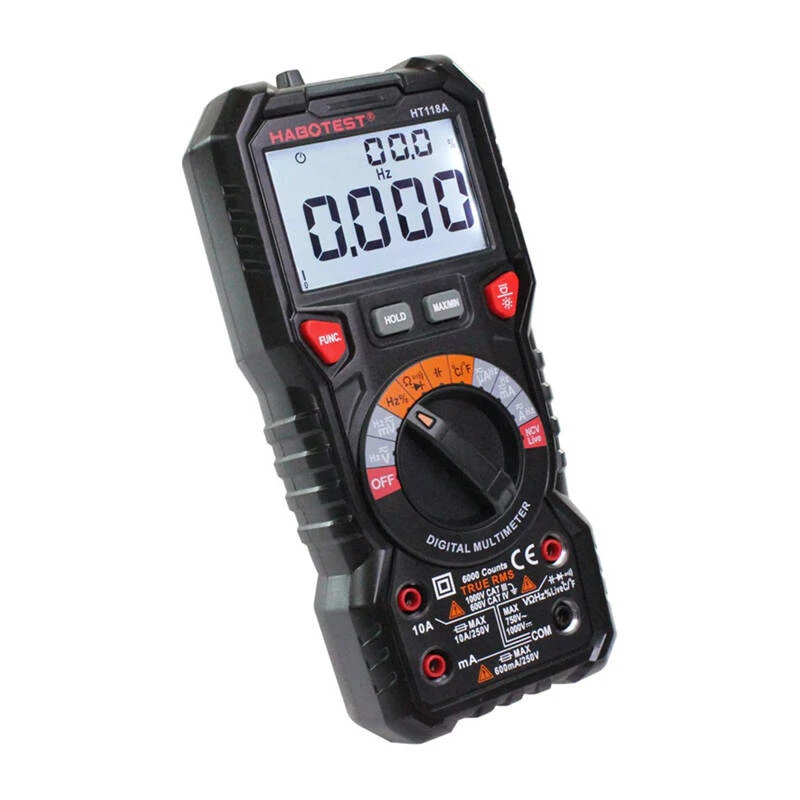

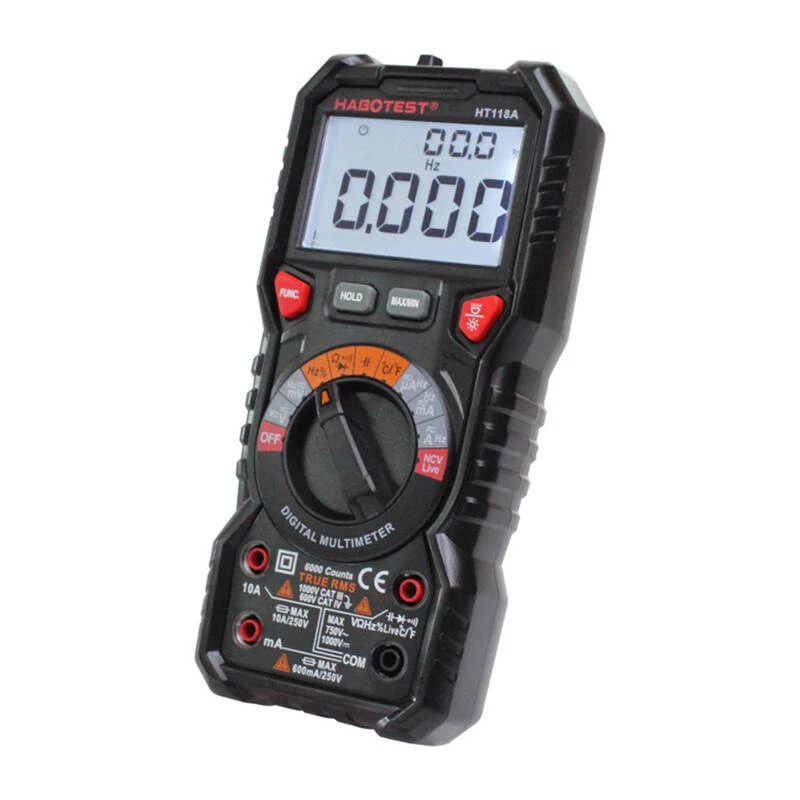

Digital Multimeter with Flashlight Habotest HT118A, True RMS, NCV

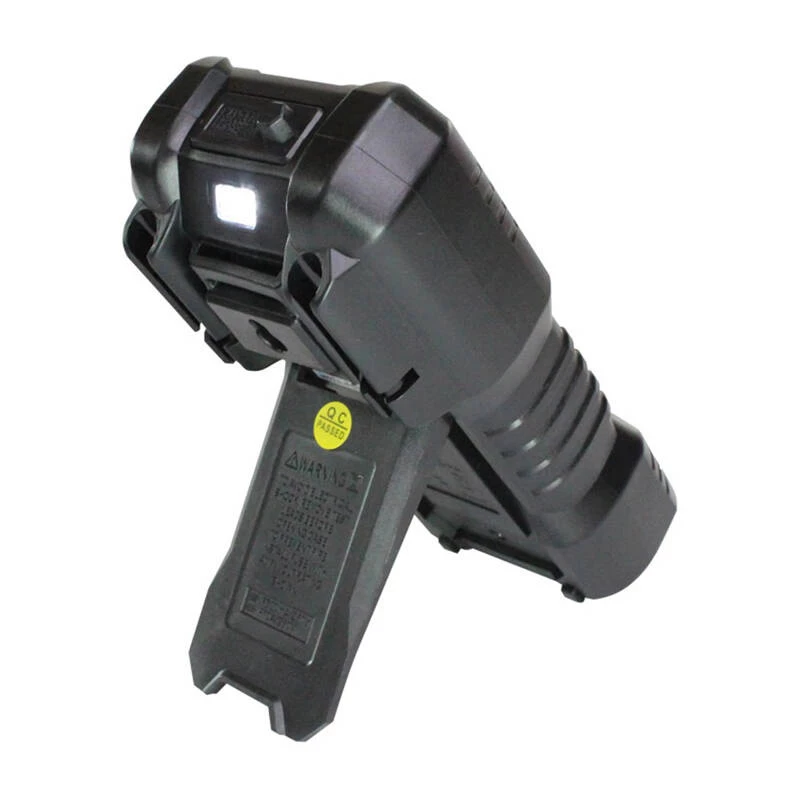

The Habotest HT118A is a professional-grade digital multimeter designed for electricians, technicians, and DIY enthusiasts. Featuring True RMS measurement for accurate readings on non-sinusoidal waveforms, non-contact voltage (NCV) detection, and a built-in flashlight for working in low-light conditions. This auto-ranging meter offers a wide range of measurement functions including DC/AC voltage, DC/AC current, resistance, capacitance, frequency, temperature, diode, and continuity tests. Safety rated CAT III 1000V and CAT IV 600V, it ensures reliable performance in demanding environments.

Advantages

True RMS technology provides precise measurements even on distorted signals. The NCV function allows safe detection of live wires without contact. The integrated flashlight illuminates dark work areas. Data hold and backlit LCD display enhance usability. Auto power off conserves battery life.

Suitable for

• Electrical troubleshooting and maintenance
• Industrial and residential wiring
• HVAC and appliance repair
• Automotive diagnostics
• Electronics hobbyists and professionals

Key specifications

• Display: 6000 counts LCD with backlight
• True RMS: Yes
• Auto-ranging: Yes
• DC Voltage: 600mV to 1000V
• AC Voltage: 600mV to 750V
• DC Current: 60mA to 10A
• AC Current: 60mA to 10A
• Resistance: 600Ω to 60MΩ
• Capacitance: 10nF to 100mF
• Frequency: 10Hz to 10MHz
• Temperature: -20°C to 1000°C (-4°F to 1832°F)
• Diode Test: Yes
• Continuity Test: Yes (buzzer)
• NCV: Yes
• Flashlight: Yes
• Data Hold: Yes
• Auto Power Off: Yes
• Safety Rating: CAT III 1000V, CAT IV 600V
• Power: 2 x 1.5V AA batteries (not included)

Recommendations

For accurate and safe electrical measurements, always use the appropriate test leads and follow safety guidelines. The Habotest HT118A is a versatile tool suitable for both professional and home use.
