Thermal Grizzly Kapton Insulation Sheet 10 x 60 mm, 50 pcs, black

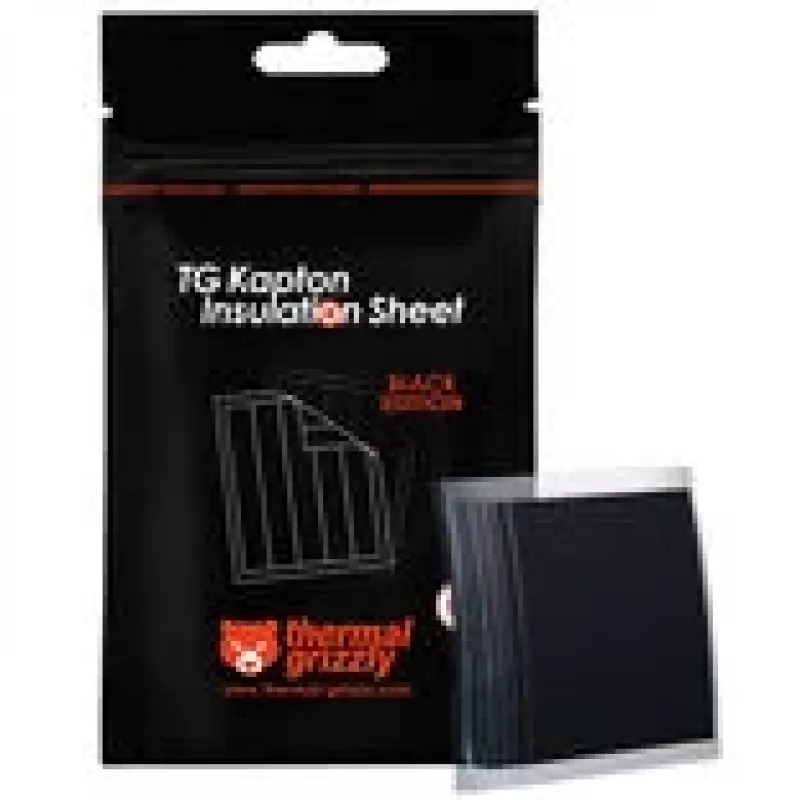

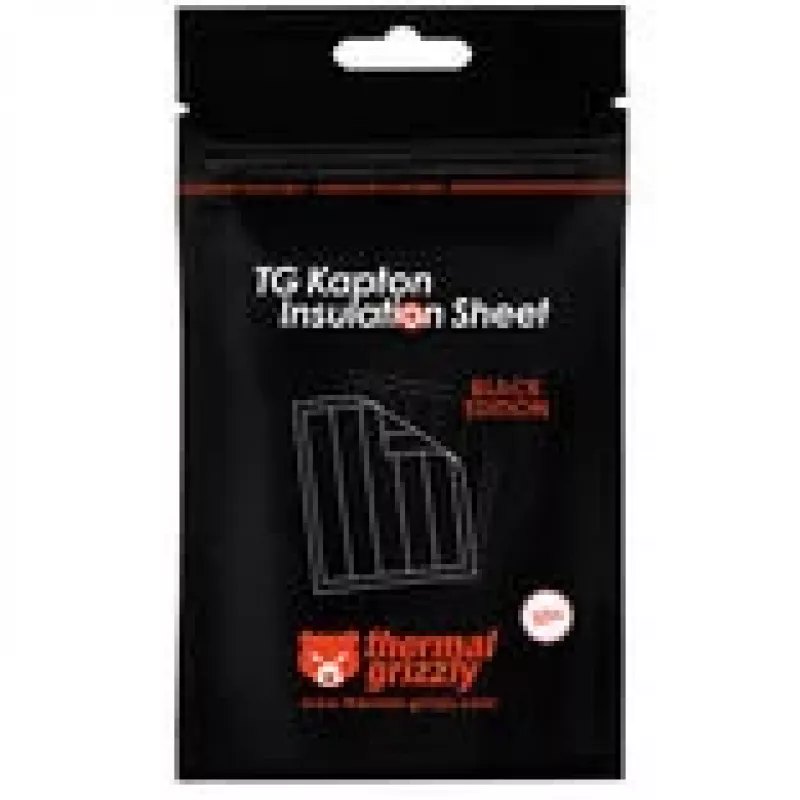

Thermal Grizzly Kapton Insulation Sheet 10 x 60 mm, 50 pcs, black are thin, electrically insulating polyimide film sheets designed for electrical and thermal isolation in electronic assemblies and repairs. Each sheet measures 10 x 60 mm and the pack contains 50 identical pieces in black. The material provides reliable dielectric strength and dimensional stability at elevated temperatures, making it suitable for protecting components, insulating gaps, and preventing short circuits on PCBs and around transformers or coils.

Advantages

These Kapton sheets combine high temperature resistance with good electrical insulation properties in a very thin, flexible form factor. Their small standardized size and consistent thickness simplify application and placement in tight spaces. The black finish improves contrast against light surfaces for precise positioning, and the polyimide substrate resists oils and many solvents encountered during repair and assembly processes.

Key specifications

• Material: polyimide (Kapton) film
• Color: black
• Sheet size: 10 x 60 mm
• Quantity: 50 pieces per pack
• Properties: electrical insulation, high temperature resistance, chemical resistance to common cleaning agents
• Form factor: thin, flexible sheets suitable for tight assemblies

How to use

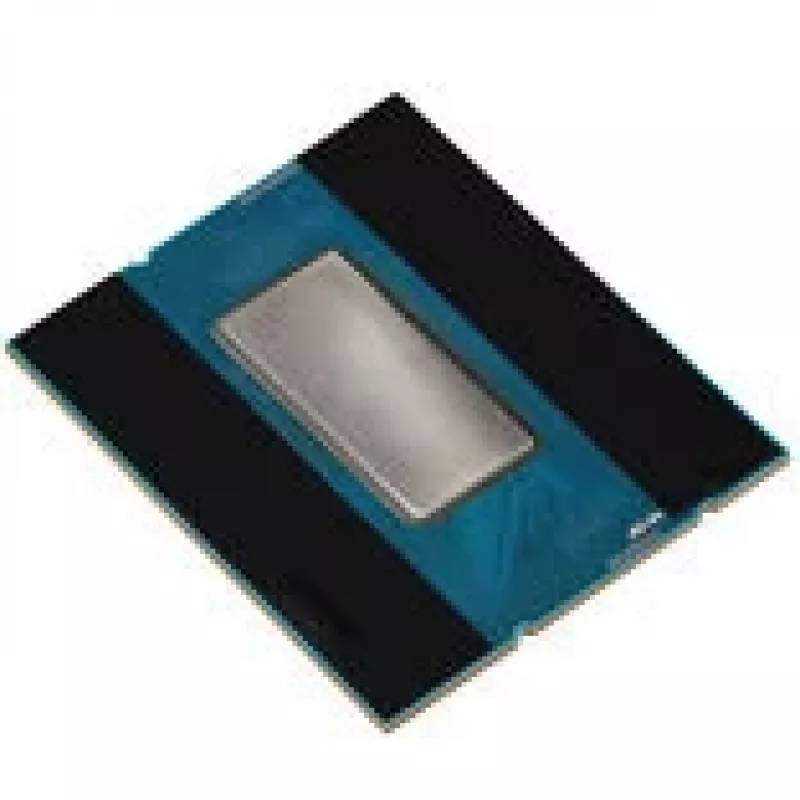

Handle the Kapton sheets with clean hands or tweezers to avoid contamination. Cut or trim sheets if a different size is required using sharp scissors or a precision blade. Place the sheet between components, over conductor paths, or around coils and transformer windings to create an insulating barrier. For adhesive mounting, use only adhesives compatible with polyimide films; otherwise, the sheets can be held in place mechanically or under components. Avoid exposing the film to prolonged contact with strong acids or bases.

Recommendations

Inspect component clearances and operating temperatures before installation to ensure the Kapton sheet meets thermal and dielectric needs. When used near soldering operations, keep sheets at a safe distance from direct flame and consider temporary holding methods until assemblies cool. Store sheets flat in a dry environment to prevent curling and contamination.
