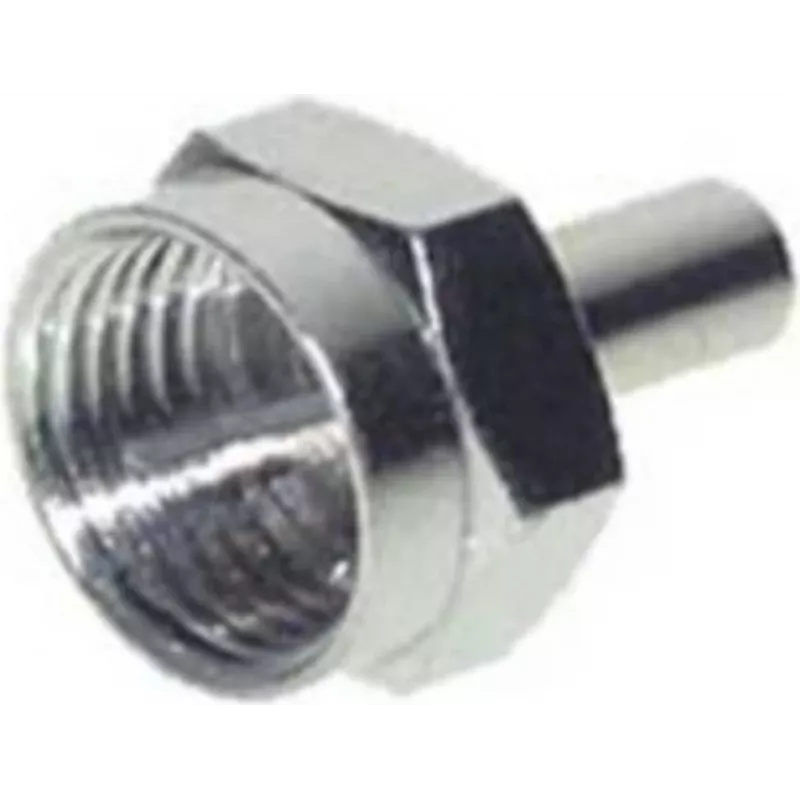

Termination resistor adapter ShiverPeaks 85333 for maximum connectivity

The ShiverPeaks termination resistor adapter 85333 is a compact device designed to provide proper 75 Ω line termination for RF and antenna systems. It ensures impedance matching at the end of coaxial lines to reduce signal reflections and stabilize RF performance. The adapter is intended for installations and test setups where a dedicated termination element is required to maintain predictable signal behavior in Wi‑Fi antenna systems and other 75 Ω networks.

Advantages

The adapter offers a small form factor that fits into tight spaces while providing reliable termination to minimize standing waves and return loss. Its consistent impedance helps improve measurement accuracy in RF test setups and prevents undesired signal reflections in network installations. The product is simple to integrate into existing coaxial runs and compatible with common 75 Ω connectors used in Wi‑Fi antenna systems.

Suitable for

• Wi‑Fi antenna installations requiring proper line termination
• RF test benches and measurement setups
• Signal conditioning at the end of coaxial runs in network installations
• Temporary termination during site commissioning or troubleshooting

Key specifications

• Nominal impedance: 75 Ω termination
• Function: passive termination resistor for RF lines
• Application frequency range: suitable for typical Wi‑Fi and RF frequencies (consumer and professional setups)
• Form factor: compact adapter designed for inline coaxial termination
• Compatibility: designed for 75 Ω coaxial antenna and RF systems

How to use

Connect the termination resistor adapter to the open end of the coaxial cable or antenna connector that requires a 75 Ω termination. Ensure the connector types match or use appropriate adapters if necessary. Once attached, the device provides a passive load to the line, reducing reflections and stabilizing signal behavior. For test setups, attach the adapter to the cable under measurement to obtain more consistent return loss and S-parameter readings.

Recommendations

Use the adapter in environments where a defined 75 Ω termination is needed; avoid exposure to moisture and excessive mechanical stress. For precise RF measurements, place the termination as close as possible to the device under test and verify connector integrity before taking readings.
