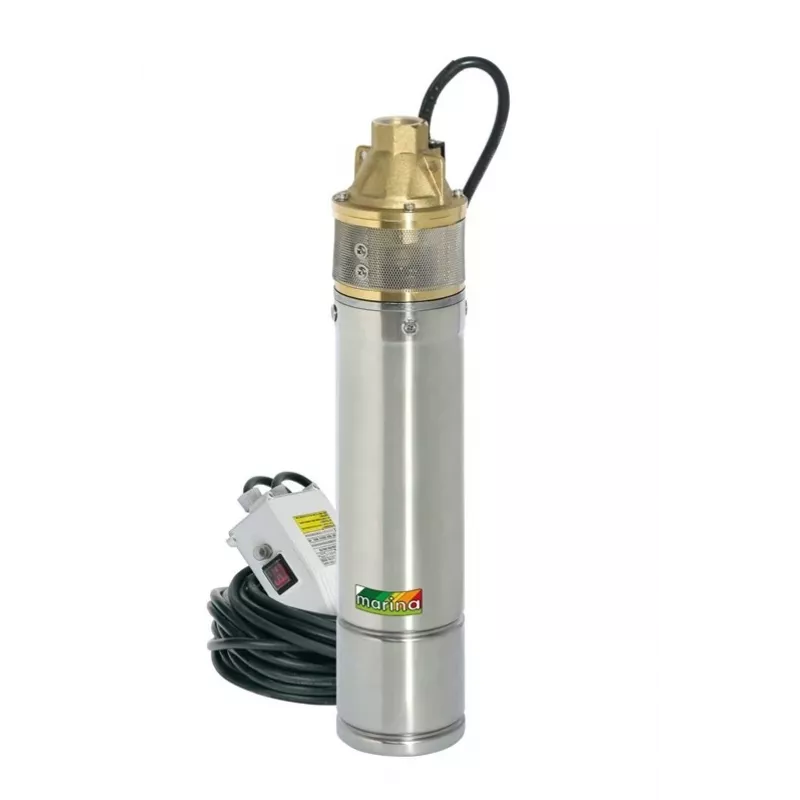

Submersible pump SVM 90 (MARINA)

Submersible pump for dirty water with a powerful 250 W motor, delivering up to 90 L/min flow rate and a maximum head of 6 m. Ideal for draining, emptying, and transferring clean water in domestic and garden applications.

Advantages

The SVM 90 features a robust stainless steel motor casing and technopolymer pump body, ensuring durability and corrosion resistance. An integrated float switch provides automatic operation, preventing dry running and extending pump life. The 10 m power cable and IPX8 waterproof rating allow safe submersion up to 7 m depth.

Suitable for

• Draining flooded basements, garages, and cellars
• Emptying swimming pools, ponds, and water tanks
• Irrigation and water transfer from wells or cisterns
• Removing clean water without suspended solids

Key specifications

• Power: 250 W (0.25 kW)
• Voltage: 230 V, 50 Hz
• Max flow rate: 90 L/min (5.4 m³/h)
• Max head: 6 m
• Max immersion depth: 7 m
• Max particle size: 5 mm
• Outlet diameter: 1" (25 mm)
• Cable length: 10 m
• Float switch: integrated
• Pump body material: technopolymer
• Impeller material: technopolymer (Noryl)
• Motor casing material: stainless steel
• Shaft material: stainless steel
• Max liquid temperature: 35 °C
• Protection rating: IPX8
• Insulation class: F

Recommendations

For optimal performance, ensure the pump is fully submerged before operation and keep the intake clear of debris. Use with a suitable hose and check valve to prevent backflow. Regularly clean the float switch and impeller to maintain efficiency.
