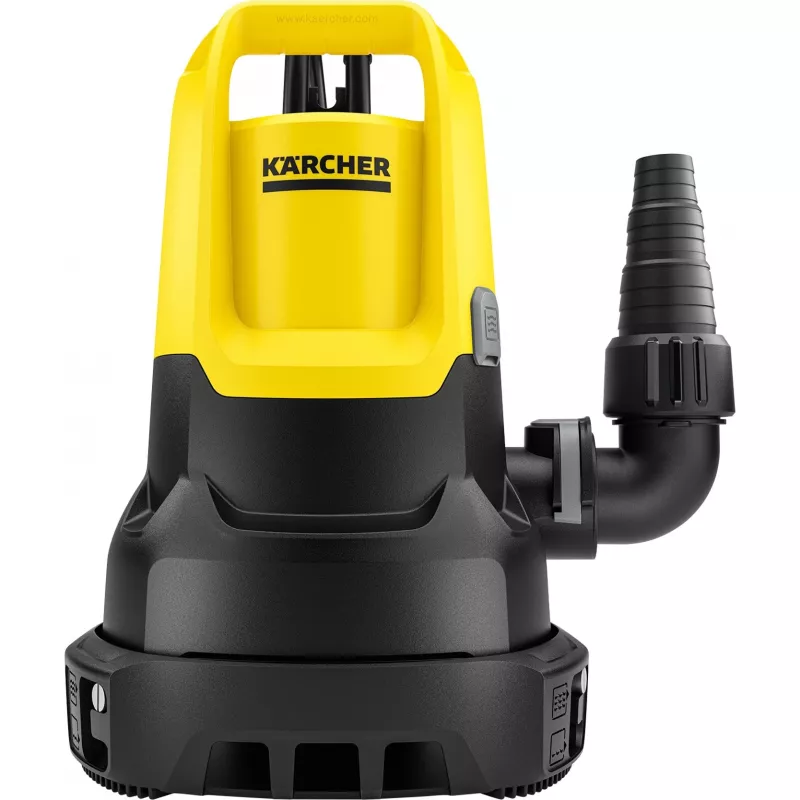

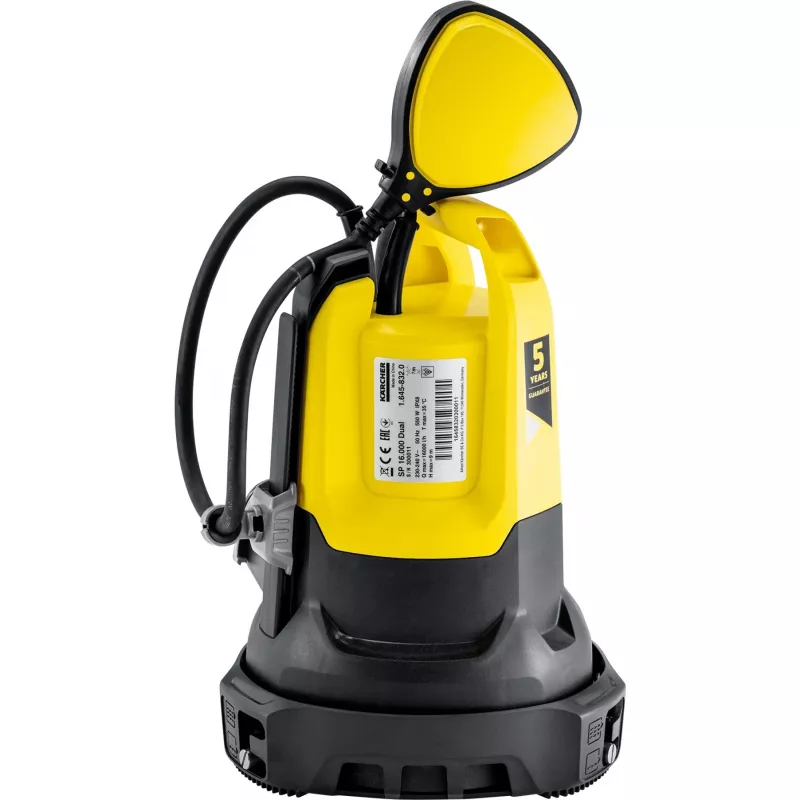

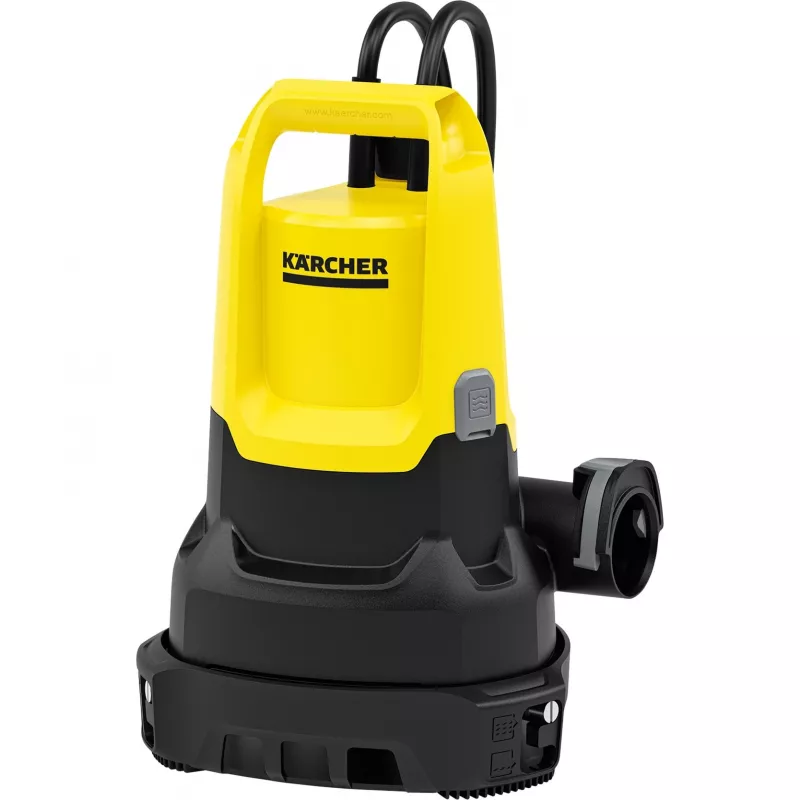

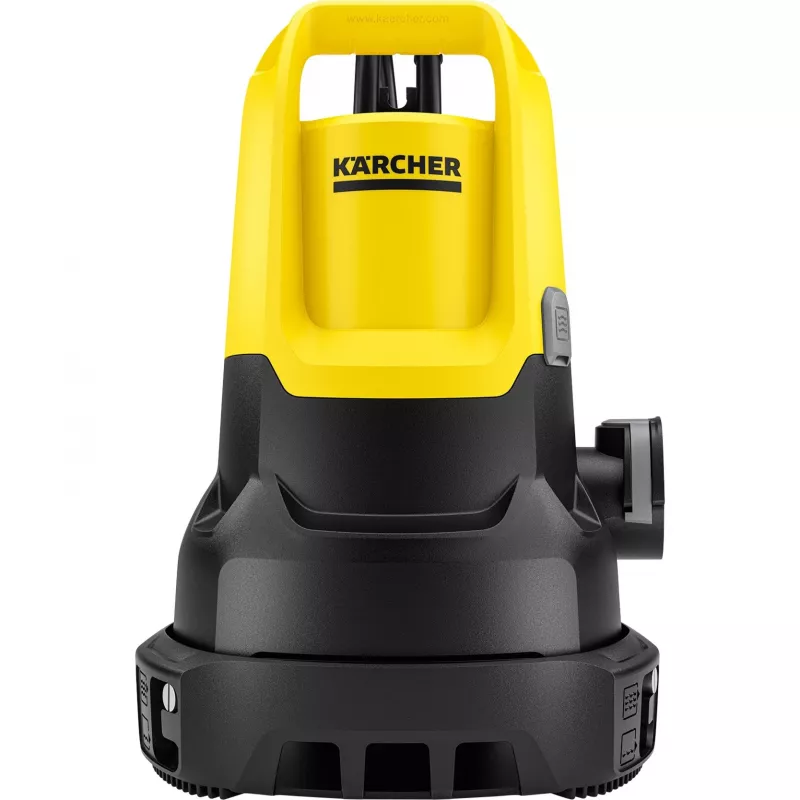

Submersible Pump Kärcher SP 16.000 DUAL

The Kärcher SP 16.000 DUAL submersible pump is a 2‑in‑1 flat‑suction dirty water pump designed to handle both clean and dirty water with a maximum capacity of 16,000 l/h. It reliably passes solids up to 20 mm and allows quick switching between dirty‑water mode and flat pick‑up for residual water levels down to 1 mm. The pump is driven by a robust 550 W motor, has a maximum immersion depth of 7 m and comes with a 10 m power cable. Compact dimensions and Quick Connect hose thread options (1", 1 1/4", 1 1/2") support easy installation and transport.

Advantages

The SP 16.000 DUAL combines dirty‑water pumping and flat suction in a single unit, enabling both removal of solids and near‑drying of surfaces. A variable filter basket switches modes quickly, while slide‑ring sealing borrowed from Kärcher’s Professional range increases service life. The float switch with rail mounting allows automatic on/off control and vertical adjustment for low‑level pumping. Quick Connect threads make connecting common hose sizes fast and simple.

Suitable for

• Pumping out flooded basements and cellars
• Draining garden ponds and pools
• Removing standing or residual water from garages and terraces

Key specifications

• Maximum flow rate: 16,000 l/h
• Motor power: 550 W
• Maximum immersion depth: 7 m
• Minimum residual water level (flat pick‑up): 1 mm
• Solids handling: up to 20 mm diameter
• Cable length: 10 m
• Hose connections: Quick Connect for 1", 1 1/4" and 1 1/2"
• Dimensions (W×D×H): 241 × 237 × 279 mm
• Brand / MPN / EAN: Kärcher / 1.645-832.0 / 4054278951706

How to use

Place the pump on a stable surface in the water to be removed, select the appropriate filter basket position for dirty‑water or flat‑suction operation, and connect a suitable hose to the Quick Connect thread. Adjust the float switch vertically on its rail to set the automatic on/off levels or use the pump in continuous mode if required. Ensure the power cable is routed safely and the pump is not run dry.

Recommendations

For longer service life, avoid pumping fluids containing sharp or abrasive solids beyond the specified 20 mm size, store the pump dry and frost‑free, and inspect the filter basket and sealing ring after heavy use or before seasonal storage.
