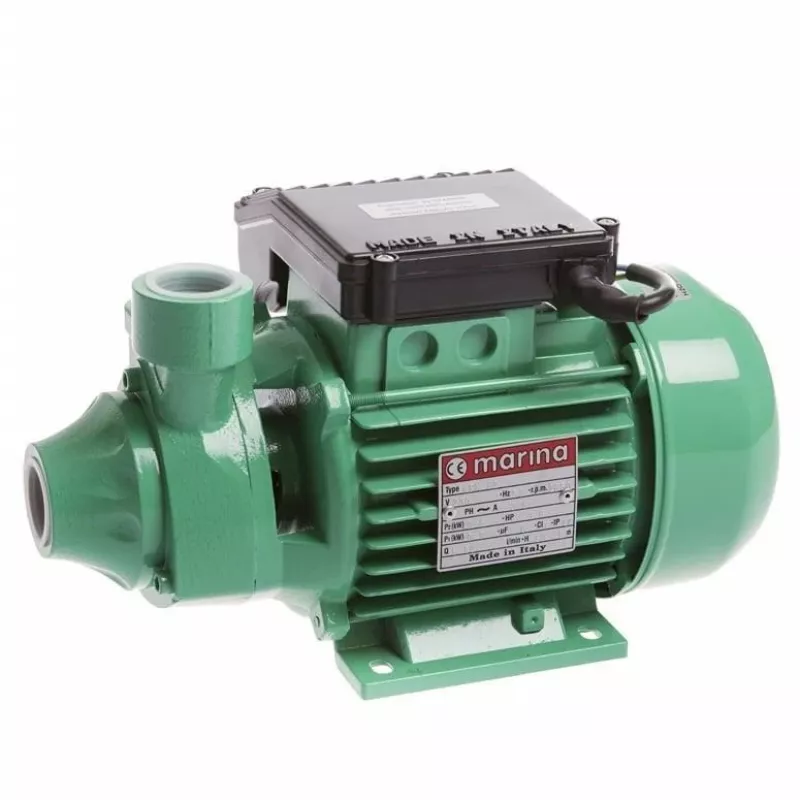

Pump KPM80 900W Peripheral Electric Pump, 80 l/min, 70 m Head, Brass Impeller, Cast Iron Body, 230 V

The Pump KPM80 900W stands apart from typical peripheral pumps by combining a robust cast iron body with a brass impeller, delivering reliable high-pressure water movement for demanding residential and light commercial tasks. With a 900 W motor and a maximum head of 70 metres, it pushes water to heights that many competitors in its class cannot reach, all while maintaining a compact footprint.

Highlights

• Powerful 900 W (1.2 HP) single-phase motor for continuous duty
• High flow rate of 80 l/min (4.8 m³/h) for fast water transfer
• Impressive 70 m maximum head for high-rise or long-distance applications
• Durable brass impeller and cast iron pump body for long service life
• Self-priming with up to 8 m suction lift, ideal for wells and tanks
• IP44 protection rating for safe outdoor installation
• Mechanical seal (ceramic-graphite-NBR) ensures leak-free operation

In daily use

Whether you need to boost water pressure in a garden irrigation system, supply water to upper floors, or transfer water from a storage tank, the KPM80 handles it with ease. Its peripheral design provides steady, high-pressure output, while the stainless steel shaft and quality seal minimise maintenance. The pump operates quietly enough for residential areas and can handle liquids up to +60 °C, making it versatile for various clean water applications.

Full specifications

• Power: 900 W (1.2 HP)
• Voltage: 230 V, 50 Hz
• Max flow rate: 80 l/min (4.8 m³/h)
• Max head: 70 m
• Max suction lift: 8 m
• Inlet/outlet diameter: 1" (25 mm)
• Pump type: Peripheral electric pump
• Impeller material: Brass
• Pump body material: Cast iron
• Motor type: Single-phase asynchronous, continuous duty
• Insulation class: F
• Protection rating: IP44
• Max liquid temperature: +60 °C
• Max ambient temperature: +40 °C
• Shaft material: Stainless steel (AISI 416)
• Seal type: Mechanical seal (ceramic-graphite-NBR)
• Capacitor: 20 µF
• Power source: AC
• Suitable for indoor and outdoor use

Final note

For reliable water pressure and transfer in a compact, durable package, the Pump KPM80 900W is a smart choice for homeowners and professionals alike.
