Submersible pump Einhell GC-DW 900 N

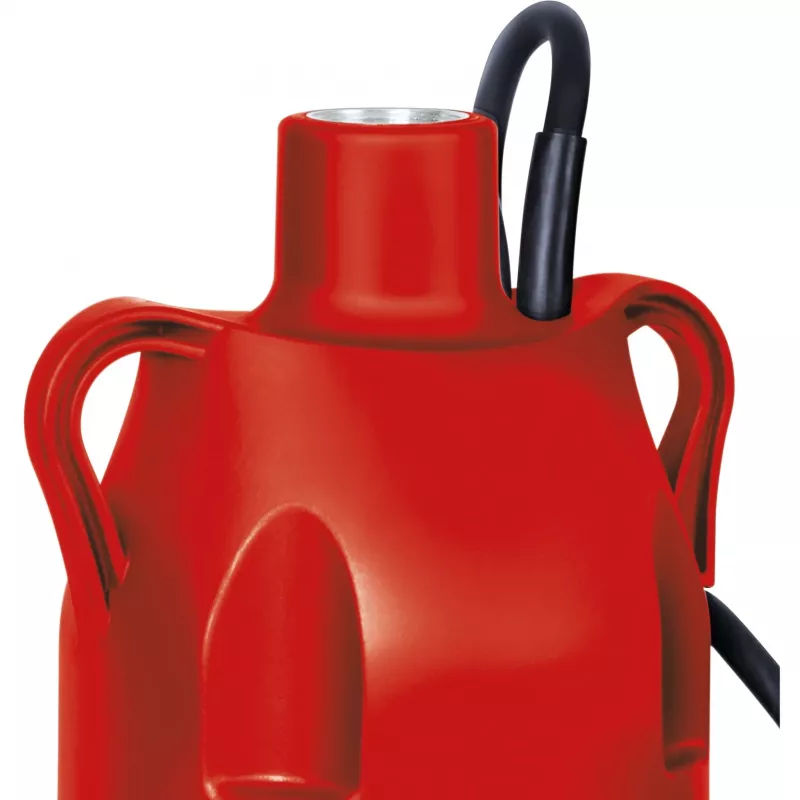

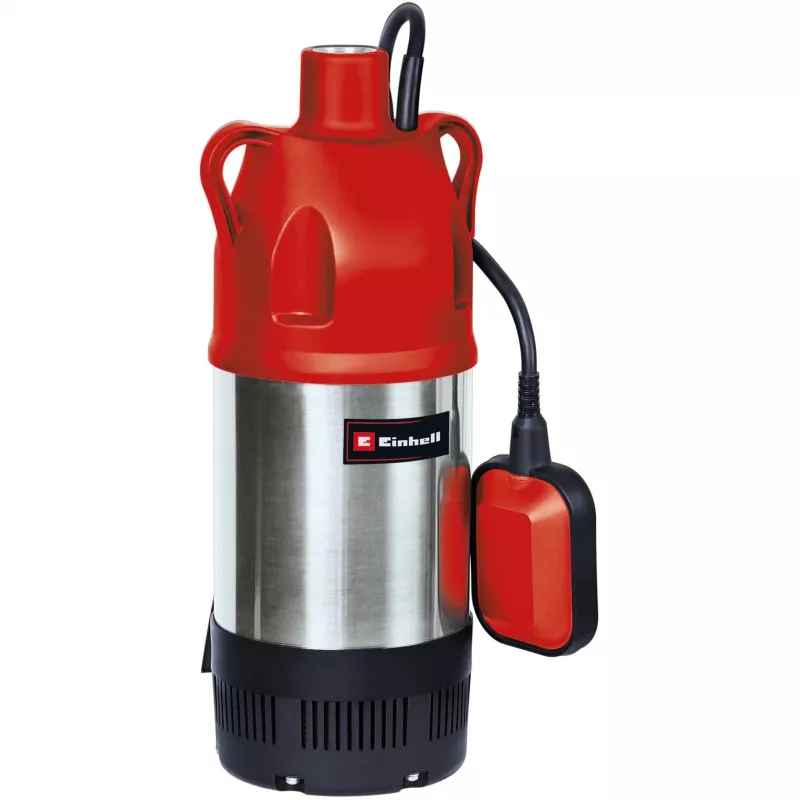

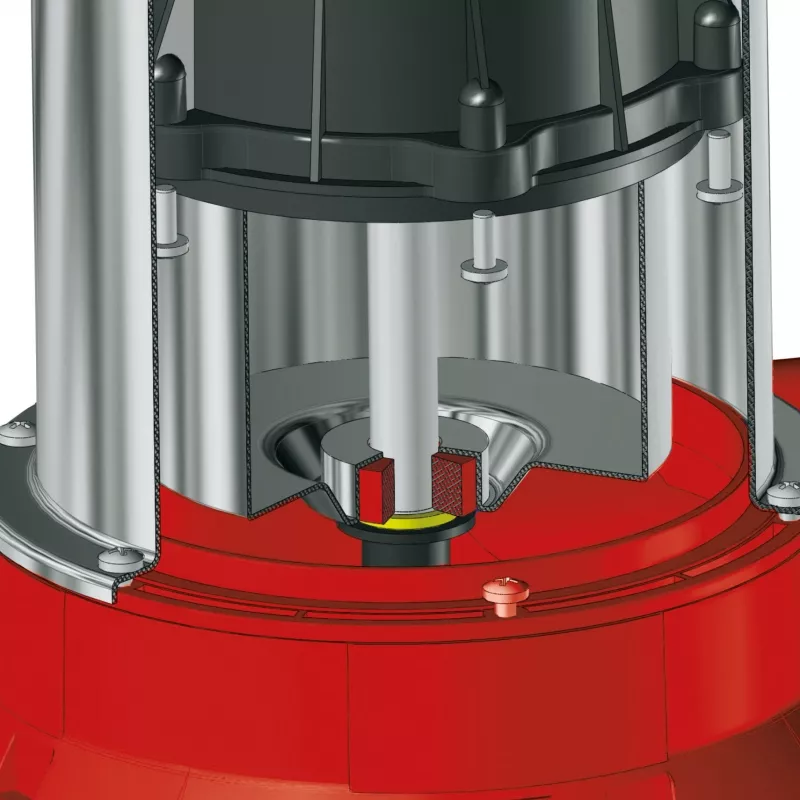

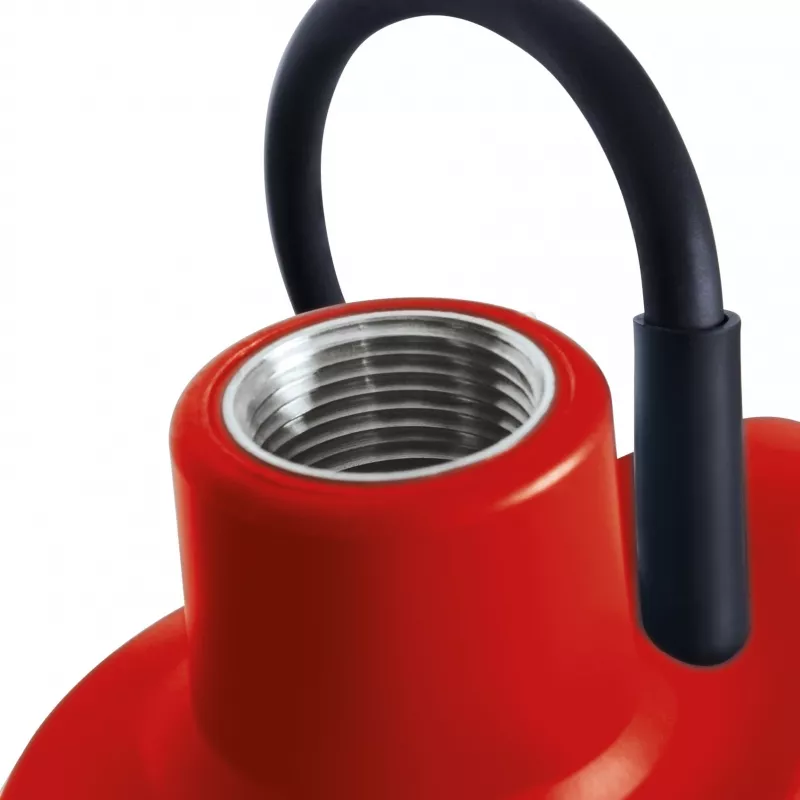

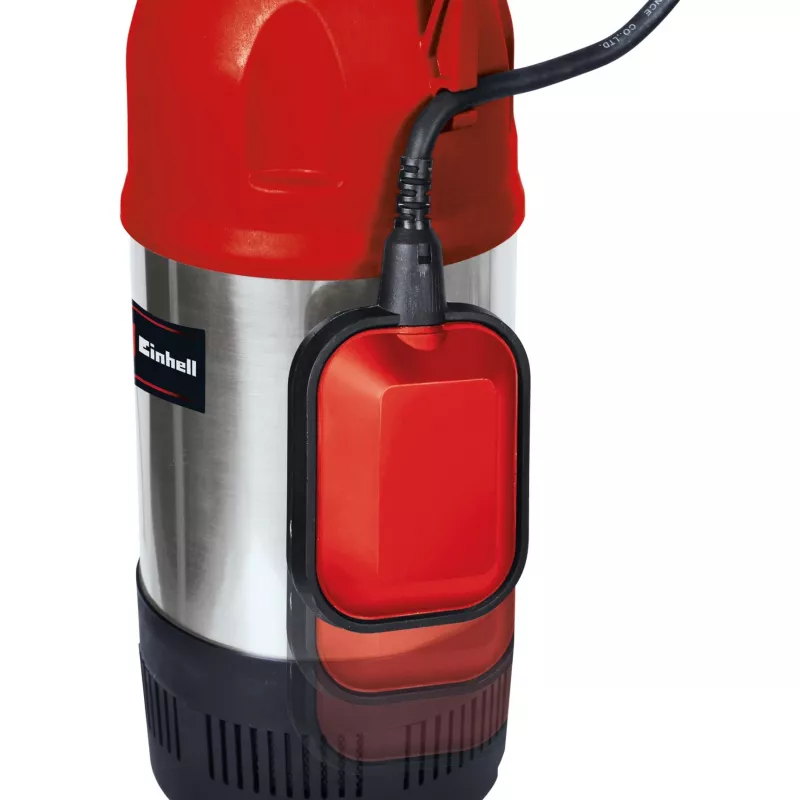

The Einhell GC-DW 900 N submersible pump is designed for extracting and pressurising clear water from depths up to 32 metres of delivery head and operating reliably when submerged. Equipped with a 900 W motor and a multilevel impeller system, the pump supplies up to 6,000 litres per hour for use with wells, reservoirs and cisterns. The corrosion-resistant stainless steel housing and a stainless steel insert in the pressure connection increase durability, while a high-quality mechanical seal reduces maintenance needs. The unit includes a float switch and two suspension eyelets for secure lowering and installation.

Advantages

The GC-DW 900 N combines a powerful 900 W motor with a multilevel impeller to ensure steady flow and high delivery head. Its robust stainless steel housing and stainless steel pressure connection provide corrosion resistance and long service life. A high-quality mechanical seal minimises leakage and maintenance. Integrated features such as the float switch and suspension eyelets simplify installation and safe operation.

Suitable for

• Pumping clear water from wells
• Emptying reservoirs and cisterns
• Supplying pressurised water for garden irrigation and domestic systems
• Applications requiring delivery head up to 32 m

Key specifications

• Brand: EINHELL
• Model: GC-DW 900 N (MPN 4170964, EAN 4006825597752)
• Power: 900 W
• Max. flow rate: up to 6,000 L/h
• Max. delivery head: 32 m
• Designed submersion / suction depth: suitable for use with wells and reservoirs (product data notes depth capability)
• Voltage / Frequency: 230 V AC / 50 Hz
• Housing material: corrosion-resistant stainless steel
• Weight: 8.9 kg

How to use

Lower the pump into the well, reservoir or cistern using the suspension eyelets and a suitable rope, ensuring the float switch can operate freely. Connect the pressure outlet to the supply hose or pipe using the stainless steel pressure connection. Connect the pump to a 230 V AC power supply following local electrical regulations. Monitor the float switch and system pressure during initial operation and ensure the pump remains submerged while running to avoid dry operation.

Recommendations

Use the pump only with clean, non-aggressive water and avoid sand or large particles to prevent wear. Regularly inspect the mechanical seal and connections and store the pump dry and frost-free when not in use.
