LC Power LC-DOCK-U3-CR - HDD-Dockingstation mit Netzanzeige, Ein/Aus-Schalter, Klon-Funktion Schächte: 2 - 2.5 / 3.5 gemeinsam genutzt (6,4 cm/8,9 cm

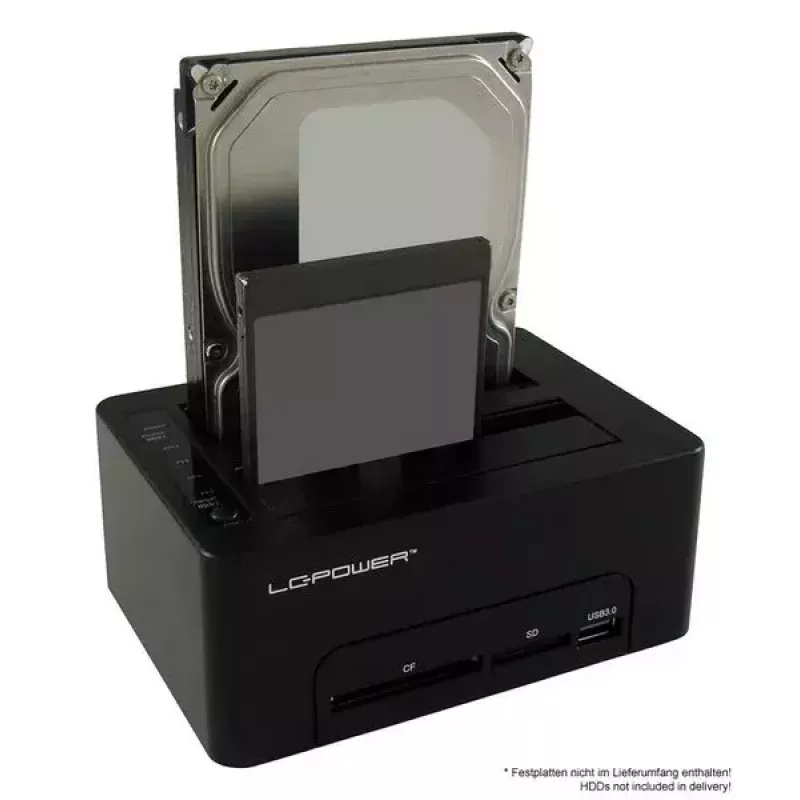

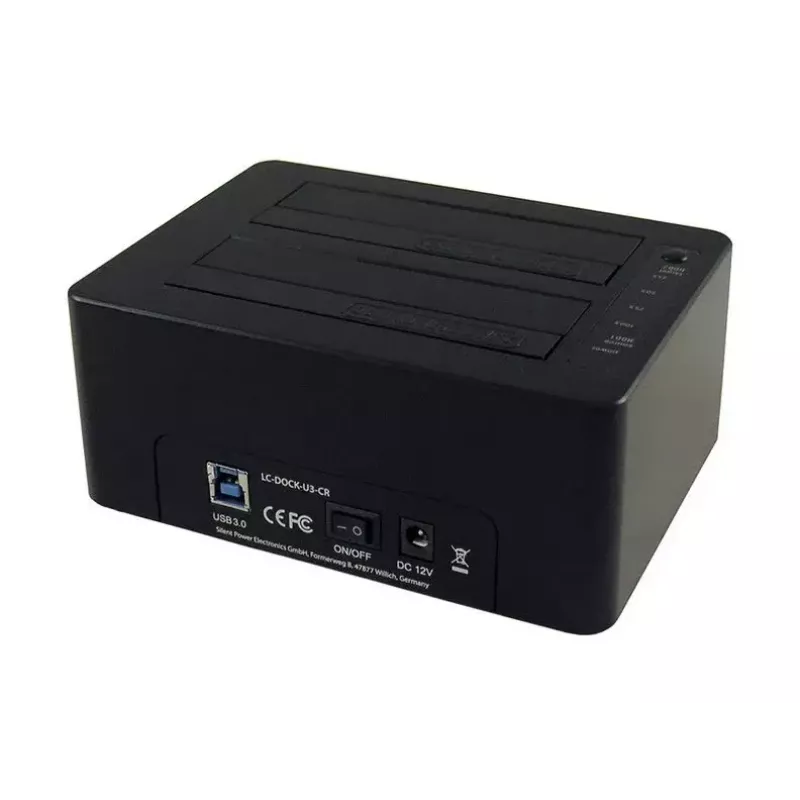

The LC-Power LC-DOCK-U3-CR is a dual-bay storage drive docking station for 2.5" and 3.5" HDDs and SSDs. It connects to a host via USB 3.2 Gen 1 (Type-A) providing up to 5 Gbit/s transfer speed, and also includes CF/SD card slots and an integrated USB 3.0 hub. The unit has a compact plastic housing in black and measures 153 mm × 112 mm × 62 mm.

Advantages

The docking station supports two drives simultaneously and offers one-touch cloning for direct disk-to-disk duplication without a PC. USB 3.2 Gen 1 connectivity ensures fast file transfers, while built-in CF and SD card readers and the USB hub expand its versatility. The plastic enclosure keeps the device lightweight and portable.

Suitable for

• Data backup and disk cloning
• Transferring files between HDD/SSD and a computer
• Working with CF and SD memory cards
• Connecting multiple USB devices via the integrated hub

Key specifications

• Supported drives: 2 × 2.5" / 3.5" HDD/SSD
• Interface: USB 3.2 Gen 1 (USB 3.0) Type-A, up to 5 Gbit/s
• Card reader: CF and SD
• Material: Plastic
• Colour: Black
• Dimensions: 153 × 112 × 62 mm
• Weight: 0.802 kg

How to use

Insert 2.5" or 3.5" drives into the bays until they seat firmly. Connect the docking station to a computer using the supplied USB Type-A cable. For cloning, place the source drive in the source bay and the target drive in the destination bay, then use the one-touch clone button following the manufacturer’s cloning procedure. Use the CF/SD slots to read memory cards and the USB hub ports to attach additional USB devices.

Recommendations

Ensure the docking station is connected to a stable power source and that drives are properly seated before starting cloning or data transfers. Use a USB 3.0/3.2 port on the host computer to achieve optimal transfer speeds and follow safe removal procedures to avoid data corruption.
