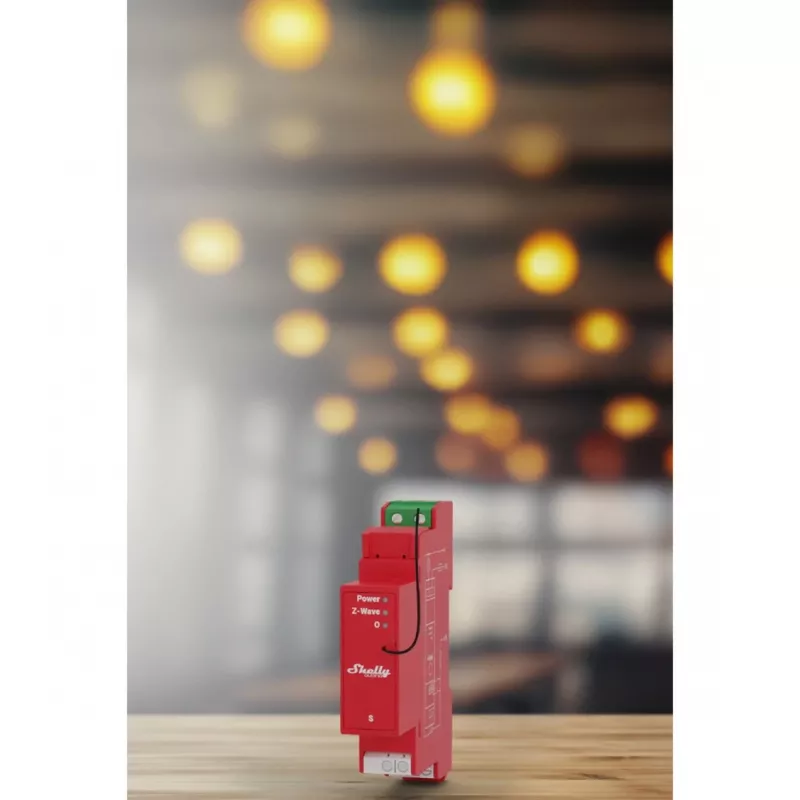

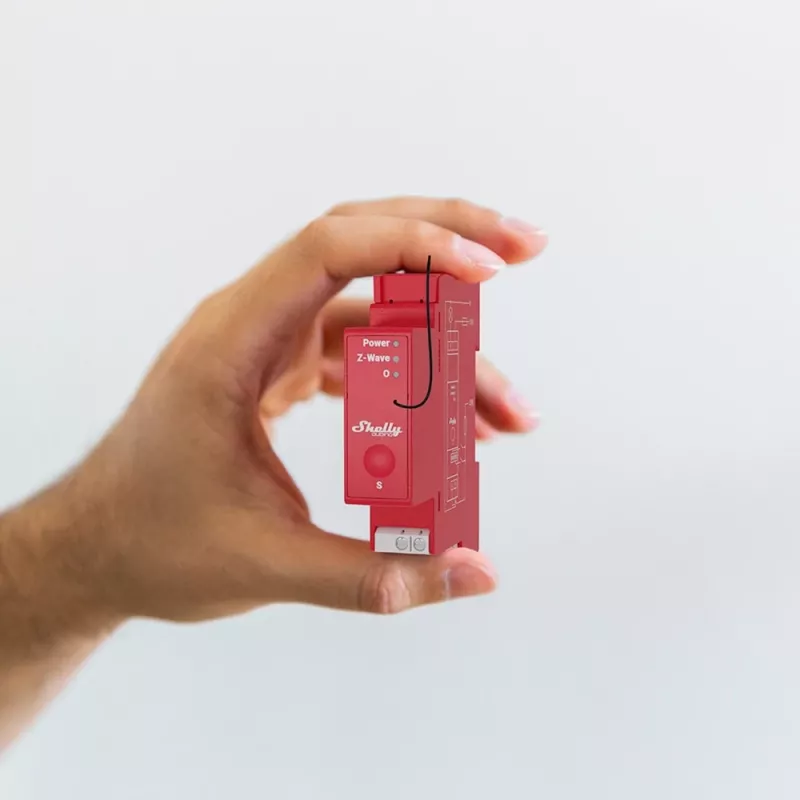

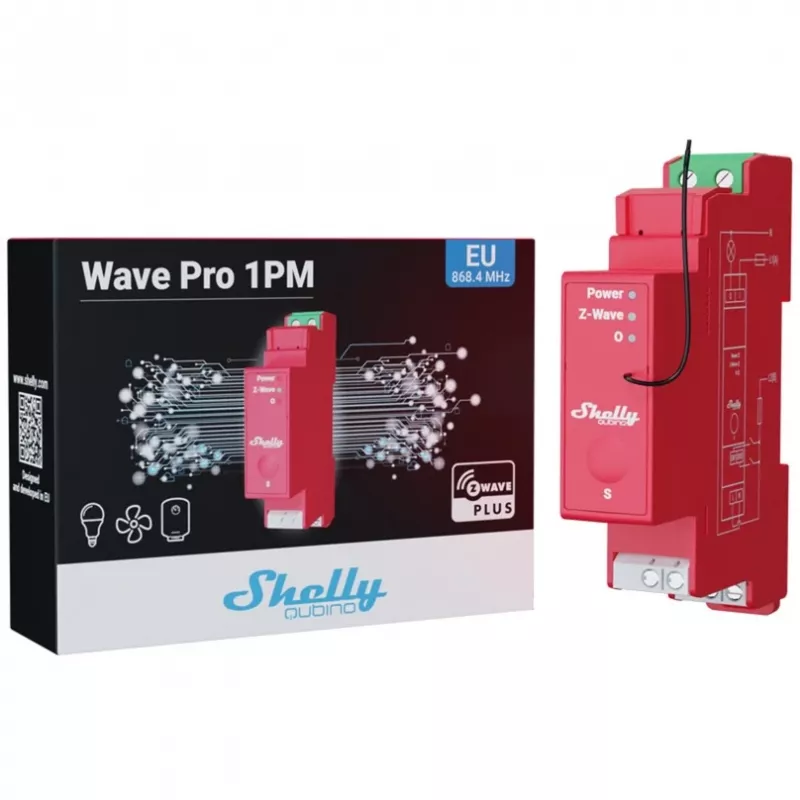

Solid-state relay Shelly Qubino Wave PRO 1PM Red 16A 110-240V

Wave Pro 1PM is a professional 1-channel DIN-rail Z-Wave® smart switch with dry contacts designed for home and commercial automation. DIN-rail mountable inside a breaker box, it supports one-phase loads up to 16 A and provides potential-free outputs for flexible voltage use. The device offers power monitoring, associations for direct device-to-device actions, and Security 2 Authenticated encrypted communication. Wave Pro 1PM works with any certified Z-Wave gateway and the latest S800 Z-Wave chip generation, enabling integration with a wide range of Z-Wave devices and centralized control via a smart hub or mobile app.

Advantages

Wave Pro 1PM provides professional-grade relay control with dry contacts, allowing compatibility with various voltages and applications. It includes precise power consumption monitoring to track and optimize energy use, plus support for direct associations to execute local actions without a hub. The device supports Security 2 Authenticated encryption for secure communication and features overheating, overpower, and overvoltage protection to enhance safety when installed inside a DIN-rail breaker box.

Key specifications

• Channels: 1 channel
• Load capacity: up to 16 A
• Mounting: DIN-rail (inside breaker box)
• Output type: potential-free (dry contacts)
• Communication: Z-Wave (S800 chip generation)
• Gateway compatibility: works with certified Z-Wave gateways
• Security: Security 2 Authenticated (encrypted communication)
• Features: power monitoring, associations (direct device communication)
• Protections: overheating protection; overpower and overvoltage protection

How to use

Install the Wave Pro 1PM on the DIN-rail inside the breaker box and connect the input and dry-contact outputs according to local electrical codes. Include the device in your Z-Wave network using a compatible gateway; once paired, control connected appliances remotely via your hub or mobile app. Configure schedules, associations, and automation scenes to switch loads, monitor energy usage, and receive notifications for abnormal conditions such as overheating or sudden power increases.

Recommendations

Install and commission Wave Pro 1PM in compliance with local electrical regulations and preferably by a qualified electrician. Use the power monitoring data to set preventative maintenance alerts and energy-saving schedules. Ensure the device is included as Security 2 Authenticated in the Z-Wave network to maintain encrypted communication.
