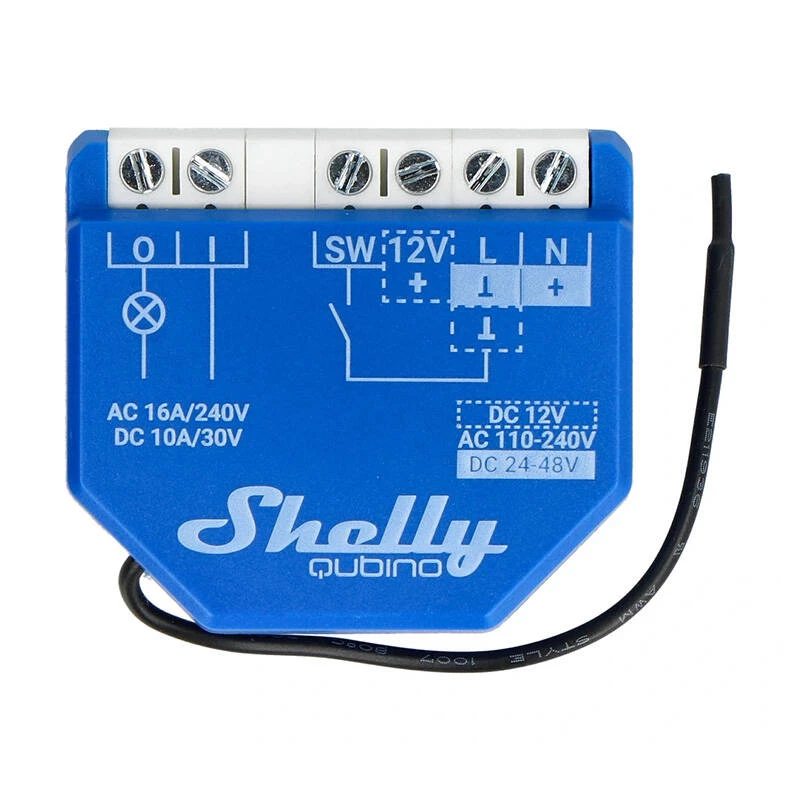

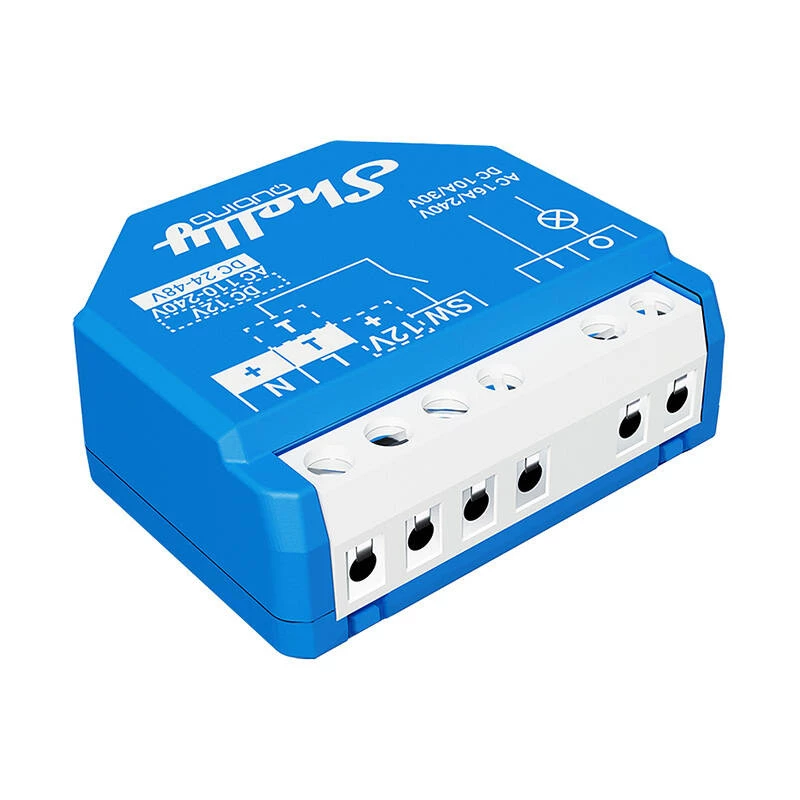

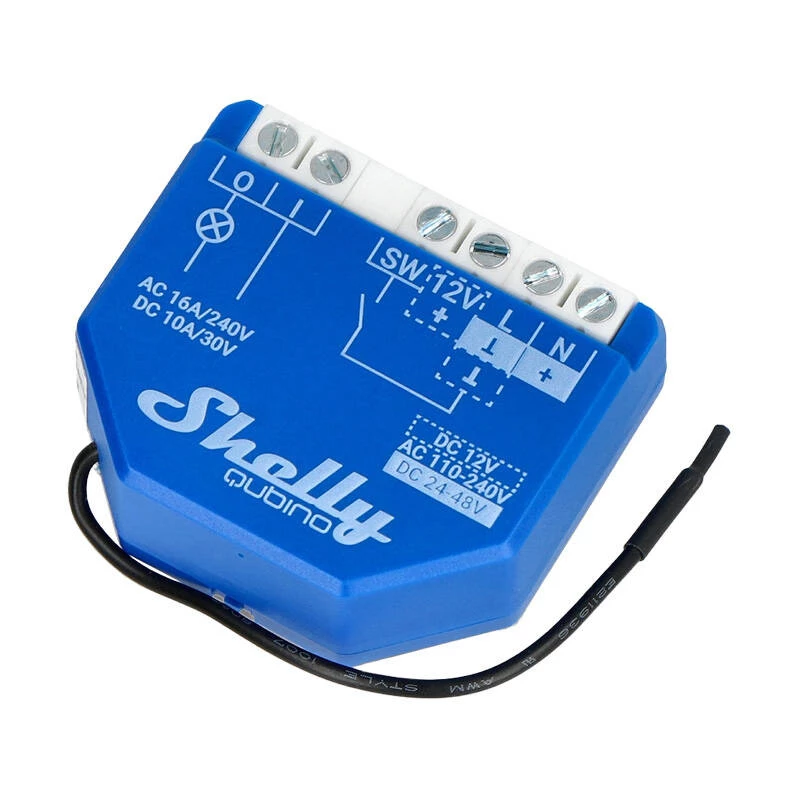

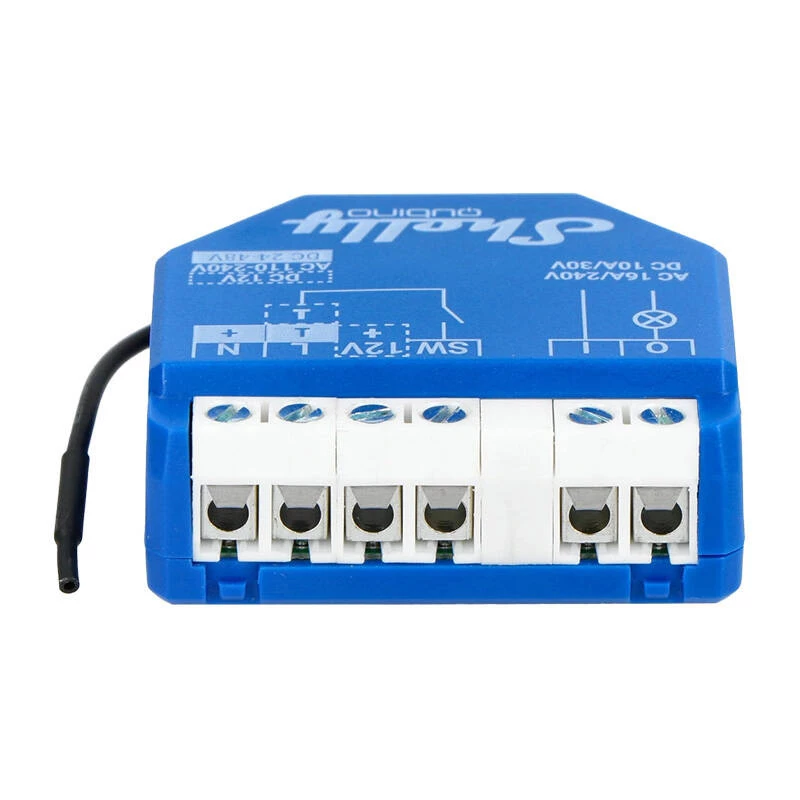

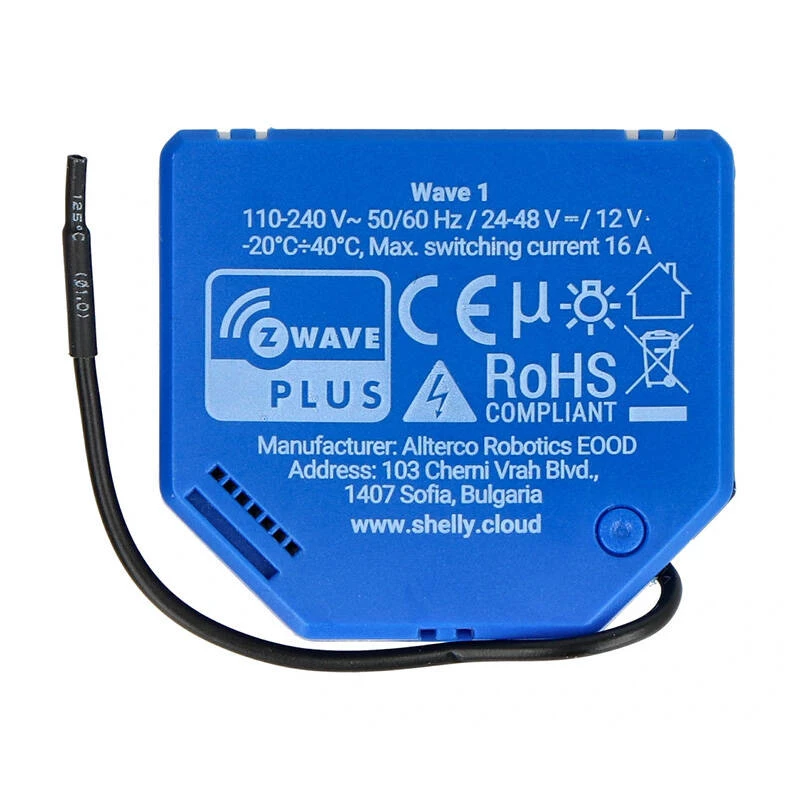

Smart relay Shelly Qubino Wave 1 Plastic 110–240V 16A, Z-Wave 868.4 MHz, blue, wall mount

The Shelly Qubino Wave 1 is a Z-Wave smart switch designed to control a wide range of electrical devices and office equipment. Housed in plastic and compact in size (42 × 16 × 37 mm), the module supports 110–240V AC and 24–48V DC operation and provides a voltage-free (dry) output contact with a switching capacity up to 16 A. It is compatible with Z-Wave gateways and uses the S800 generation Z-Wave chip for reliable integration into Z-Wave smart home networks.

Advantages

Wave 1 offers retrofit installation to fit behind existing switches or sockets, enabling remote control of connected appliances via any certified Z-Wave gateway. The device supports direct device associations for hub-less automations, a wide range of output voltages including low-voltage loads, and can work with more than 4000 Z-Wave certified devices and gateways. Built-in scheduling and scene support allow time- and event-based automation.

Suitable for

• Controlling lights and LED strips
• Operating gates and garage doors
• Managing irrigation and sprinkler systems
• Controlling electrical locks and access systems
• Switching sockets and office equipment

Key specifications

• Brand: Shelly (Qubino series)
• Model / MPN: SHELLY_W_1
• EAN: 3800235269039
• Power supply: 110–240 V AC; 24–48 V DC; also supports 12 V DC for some uses
• Output: dry contact (voltage-free)
• Max switching current: 16 A
• Dimensions: 42 × 16 × 37 mm
• Z-Wave: S800 generation, compatible with certified Z-Wave gateways

How to use

Install the Wave 1 module behind an existing switch or inside an installation box following local electrical regulations. Connect the input and the dry output contacts according to the load type and rated voltages (up to 16 A). Include the device in your Z-Wave network using your Z-Wave gateway and configure its parameters in the gateway app. After inclusion you can control the connected device remotely, set schedules, and create scenes via the gateway interface. For direct device-to-device actions, set associations within the local Z-Wave network.

Recommendations

Use a certified Z-Wave gateway to unlock full functionality (remote control, schedules and scenes). Verify load ratings and wiring before installation and consult a qualified electrician when needed. For garage door control, use the specified DC operational voltages (12 V DC or 24–48 V DC) and ensure safe connections to the garage mechanism.
