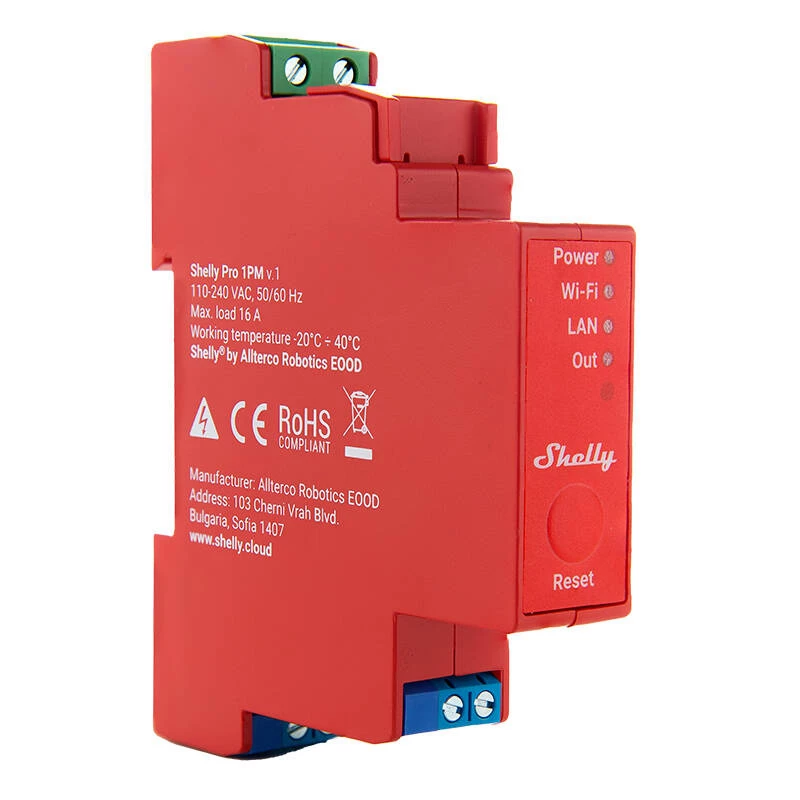

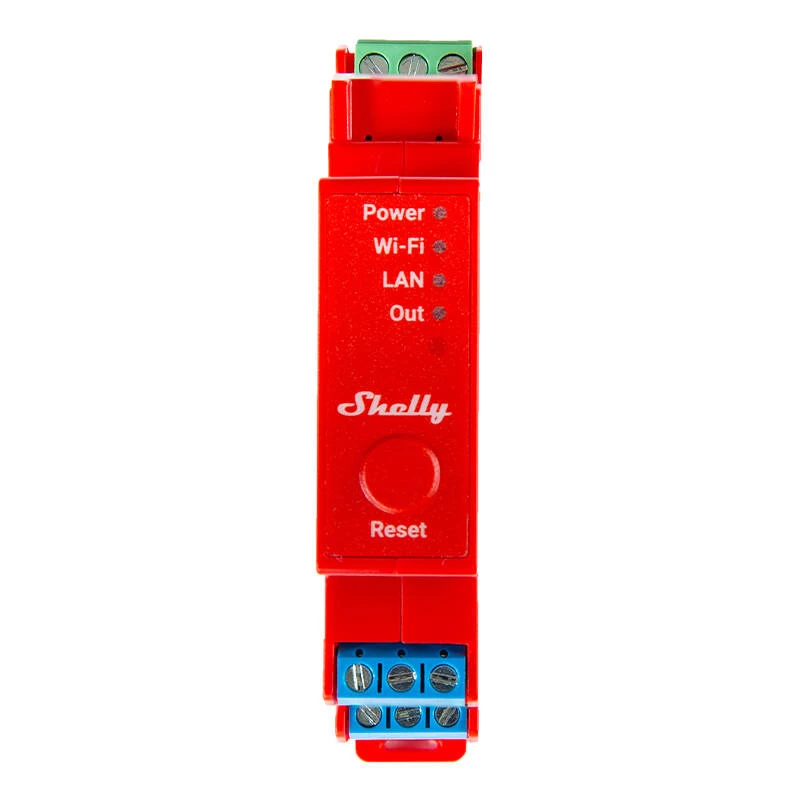

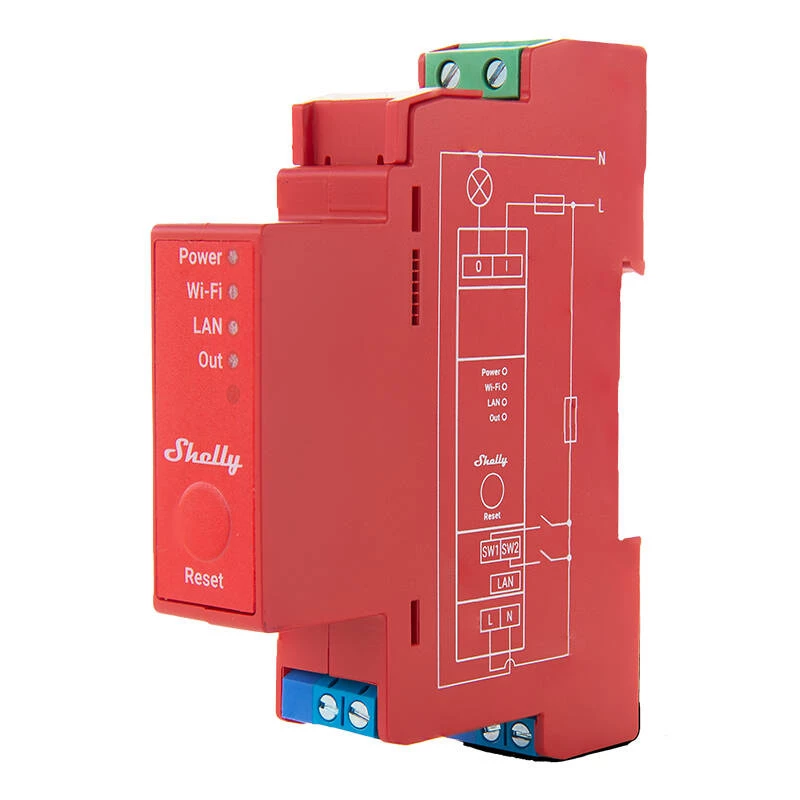

Solid-state relay Shelly Pro 1PM Pink 16A 110-240V

Shelly Pro 1PM is a single-phase, one-channel relay with integrated power metering and a maximum load of 16 A. Designed for installation in a DIN breaker box, it measures precise power consumption of lights and appliances, supports scripting for custom automations, and enables schedules and scenarios to match residential or commercial needs.

Advantages

Shelly Pro 1PM combines a relay and an energy meter in a compact device with built-in temperature, overpower and overvoltage protection. It supports advanced scheduling and scripting, which allows automated scenes based on time, external data, or events. The device is suitable for direct installation in electrical cabinets without extra wiring and provides real-time consumption monitoring and alerts for abnormal power use.

Suitable for

• New home electrical installations
• Office power control and energy saving
• Shops, restaurants and commercial facilities
• Manufacturing and industrial electrical automation

Key specifications

• Type: Single-phase, 1-channel relay
• Max load: 16 A
• Integrated power meter: yes (real-time consumption measurement)
• Protection: temperature, overpower and overvoltage load protection
• Installation: DIN rail / breaker box
• Automation: schedules, scenarios, scripting for custom logic

How to use

Install Shelly Pro 1PM inside the breaker box on a DIN rail and connect the controlled circuit to the relay output. Configure network and device settings according to the manufacturer's instructions, then set schedules, scenarios or write scripts to automate switching and energy monitoring. Use the integrated power meter to track consumption and review historical data to plan usage and costs.

Recommendations

Use smart scheduling to cut power to nonessential office equipment during off-hours, create temperature-based scenes for floor heating with additional sensors such as Shelly Flood, and monitor appliance consumption to detect abnormal increases that may indicate malfunction.
