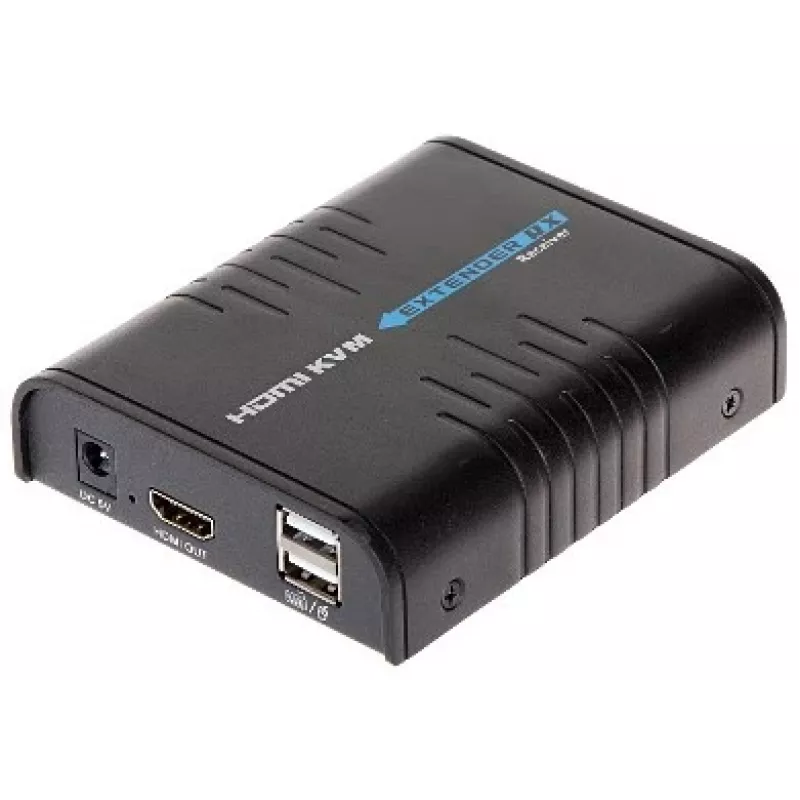

Signal HDMI+USB-EX-100/RX AV signal receiver — HDMI and USB extender (receiver unit)

Signal HDMI+USB-EX-100/RX is the receiver unit of an AV signal extender system designed to restore HDMI video/audio and USB peripheral connections at a remote location. The receiver accepts signals transmitted from a compatible transmitter and outputs them to local displays, speakers and USB devices, enabling flexible placement of source equipment while the receiver is positioned near the end-user equipment.

Advantages

The receiver supports full restoration of HDMI audio and video and transparent USB connectivity for peripherals such as keyboards, mice and cameras. Its compact form factor allows installation near displays or AV racks without occupying significant space. The device removes the need for relocating source equipment by extending signals over the extender link, improving cable management and simplifying conference room, digital signage or KVM setups.

Suitable for

• Extending HDMI displays to remote screens in meeting rooms or classrooms
• Digital signage installations where source media is located away from displays
• Conference rooms requiring local USB peripheral connections for conferencing cameras, microphones or control devices
• Remote KVM access and USB peripheral sharing in office or industrial environments

Key specifications

• Outputs: HDMI video and audio output; USB ports for peripheral connectivity
• Compatibility: Works with the matching transmitter unit as part of the extender system
• Form factor: Compact receiver housing suitable for placement near displays or AV cabinets
• Signal handling: Restores transmitted HDMI video/audio and provides transparent USB pass-through for peripherals

How to use

Install the receiver near the target display or USB devices and connect the HDMI cable from the receiver's HDMI output to the display's HDMI input. Connect required USB peripherals to the receiver's USB ports. Power the receiver according to the extender system requirements and ensure the compatible transmitter is connected to the source device and powered. The receiver will restore the remote HDMI and USB signals, making the display and peripherals available to the source.

Recommendations

Place the receiver close to the display and USB devices to minimize additional cable runs. Use high-quality HDMI and USB cables of appropriate length and verify compatibility between the receiver and its paired transmitter. For reliable operation in professional installations, mount the receiver in an accessible location for simple maintenance and ensure stable power to both transmitter and receiver units.
