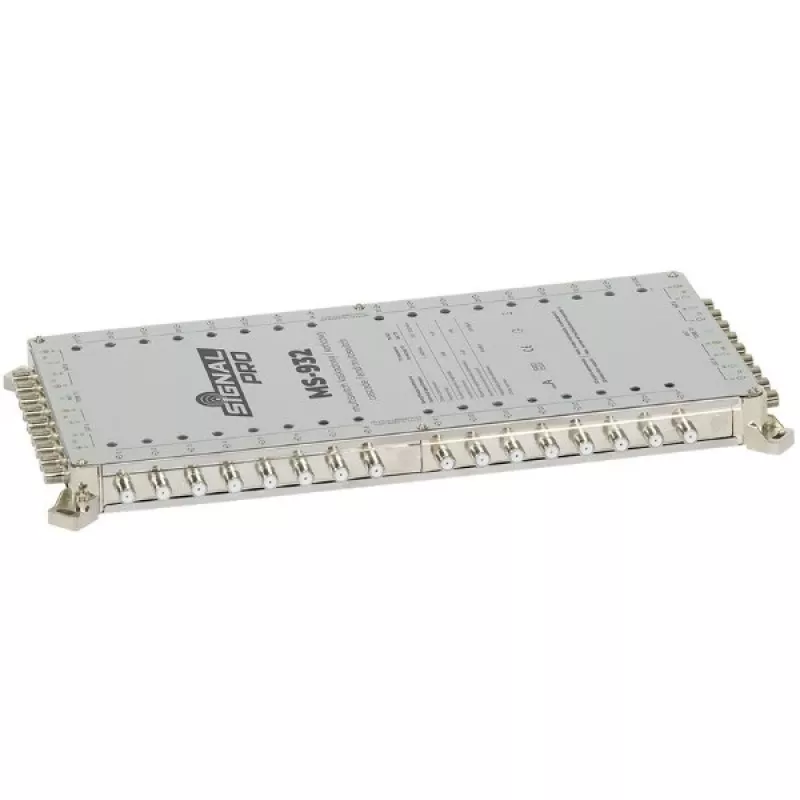

SIGNAL Multiswitch MS-932 9 Inputs / 32 Outputs

The SIGNAL Multiswitch MS-932 is a high-performance distribution amplifier designed for satellite and terrestrial TV signals. With 9 inputs (8 satellite, 1 terrestrial) and 32 user outputs, it is ideal for large residential or commercial installations requiring reliable signal distribution to multiple receivers.

Advantages

This multiswitch ensures minimal signal loss with a satellite trunk gain of -2 dB and terrestrial trunk gain of -2 dB. It supports DiSEqC 2.0 switching protocol, compatible with 1.0/1.1, and provides LNB power supply (13V/18V, 0/22kHz). The internal power supply (AC 100-240V, 50/60Hz) simplifies installation, and the wall-mountable design saves space.

Suitable for

• Large apartment buildings
• Hotels and hospitality venues
• Office complexes
• Any multi-dwelling unit (MDU) requiring up to 32 TV outlets

Key specifications

• Number of Satellite Inputs: 8
• Number of Terrestrial Inputs: 1
• Number of User Outputs: 32
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite Trunk Gain: -2 dB
• Terrestrial Trunk Gain: -2 dB
• Satellite Tap Gain (User Output): 0 dB
• Terrestrial Tap Gain (User Output): -2 dB
• LNB Power Supply: 13V/18V, 0/22kHz
• Switching Protocol: DiSEqC 2.0 (compatible with 1.0/1.1)
• Input/Output Impedance: 75 Ohm
• Power Supply: Internal AC 100-240V, 50/60Hz
• Max Power Consumption: 25 W
• Isolation (SAT-SAT): >30 dB
• Isolation (SAT-TER): >30 dB
• Connector Type: F-type
• Mounting Type: Wall mountable
• Operating Temperature: -20 to +50 °C
• Terrestrial Path Type: Active (Tap)

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with most satellite and terrestrial TV systems. Professional installation recommended.
