SIGNAL Fan Panel A19-2W for 19 inch Rack 2U 2 Fans 160m³/h 230V Black

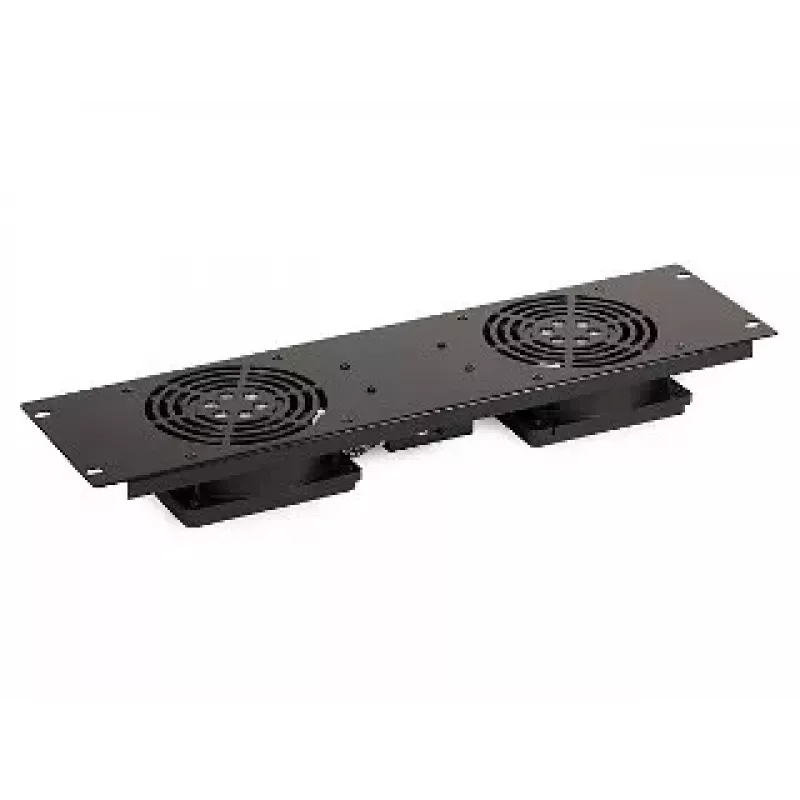

The SIGNAL A19-2W is a professional 19-inch rack fan panel designed for efficient cooling of network and server equipment. Equipped with two high-performance axial fans, it delivers a total airflow of 160 m³/h while maintaining a low noise level of 40-45 dB. The panel fits into a standard 2U rack space and is constructed from powder-coated steel for durability. It operates on 230V AC power via an IEC C14 inlet, making it suitable for various rack environments.

Advantages

Reliable and continuous cooling for rack-mounted equipment. Easy front-mount installation in any 19-inch rack. Low noise operation ensures minimal disturbance in office or data center environments. Robust steel housing with black finish blends seamlessly with existing rack infrastructure.

Suitable for

• Cooling network switches, routers, and patch panels in server racks
• Ventilating enclosed rack cabinets to prevent overheating
• Use in data centers, telecom rooms, and industrial control cabinets

Key specifications

• Rack Compatibility: 19-inch, 2U height
• Number of Fans: 2 (axial, 120x120x38 mm each)
• Total Airflow: 160 m³/h
• Noise Level: 40-45 dB
• Input Voltage: 230V AC, 50/60 Hz
• Power Consumption: 44 W
• Power Connector: IEC C14 inlet
• Housing Material: Powder-coated steel
• Color: Black
• Operating Temperature: 0°C to 50°C
• Humidity: 10% - 90% RH (non-condensing)

Recommendations

For optimal cooling performance, install the fan panel at the top or bottom of the rack to promote airflow. Ensure the rack has adequate ventilation openings. This panel does not include thermostat or on/off switch; consider using a separate temperature controller if needed.
