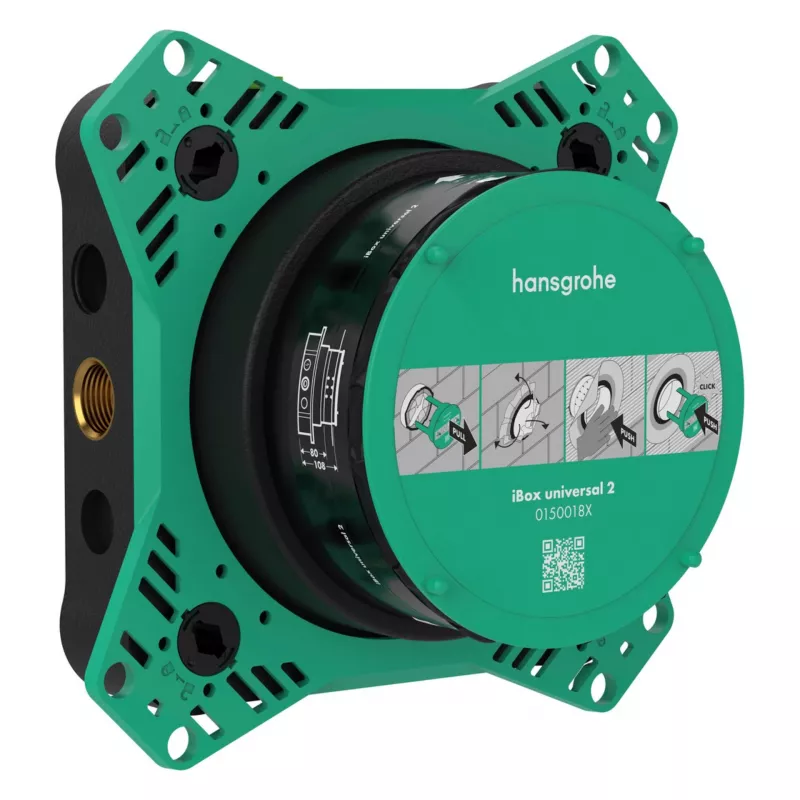

Hansgrohe iBox Universal 2 Basic Set Concealed Installation Unit

The Hansgrohe iBox Universal 2 Basic Set is a concealed installation unit designed for modern shower and bath mixers and thermostats. It provides a reliable and flexible foundation for your bathroom fixtures, ensuring easy installation and future upgrades.

Advantages

This basic set offers sound-decoupled installation for reduced noise transmission, a pre-mounted sealing flange for water protection, and 360° rotational symmetry for flexible alignment. It supports easy future upgrades and maintenance without removing the wall cladding.

Suitable for

• Hansgrohe shower and bath mixers and thermostats
• Wall-mounted concealed installations
• New constructions and renovations

Key specifications

• Product Type: Concealed Installation Unit
• Connection Size: G ¾
• Number of Inlets: 2 (Hot/Cold)
• Number of Outlets: Supports 1 or 2 (depending on trim set)
• Min. Installation Depth: 80 mm
• Max. Installation Depth: 108 mm
• Material: Brass, High-quality Plastic
• Sound Insulation: Yes
• Water Protection: Yes, Integrated sealing flange
• Rotational Symmetry: 360°
• Min. Operating Pressure: 1 bar
• Max. Operating Pressure: 10 bar
• Recommended Operating Pressure: 1.5 - 5 bar
• Max. Hot Water Temperature: 80°C
• Compatibility: Hansgrohe iBox Universal 2 Trim Sets

Recommendations

For optimal performance, use with Hansgrohe iBox Universal 2 trim sets. Ensure installation depth between 80 and 108 mm. Professional installation recommended.
