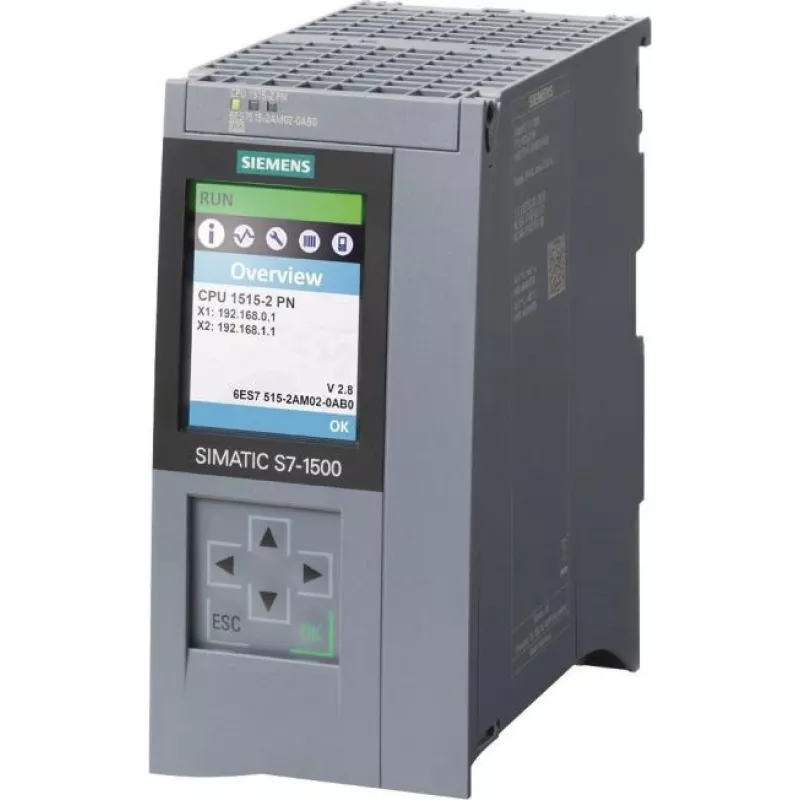

Siemens SIMATIC S7-1500 CPU 1515-2 PN, 500 KB Program Memory, 3 MB Data Memory, 2 PROFINET Interfaces, 3-Port Switch, 24 V DC 6ES75152AM020AB0

Industrial automation demands a control system that delivers high-speed processing, robust communication, and reliable operation in demanding environments. The Siemens SIMATIC S7-1500 CPU 1515-2 PN (6ES7515-2AM02-0AB0) addresses these challenges with a powerful standard CPU featuring a 1 ns bit performance, 500 KB program memory, and 3 MB data memory. This central processing unit is engineered for complex machine and plant automation, offering integrated PROFINET IRT and RT interfaces with a 3-port switch, plus advanced technology functions like motion control and PID control.

Who is it for

This CPU is ideal for machine builders, system integrators, and plant engineers who need a high-performance controller for mid-sized to large automation projects. It suits applications requiring fast response times, extensive I/O connectivity, and seamless integration into PROFINET networks. Whether you are upgrading an existing S7-300/400 system or building a new S7-1500 installation, this CPU provides the processing power and communication flexibility to meet your needs.

Main features

• High-speed processing: 1 ns bit performance for demanding control tasks.
• Generous memory: 500 KB program memory and 3 MB data memory for complex programs.
• Dual PROFINET interfaces: PROFINET IRT with 2-port switch and PROFINET RT for flexible networking.
• Integrated 3-port Ethernet switch: Connect multiple devices without external switches.
• Advanced technology functions: Integrated motion control and PID control for precise automation.
• Integrated web server and display: Easy diagnostics and status monitoring.
• Support for up to 32 modules in central rack: Expandable I/O capacity.
• Communication protocols: PROFINET IO Controller/Device, OPC UA Server, Open User Communication.

Specifications

• CPU Type: Standard CPU
• Program Memory: 500 KB
• Data Memory: 3 MB
• PROFINET Interfaces: 2 (IRT with 2-port switch, RT)
• Integrated Ethernet Ports: 3
• Bit Performance: 1 ns
• Supply Voltage: 24 V DC
• Power Loss: 7.5 W
• Max. Connectable IO Modules: 32 (central rack)
• Operating Temperature: 0 °C to 60 °C (horizontal mounting)
• Required Memory Card: SIMATIC Memory Card
• Integrated Web Server: Yes
• Integrated Display: Yes, with diagnostic functions
• Communication Protocols: PROFINET IO Controller/Device, OPC UA Server, Open User Communication
• Integrated Technology Functions: Motion Control, PID Control

Tips

To ensure optimal performance, use a SIMATIC Memory Card (not included) for program storage and firmware updates. Mount the CPU horizontally for the full operating temperature range. For high-availability applications, consider pairing with a redundant system. Leverage the integrated web server for remote diagnostics and monitoring without additional software.
