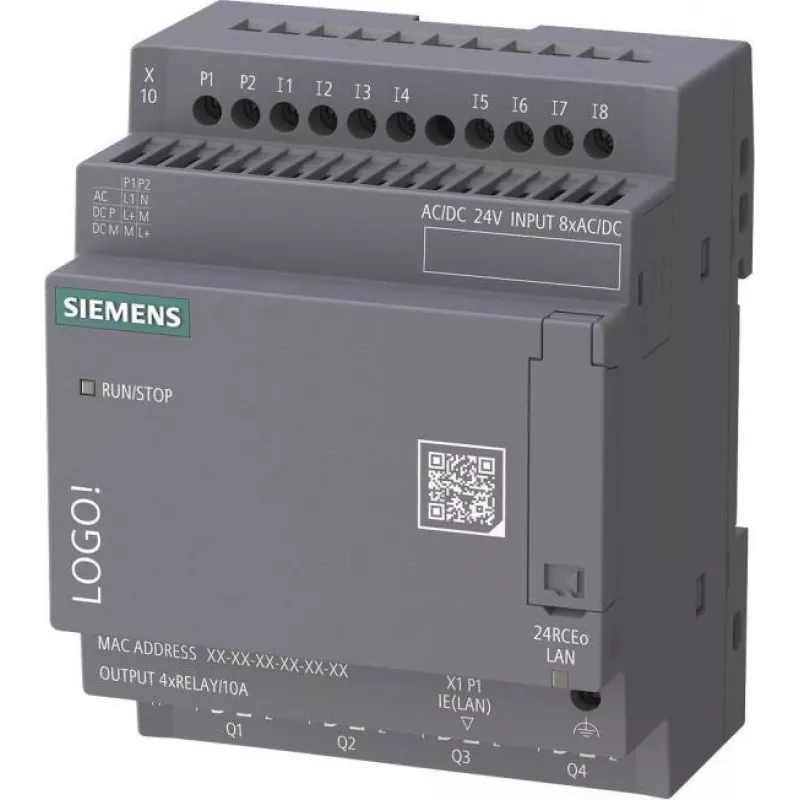

Siemens LOGO! 24 RCEo 6ED1052-2HB08-0BA3 Logic Module, 24V AC/DC, 8 DI/4 AI/4 DQ Relay, No Display, Ethernet

The Siemens LOGO! 24 RCEo is a compact logic module from the LOGO! 8.3 series, designed for basic control tasks in industrial and building automation. It operates on 24V AC/DC and features 8 digital inputs (4 configurable as analog inputs), 4 relay outputs (10A each), and an integrated Ethernet interface with web server, datalogging, and cloud connectivity. The module is DIN rail mountable, IP20 rated, and expandable with LOGO! expansion modules.

Advantages

Flexible input configuration, integrated Ethernet for remote access, and easy programming with LOGO! Soft Comfort software. The relay outputs handle high currents, and the microSD slot enables data logging and web page storage.

Suitable for

• Industrial control cabinets
• Building automation (lighting, HVAC)
• Small-scale automation projects
• Educational training systems

Key specifications

• Power supply: 24V AC/DC
• Digital inputs: 8 (4 as analog inputs)
• Digital outputs: 4 relay, 10A each
• Display: No
• Real-time clock: No
• Communication: Ethernet
• Integrated web server: Yes
• Datalogging: Yes
• Cloud connectivity: Yes
• Memory card slot: microSD
• Programming software: LOGO! Soft Comfort V8.3+
• Mounting: DIN rail 35mm
• Protection class: IP20
• Operating temperature: 0 to 55°C
• Dimensions: 71.5 x 90 x 58 mm (W x H x D)
• Weight: 0.19 kg

Recommendations

For applications requiring a display or real-time clock, consider the LOGO! 24 RCE or LOGO! 24 RCL models. Use LOGO! Soft Comfort for programming and LOGO! expansion modules for additional I/O.
