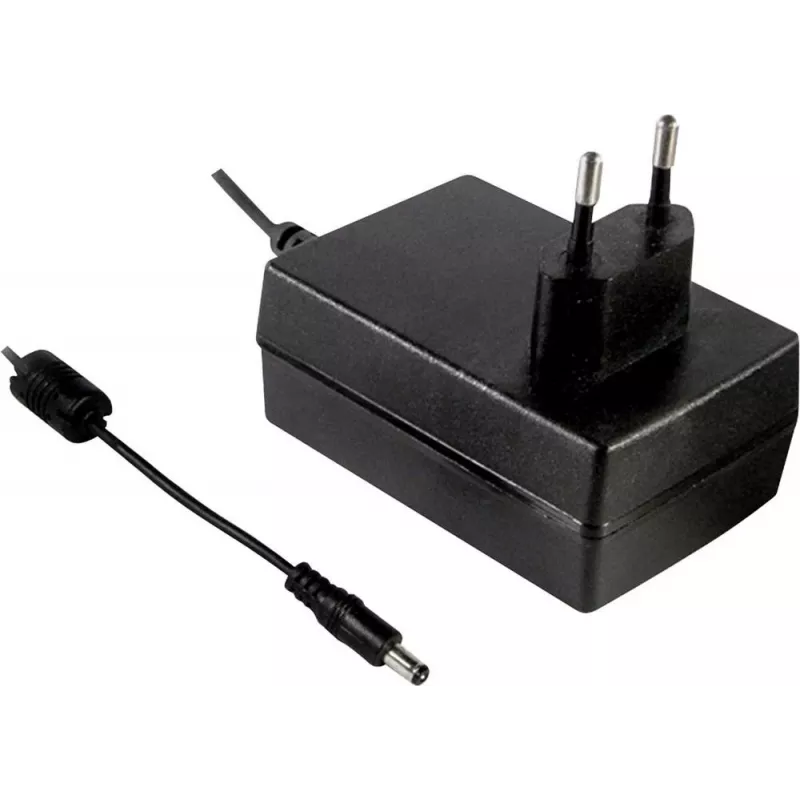

MEAN WELL GST36E24-P1J 36W 24V DC 1.5A AC/DC Power Supply with 2.1x5.5mm Plug

The MEAN WELL GST36E24-P1J is a 36-watt wall-mount AC/DC adapter that delivers a regulated 24V DC output at up to 1.5A. Unlike generic power bricks, it combines a wide 90–264VAC input range, Level VI efficiency, and a compact, fully enclosed case that meets international safety standards. The fixed 2.1×5.5mm centre-positive barrel plug makes it a direct fit for many CCTV cameras, LED strips, routers, and industrial devices that require clean, stable power.

Highlights

• 36W continuous output with 24V DC / 1.5A rating
• Universal AC input: 90–264VAC, 47–63Hz
• High efficiency up to 89% and no-load consumption below 0.075W
• Level VI energy efficiency compliance
• IEC 320-C8 inlet (figure-8) with interchangeable AC cord options
• DC connector: 2.1×5.5×11mm barrel, centre positive
• Protections: overload, overvoltage, short circuit
• Wide operating temperature: -30°C to +70°C
• Safety approvals: UL 62368-1, TUV EN 62368-1, EAC; CE, RoHS

In daily use

Connect the GST36E24-P1J to any mains outlet with a standard C7 cord, and it immediately provides a stable 24V rail for sensitive electronics. The low ripple and noise (150mVp-p) ensure clean power for audio, LED lighting, or measurement equipment. The compact, lightweight housing stays cool even under full load, and the long DC cable with moulded strain relief resists everyday wear. Because the plug polarity is centre positive, always verify your device’s requirement before connecting.

Full specifications

• Brand: MEAN WELL
• Model: GST36E24-P1J
• Output voltage: 24V DC
• Output current: 1.5A
• Output power: 36W
• Input voltage: 90–264VAC
• Input frequency: 47–63Hz
• Efficiency: up to 89%
• No-load power: <0.075W
• Energy efficiency level: Level VI
• AC input connector: IEC 320-C8 (C8 inlet)
• DC output connector: 2.1×5.5×11mm barrel, centre positive
• Ripple & noise: 150mVp-p
• Protections: overload, overvoltage, short circuit
• Operating temperature: -30°C to +70°C
• Safety standards: UL 62368-1, TUV EN 62368-1, EAC
• Compliance: CE, RoHS
• MTBF: >100,000 hours

Final note

For reliable 24V power in a compact, energy-efficient package, the MEAN WELL GST36E24-P1J is a proven choice. Its international safety certifications and robust design make it suitable for both professional and DIY applications.
