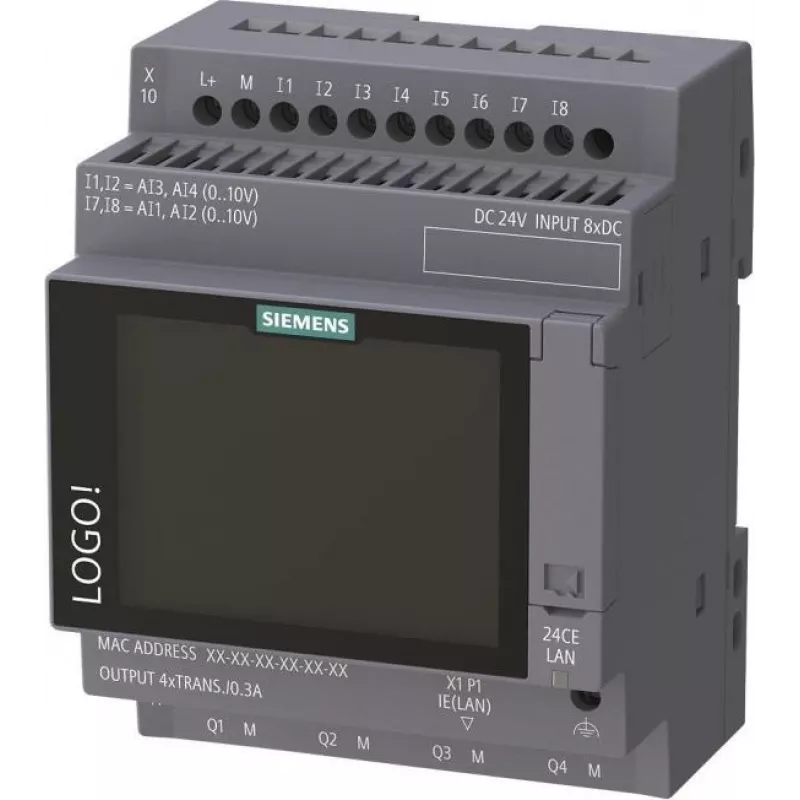

Siemens LOGO! 24 CE Logic Module 6ED1052-1CC08-0BA3

The Siemens LOGO! 24 CE is a compact logic module from the LOGO! 8.3 series, designed for simple automation tasks. It features an integrated display, 24 V DC power supply, 8 digital inputs (4 usable as analog), 4 transistor outputs, Ethernet interface, and real-time clock. Ideal for small control systems in building and industrial automation.

Advantages

Easy programming with LOGO! Soft Comfort, integrated web server for remote monitoring, expandable up to 24 DI/20 DQ/8 AI/8 AQ, and cloud connectivity via LOGO! Access Tool.

Suitable for

• Lighting control
• HVAC control
• Small machine control
• Home automation

Key specifications

• Power supply: 24 V DC
• Digital inputs: 8 (4 shared as analog)
• Digital outputs: 4 (transistor)
• Program memory: 400 blocks
• Ethernet interface: RJ45
• Real-time clock with automatic DST adjustment
• Data logging and user-defined web pages
• Operating temperature: -20 to +55 °C
• Protection class: IP20
• Mounting: DIN rail

Recommendations

For extended I/O, use LOGO! expansion modules. Program with LOGO! Soft Comfort V8.3 or higher.
