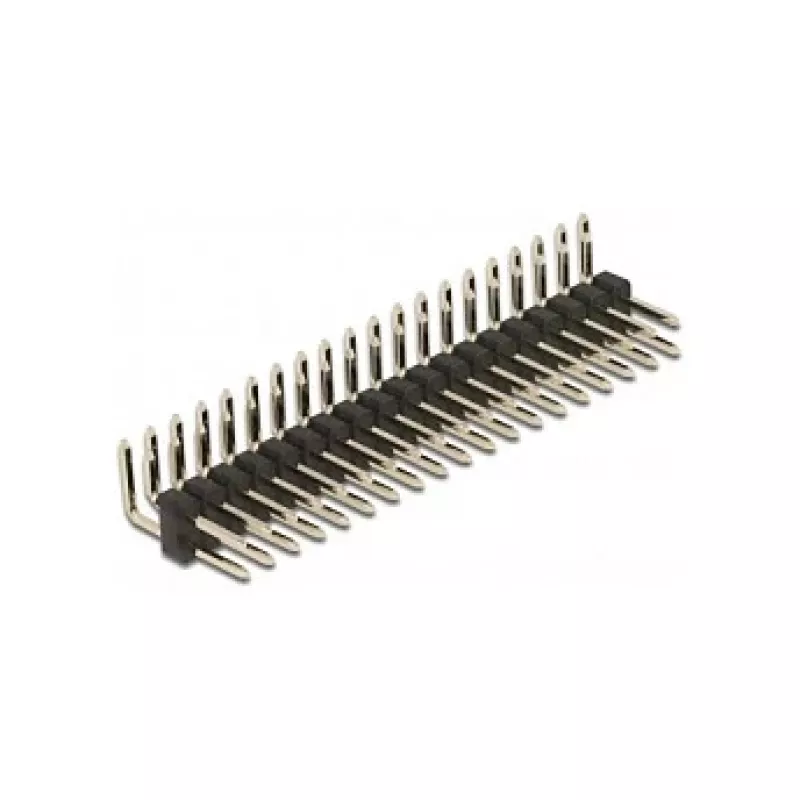

Pin header DeLOCK 66702 Printed Circuit Board (PCB) accessory

The DeLOCK 66702 pin header is an accessory for printed circuit boards (PCBs) that provides a reliable electrical and mechanical connection between individual boards or modules. It combines metal contacts with a plastic insulator and is finished in black and metallic tones. With compact dimensions, it is intended for use in various electronic assemblies where a durable PCB interconnect is required.

Advantages

The pin header offers a sturdy metal contact construction for consistent signal transmission and a plastic housing that facilitates soldering and board mounting. Its compact size and standard form factor simplify integration into existing PCB layouts, while the black and metallic finish supports clear polarity and alignment during installation.

Suitable for

• Connecting stacked or adjacent printed circuit boards
• Prototyping and custom electronic assemblies
• Board-to-board signal and low-power connections in devices
• Repair or replacement of existing PCB header connectors

Key specifications

• Brand: DELOCK
• Model / MPN: 66702
• EAN: 4043619667024
• Material: metal contacts with plastic insulator
• Finish: black and metallic
• Dimensions: 50.8 mm (length) x 12.9 mm (depth) x 5 mm (height)
• Category: Printed circuit board (PCB) accessory

How to use

Place the pin header into the designated holes on the PCB so that the plastic insulator aligns with the board surface and the metal pins protrude through the solder side. Secure the header by soldering each pin to the board pads, ensuring good solder joints and correct orientation. After soldering, verify electrical continuity and mechanical stability before assembling connected modules or enclosures.

Recommendations

Use appropriate soldering equipment and ESD precautions when handling and installing the pin header. Verify pin alignment and spacing against your PCB design to ensure compatibility with mating connectors or board layouts.
