Pin header DeLOCK 66690 Printed Circuit Board (PCB) accessory

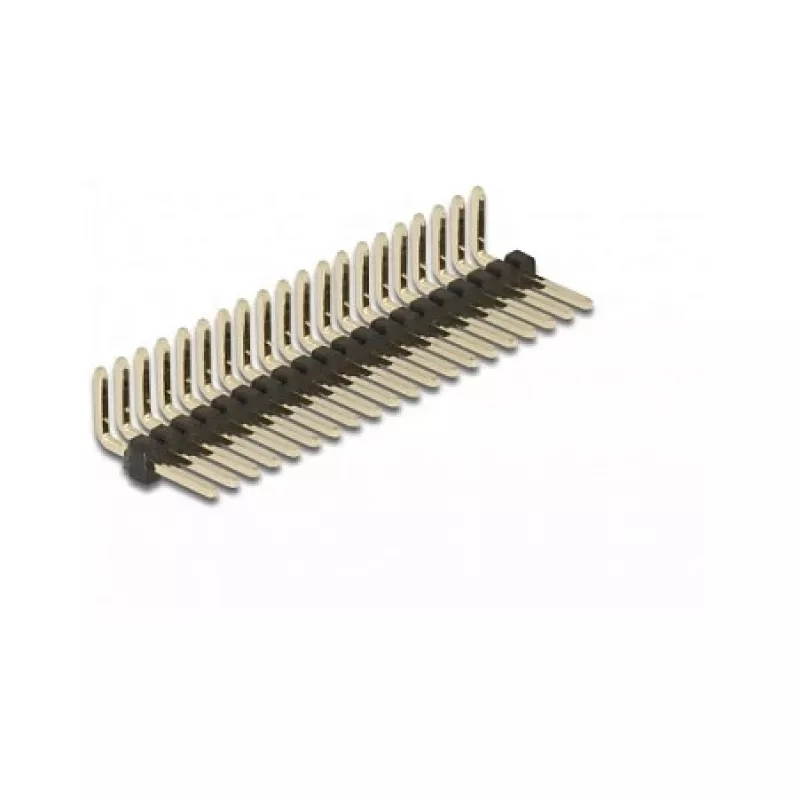

The DeLOCK 66690 pin header is an accessory for printed circuit boards that enables electrical connections between individual PCBs. It is made of metal and plastic with a black and metallic finish and is supplied as a set of five pieces. The compact dimensions (25.4 mm length, 7.4 mm depth, 2 mm height) allow easy integration into a variety of PCB layouts.

Advantages

The pin header offers a straightforward mechanical and electrical connection solution for PCBs and is delivered in a small multi-piece set to cover several connection points. Its metal contacts and plastic housing provide stable performance and simple soldering or insertion into standard PCB holes. The black and metallic colour scheme helps with component identification on the board.

Suitable for

• Connecting two printed circuit boards
• Prototyping and electronic hobby projects
• Repairing or extending existing PCB assemblies
• Use in compact electronic devices with limited space

Key specifications

• Brand: DELOCK
• Model / MPN: 66690
• EAN: 4043619666904
• Quantity: 5 pieces
• Material: metal contacts and plastic housing
• Colour: Black, Metallic
• Dimensions: 25.4 mm (length) x 7.4 mm (depth) x 2 mm (height)
• Category: PC Internal Cables / PCB accessory

How to use

Position the pin header so the pins align with the corresponding holes on the PCB, then solder the pins to the board pads or insert the header into a compatible socket if applicable. Ensure correct orientation before soldering and verify solder joints for mechanical stability and electrical continuity after assembly.

Recommendations

For reliable results, use appropriate soldering tools and follow standard ESD precautions when handling the pin header and PCB. Check compatibility with your board hole spacing and mounting method prior to assembly.
