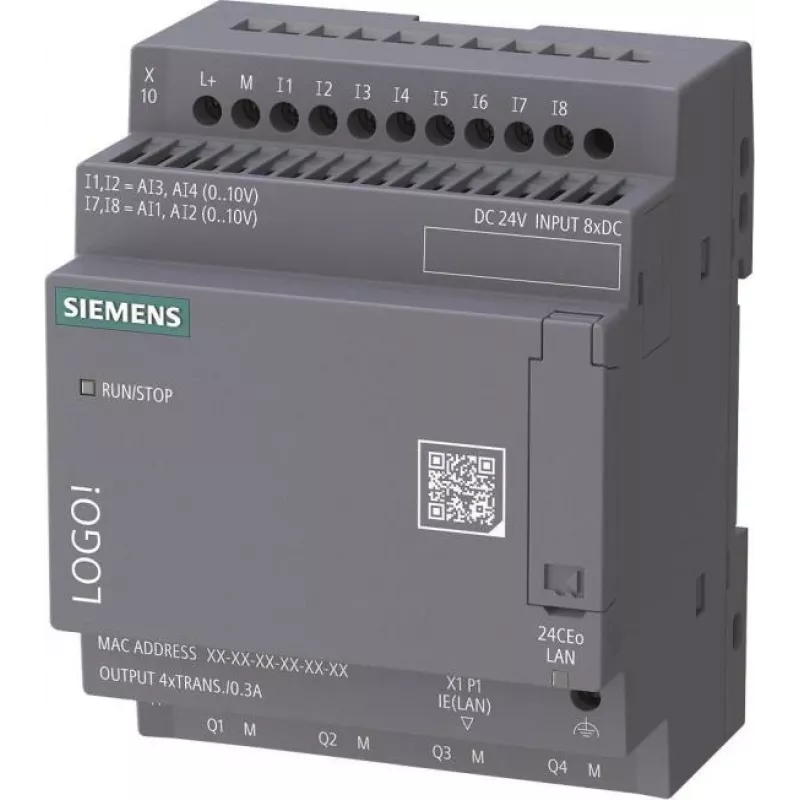

Siemens LOGO! 24 CEo Base Module without Display DC 24V

The Siemens LOGO! 24 CEo Base Module (6ED1052-2CC08-0BA3) is a compact logic module from the LOGO! 8.3 series, designed for basic control tasks in industrial and building automation. It operates on 24V DC and features 8 digital inputs (4 analog-capable), 4 transistor outputs, an integrated Ethernet interface, and a real-time clock. Without a display, it offers a cost-effective solution for applications where local operator interaction is not required.

Advantages

This base module provides a reliable and flexible foundation for automation projects. Its modular expandability allows you to add I/O modules as needed. The integrated web server enables remote monitoring and control via standard web browsers. With a program memory of 400 blocks and compatibility with LOGO! Soft Comfort V8 or higher, programming is straightforward. The device supports data logging and user-defined web pages for customized visualization.

Suitable for

• Industrial control systems
• Building automation (lighting, HVAC, shading)
• Machine control
• Small-scale automation projects

Key specifications

• Product Type: Logic Module (Base Module)
• Series: LOGO! 8.3
• Display: No
• Power Supply Voltage: 24V DC
• Number of Digital Inputs: 8
• Number of Analog Inputs: 4 (shared with digital inputs)
• Output Type: Transistor
• Number of Digital Outputs: 4
• Program Memory: 400 blocks
• Expandability: Modularly expandable
• Protection Class: IP20
• Mounting Type: DIN rail
• Operating Temperature: 0 to 55 °C
• Communication Interface: Integrated Ethernet
• Real-time Clock: Yes (with automatic daylight saving time adjustment)
• Integrated Features: Web server, data logging, user-defined web pages

Recommendations

For optimal performance, use LOGO! Soft Comfort V8 or higher for programming. This module is ideal for applications requiring reliable logic control without a local display. Pair with expansion modules from the LOGO! 8.3 series to increase I/O count.
