Satellite multiswitch Televes 714502 5 inputs 11 outputs

The Televes 714502 satellite multiswitch provides reliable distribution of satellite and terrestrial signals. It has 5 inputs (one terrestrial and four satellite polarities) and 11 outputs, with a frequency range of 950–2400 MHz. Each user output includes a 12 dB potentiometer for individual level adjustment. The unit supports cascade or star topology installations and can be powered directly from a satellite receiver or via remote feeding (VL).

Advantages

The multiswitch includes a 12 dB potentiometer on every user output to fine-tune signal levels per receiver. A built-in switch allows powering of terrestrial pre-amplifiers or enables current circulation. It supports current circulation between inputs and cascades and offers active terrestrial input handling. Designed and manufactured in Europe, the device is compact and suitable for multi-receiver setups without requiring an external power supply in many configurations.

Suitable for

• Residential or small commercial satellite TV distribution
• Installations requiring cascade or star topology
• Setups where individual level adjustment per receiver is needed
• Systems using remote power feeding (VL) or receiver power

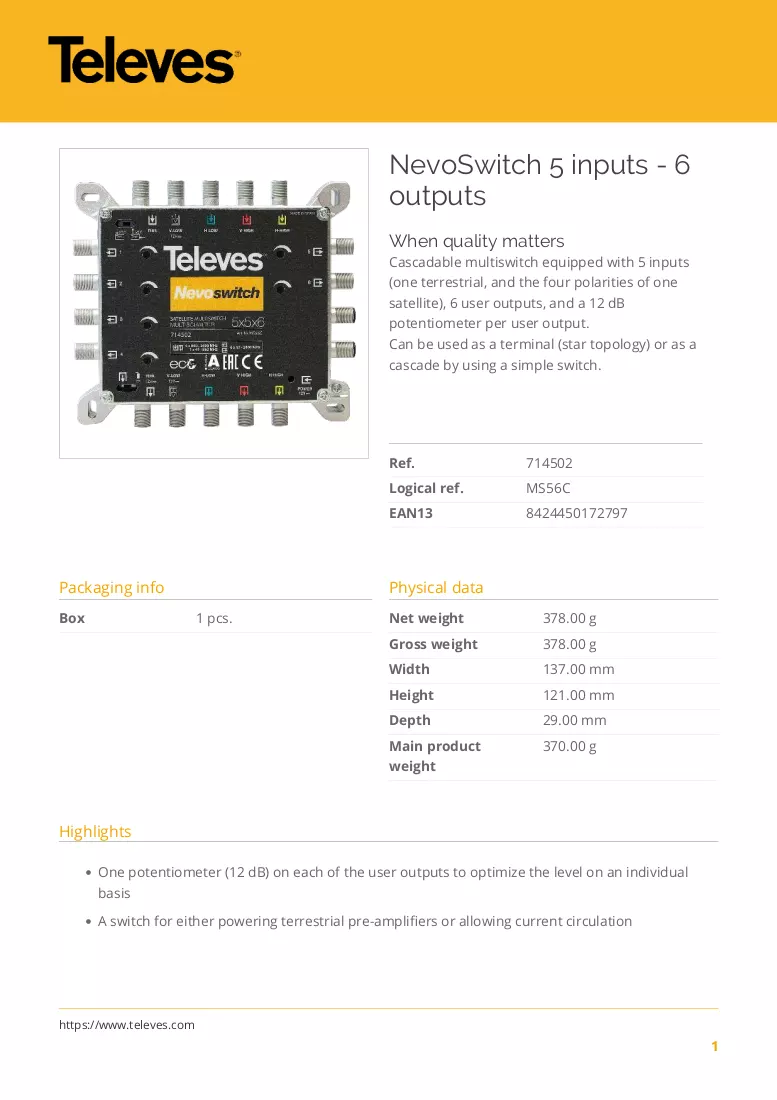

Key specifications

• Inputs: 5 (1 terrestrial + 4 satellite polarities)
• Outputs: 11
• Frequency range: 950–2400 MHz
• Level adjustment: 12 dB potentiometer per user output
• Operating voltage: 12 V
• Signal range: 92–105 dBµV
• Current consumption: 40 mA
• Dimensions (W×D×H): 137 × 29 × 121 mm
• Weight: 0.37 kg

How to use

Install the multiswitch using either star topology as a terminal or cascade it with other units via the dedicated switch. Connect the terrestrial antenna to the terrestrial input and the satellite LNB polarities to the four satellite inputs. Adjust each user output level with the 12 dB potentiometers to achieve balanced signal strength for each receiver. Power the unit from a compatible satellite receiver when supported, or enable remote feeding (VL) or the internal switch to supply a terrestrial pre-amplifier as required.

Recommendations

For stable long-term performance, verify receiver compatibility for power feeding before relying on receiver-supplied power; use remote feeding or a dedicated power supply in larger installations or when multiple cascades are used. Ensure proper grounding and follow local installation standards.
