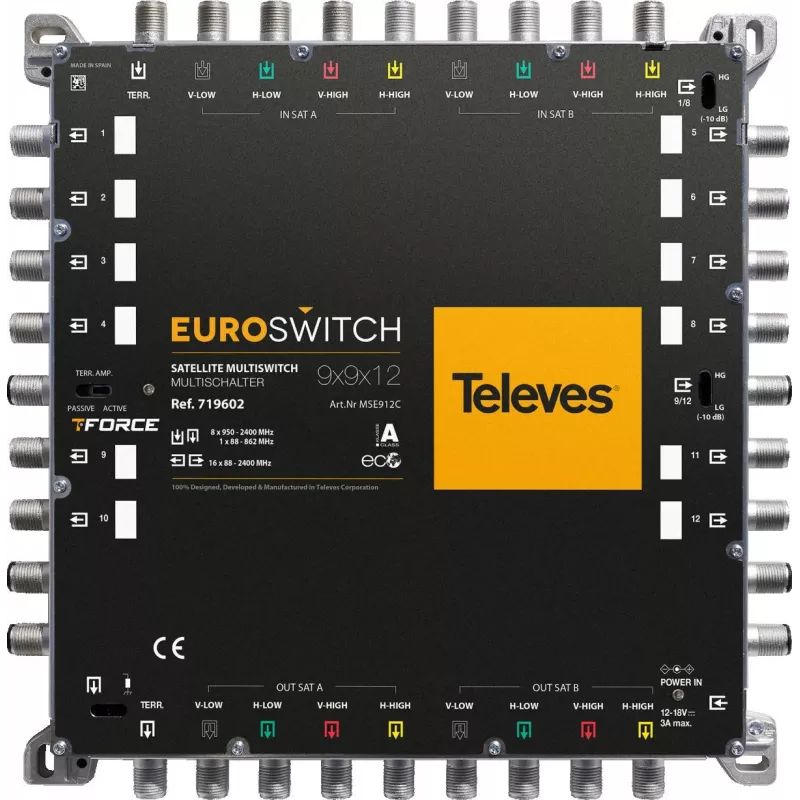

Televes EUROSWITCH 9x9x12 Multiswitch 719602

The Televes EUROSWITCH 9x9x12 Multiswitch (ref. 719602) is a high-performance distribution hub designed for satellite and terrestrial TV signals. It enables the connection of up to 9 subscriber outputs from 8 satellite inputs and 1 terrestrial input, making it ideal for multi-dwelling units or complex installations.

Advantages

This multiswitch offers reliable signal distribution with high isolation between ports, ensuring minimal interference. It supports DiSEqC 2.0 protocol for advanced switching and is wall-mountable for easy installation. The internal power supply simplifies setup.

Suitable for

• Multi-dwelling buildings requiring satellite and terrestrial TV distribution
• Professional installers seeking a robust and scalable solution
• Systems with up to 9 subscriber outlets

Key specifications

• Inputs: 8x Satellite (SAT) + 1x Terrestrial (TER)
• Outputs: 9x Subscriber
• Satellite frequency range: 950-2150 MHz
• Terrestrial frequency range: 47-862 MHz
• Return path: 5-65 MHz (passive)
• Satellite output level: 95 dBµV
• Terrestrial output level: 85 dBµV
• LNB power: 18V DC, 500mA max
• Switching: DiSEqC 2.0
• Connectors: F-Type
• Power: 230V AC, 50/60Hz, 10W max
• Operating temperature: -5 to +45 °C

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is compatible with DiSEqC 1.0/1.1/2.0 controllers.
