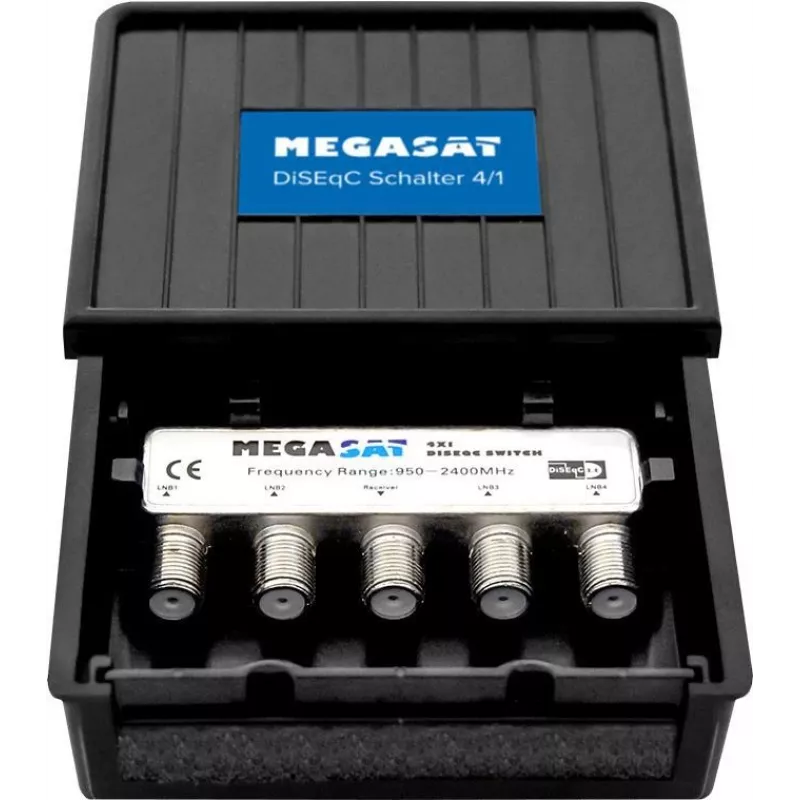

Satellite Multiswitch Megasat DiSEqC Switch 4-1 Pro

Satellite Multiswitch Megasat DiSEqC Switch 4-1 Pro
Satellite Multiswitch Megasat DiSEqC Switch 4-1 Pro
R372
The Megasat DiSEqC Switch 4-1 Pro enables switching of up to four satellite LNBs to a single satellite receiver. The device operates across the satellite IF frequency band and is housed in a weatherproof enclosure suitable for outdoor installation. No external power supply is required for operation.... Read More
Stock 17 Code 2218400 Brand MEGASAT Model 600137 Warranty 2 Years

Shipping & Returns

Estimated delivery Tuesday, October 6
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

The Megasat DiSEqC Switch 4-1 Pro enables switching of up to four satellite LNBs to a single satellite receiver. The device operates across the satellite IF frequency band and is housed in a weatherproof enclosure suitable for outdoor installation. No external power supply is required for operation.

Advantages

The switch supports DiSEqC control from the receiver for automatic selection between up to four satellite inputs. Its integrated weatherproof housing allows safe outdoor mounting, and the compact dimensions make it easy to install in confined spaces. The unit covers the standard satellite frequency range and works without an additional power source.

Suitable for

Key specifications

How to use

Connect up to four satellite LNB cables to the input ports of the DiSEqC 4/1 switch and run the switch output to the satellite receiver's LNB input. Configure the receiver to control the desired satellite via DiSEqC commands (select input 1–4 as appropriate). Mount the unit outdoors if needed using the weatherproof housing, ensuring connections are tight and protected from severe mechanical strain.

Recommendations

Use coaxial cables in good condition and correctly tightened F-type connectors to minimise signal loss. Configure receiver DiSEqC settings after installation and test each satellite input individually to verify proper switching and signal levels.

Key Highlights
  • Small residential satellite installations with up to four LNBs
  • Replacing a single-satellite feed to enable multi-satellite reception
  • Outdoor mounting on a dish or in a satellite distribution box
  • Function: 4 inputs to 1 output DiSEqC switch
  • Frequency range: 950 – 2400 MHz
  • Power: no external power supply required (powered via receiver DiSEqC signals)
  • Housing: weatherproof enclosure for outdoor use
  • Dimensions: 77 mm (W) × 100 mm (D) × 44 mm (H)
  • Weight: 0.105 kg
Specifications
Compliance certificates
CE
Depth
100 mm
Digital Satellite Equipment Control (DiSEqC)
2.0
Height
44 mm
Input frequency range (satellite)
950 - 2400
Number of inputs
4 inputs
Number of outputs
1 outputs
Operating temperature (T-T)
-40 - 60
Package depth
110 mm
Package height
46 mm
Package weight
123 g
Package width
82 mm
Sustainability compliance
Yes
Weight
0.105 kg
Width
77 mm
