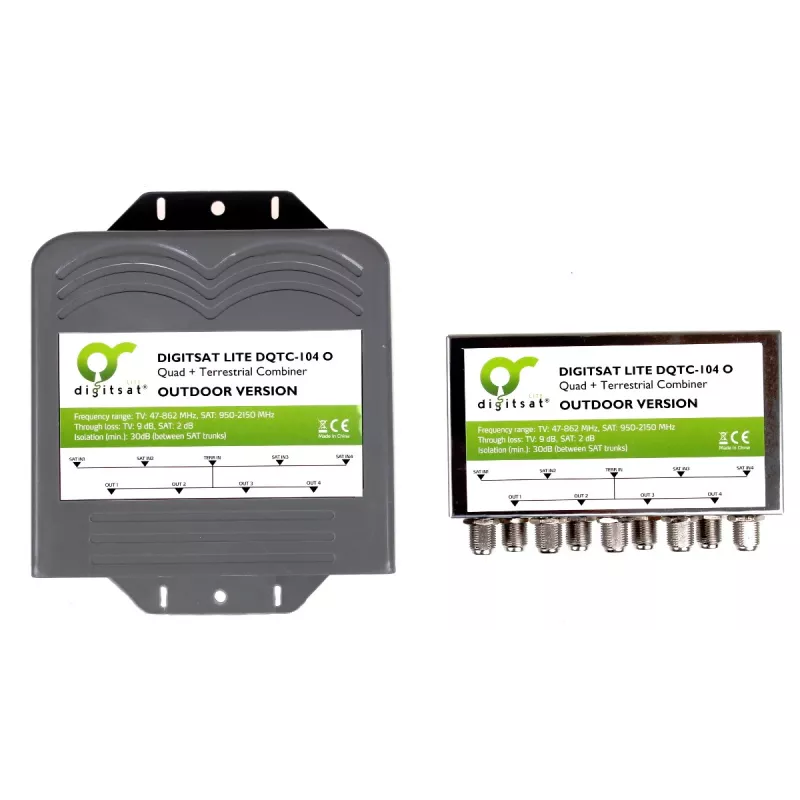

AXING SUMATOR DIGISAT QUAD+TV DQTC-104 Multiswitch 8 Satellite Inputs 1 Terrestrial Input 4 User Outputs

The AXING SUMATOR DIGISAT QUAD+TV DQTC-104 is a high-performance multiswitch designed for distributing satellite and terrestrial TV signals to up to four users. It supports up to eight satellite inputs (for two LNBs with four polarities each) and one terrestrial input, making it ideal for multi-dwelling units or single-family homes with multiple TV points. The unit features DiSEqC 2.0 control, ensuring compatibility with modern satellite receivers, and includes an external power supply for reliable operation.

Advantages

This multiswitch offers excellent signal isolation (>25 dB between inputs and outputs) to prevent interference, ensuring clear reception. Its compact design and F-type connectors make installation straightforward. The device is powered by an external 18V DC adapter, reducing heat buildup inside the unit.

Suitable for

• Distributing satellite and terrestrial TV signals to up to 4 users
• Multi-dwelling units (apartments, hotels) requiring shared antenna systems
• Single-family homes with multiple TV outlets
• Systems using two LNBs (e.g., for different satellite positions)

Key specifications

• Multiswitch Type: Satellite + Terrestrial
• Number of Satellite Inputs: 8 (for 2 LNBs, 4 polarities each)
• Number of Terrestrial Inputs: 1
• Number of User Outputs: 4
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite Gain (User Output): 0 dB
• Terrestrial Gain (User Output): -2 dB
• Satellite Input Isolation (H/V): >25 dB
• Satellite Input Isolation (SAT-SAT): >25 dB
• Terrestrial to Satellite Isolation: >25 dB
• Output Isolation (User-User): >25 dB
• Max Satellite Output Level: 100 dBµV
• Max Terrestrial Output Level: 85 dBµV
• Switching Control Protocol: DiSEqC 2.0 (compatible with 1.0)
• LNB Power Supply: 18V DC, max 500mA
• External Power Supply: 18V DC, 1000mA (adapter included)
• Connectors: F-type (all inputs/outputs)
• Operating Temperature: -20°C to +50°C
• Power Consumption: 10W

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. The multiswitch is compatible with DiSEqC 1.0/2.0 receivers. Verify LNB compatibility before installation.
