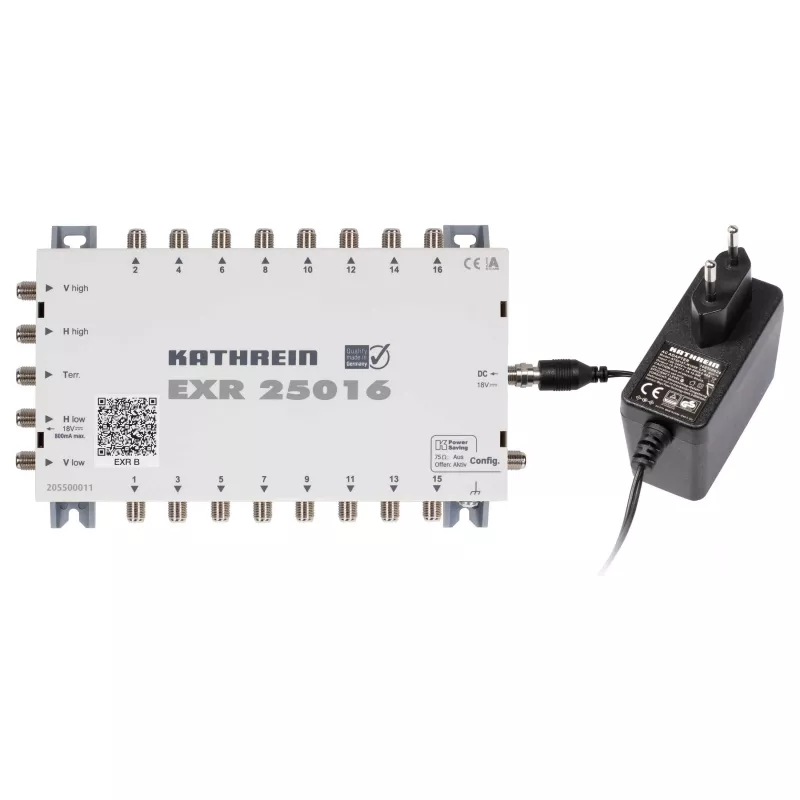

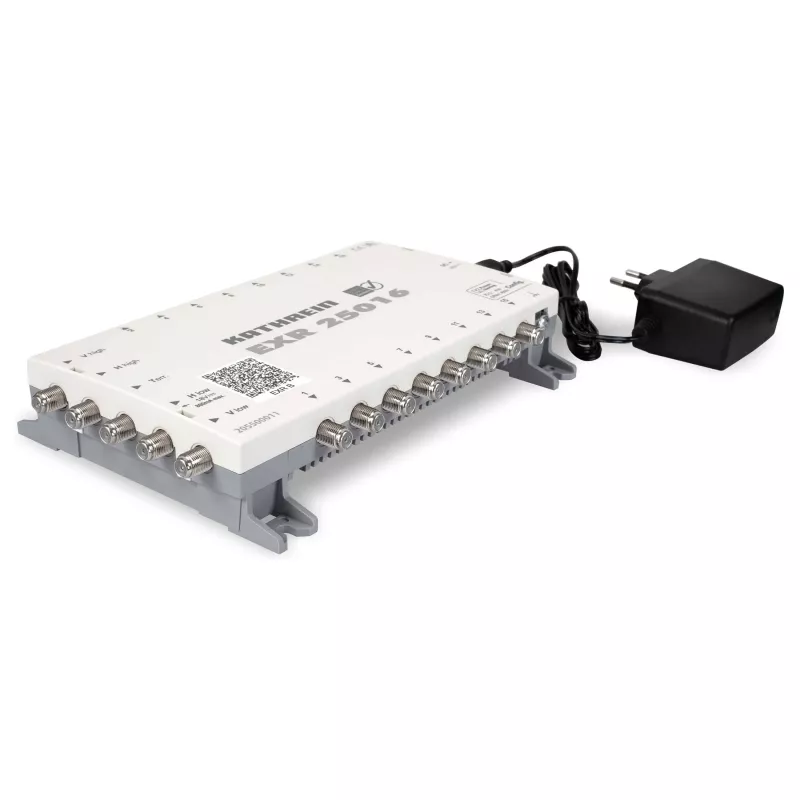

Kathrein EXR 25016 Satellite Multiswitch with 16 Outputs and Integrated Power Supply

The Kathrein EXR 25016 is a high-performance satellite multiswitch designed for distributing satellite and terrestrial signals to up to 16 subscribers. With an integrated power supply and support for DiSEqC 2.0 control, this multiswitch is ideal for multi-room installations in residential and commercial buildings. It features 4 SAT inputs for Quattro LNB and 1 terrestrial input, ensuring reliable signal distribution across all outputs.

Advantages

Integrated 230 V AC power supply eliminates the need for external adapters, simplifying installation. Passive SAT path with 0 dB insertion loss preserves signal quality, while the active terrestrial path provides 10 dB gain for optimal reception. DiSEqC 2.0 compatibility allows advanced control and switching. Shielding class A ensures excellent protection against interference.

Suitable for

• Multi-room satellite TV distribution in apartments, hotels, and office buildings
• Installations requiring up to 16 subscriber connections
• Systems using Quattro LNB and terrestrial antenna

Key specifications

• Product Type: Satellite Multiswitch
• Number of SAT Inputs: 4 (for Quattro LNB)
• Number of Terrestrial Inputs: 1
• Number of Subscriber Outputs: 16
• SAT Frequency Range: 950 - 2200 MHz
• Terrestrial Frequency Range: 5 - 862 MHz
• SAT Path Type: Passive
• Terrestrial Path Type: Active
• SAT Insertion Loss (typical): 0 dB
• Terrestrial Gain (typical): 10 dB
• Return Path Frequency Range: 5 - 65 MHz
• Control Protocol: DiSEqC 2.0 (compatible with 1.0/1.1)
• LNB Power Supply: Max. 500 mA
• Power Supply: Integrated 230 V AC
• Power Consumption (max): 15 W
• Shielding Class: A
• Operating Temperature: -20 to +50 °C
• Switching Criteria: 13/18V, 0/22kHz, DiSEqC
• Mounting Type: Wall mounting
• Dimensions (W x H x D): 239 x 148 x 43 mm

Recommendations

For optimal performance, use with a Quattro LNB and ensure proper grounding. The integrated power supply simplifies installation, but verify that the mounting location allows adequate ventilation.
