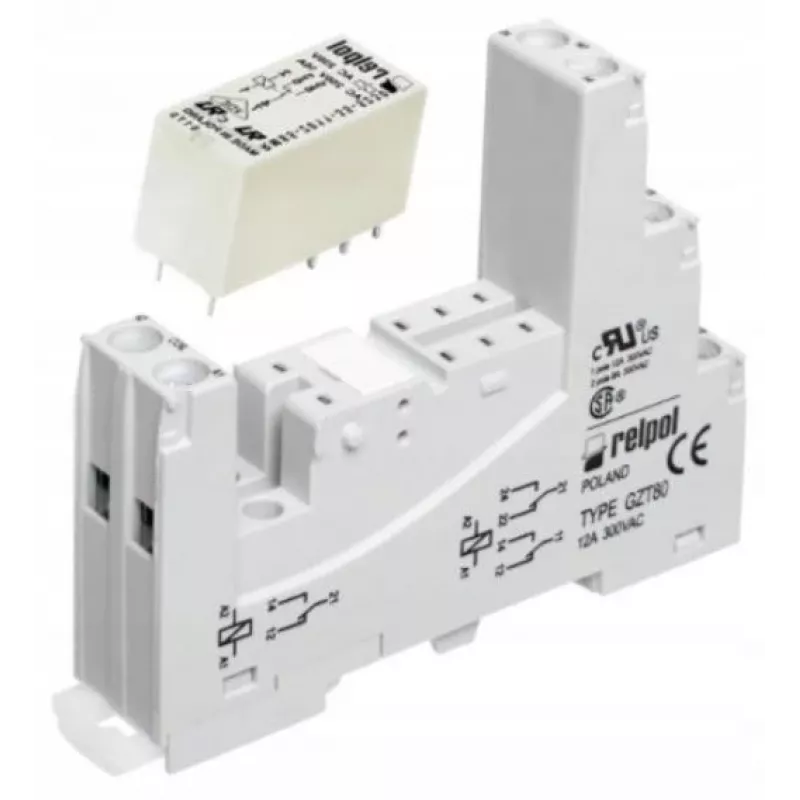

ROPAM RM85 12V 1P Relay Module 1-Channel 12V DC SPDT 10A

The ROPAM RM85 12V 1P is a high-quality single-channel relay module designed for reliable switching in automation, alarm systems, and general-purpose applications. With a 12V DC coil and SPDT contact configuration, it supports resistive loads up to 10A at 250V AC or 30V DC. The module features screw terminals for secure wiring, an LED status indicator for easy monitoring, and an integrated flyback diode for coil protection. Its compact surface/panel mount design makes it suitable for control panels, PLC interfaces, and industrial controllers.

Advantages

This relay module offers robust performance with a nominal coil current of approximately 35 mA, ensuring low power consumption. The built-in LED provides clear visual feedback of the relay state, simplifying troubleshooting. The integrated flyback diode protects the driving circuit from voltage spikes, enhancing system reliability. Screw terminals allow for quick and secure connections without special tools.

Suitable for

• Industrial automation and control systems
• Alarm and security systems
• PLC output expansion
• General-purpose switching applications

Key specifications

• Product Type: Relay Module
• Number of Channels: 1
• Coil Voltage: 12V DC
• Contact Configuration: SPDT (Single Pole Double Throw)
• Max Switching Current (Resistive Load): 10 A
• Max Switching Voltage (AC): 250 V AC
• Max Switching Voltage (DC): 30 V DC
• Nominal Coil Current: Approx. 35 mA
• Terminal Type: Screw Terminals
• Indicator: LED Status Indicator
• Coil Protection: Integrated Flyback Diode
• Operating Temperature Range: -10°C to +55°C
• Mounting Type: Surface Mount / Panel Mount
• Compliance: CE

Recommendations

For optimal performance, ensure the coil voltage matches your control signal (12V DC). Use appropriate wire gauge for the load current. The module is not suitable for inductive loads without additional suppression.
