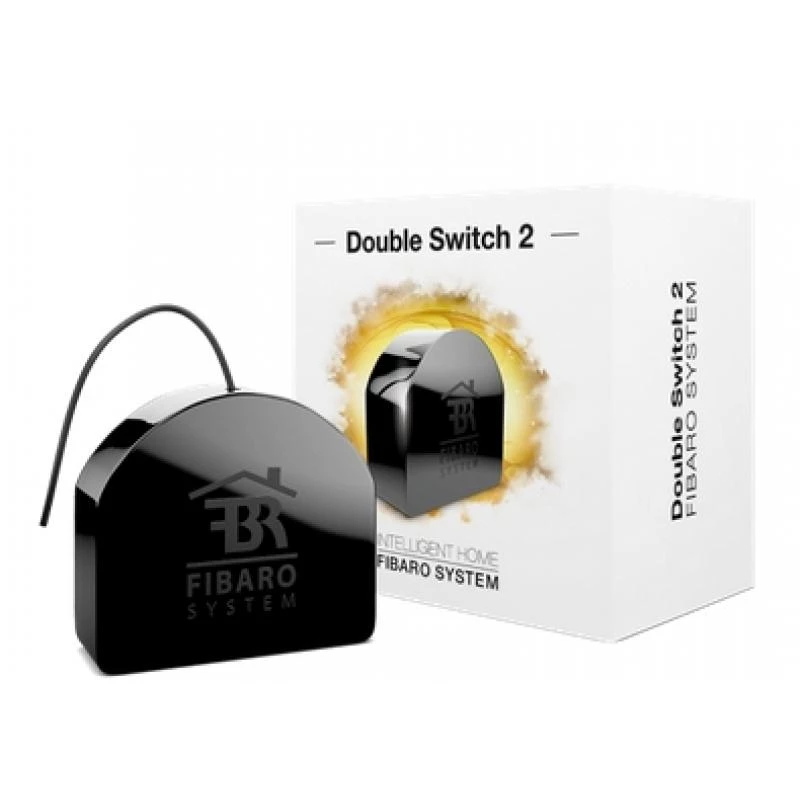

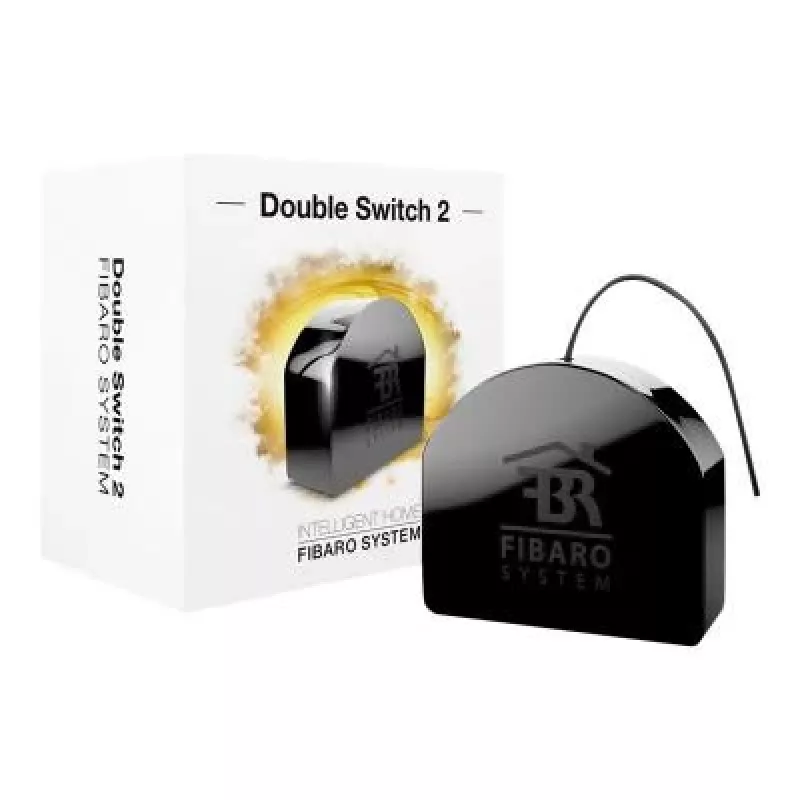

Electrical relay Fibaro FIBEFGS-223 Black — 230 V AC, 10 A, IP20, 42×38×20 mm

The Fibaro FIBEFGS-223 Black is a compact electrical relay (Double Switch 2, dual circuit On/Off) designed for AC input voltage of 110–230 V. With dimensions of 42.5 x 38.25 x 20.3 mm, it is intended for installation inside standard sockets or mounting boxes and enables remote control and automation of two separate electrical circuits via Z-Wave Plus (5) network. The device is suitable for integrating lighting and small appliances into home automation systems to improve control and energy management.

Advantages

The Fibaro FGS-223 offers dual-channel switching in a single compact module, making it possible to control two independent loads while saving installation space. Its compatibility with Z-Wave Plus (5) provides stable wireless communication and supports remote on/off control and scene integration. The module's small form factor simplifies fitting behind switches or inside sockets without altering visible fixtures.

Suitable for

• Controlling two lighting circuits (separate lights or zones)
• Switching small appliances remotely (fans, heaters, pumps within device rating)
• Integrating standard switches or sockets into a Z-Wave home automation system

Key specifications

• Model: Fibaro FIBEFGS-223 Black (FGS-223 ZW5)
• Type: Double Switch 2 — dual circuit On/Off relay
• Power supply: AC 110–230 V
• Dimensions: 42.5 x 38.25 x 20.3 mm
• Wireless protocol: Z-Wave Plus (5)
• EAN: 5902020528661

How to use

Install the FGS-223 inside a compatible socket box or behind existing wall switches following local electrical safety regulations. Connect the live, neutral, and load conductors according to the wiring diagram supplied by the manufacturer, ensuring each of the two output circuits is wired to the intended load. Include the module into your Z-Wave network via your hub or gateway, then configure the channels within the automation controller to allow remote on/off control, scene activation, or scheduling.

Recommendations

Use only within rated voltage and current limits; verify load compatibility before connecting appliances. Installation should be performed by a qualified electrician. After inclusion into a Z-Wave network, test each channel and configure protection or energy monitoring features available in your hub to ensure reliable operation.
