Smart home security kit Fibaro Starter KIT FR — HC3 Lite control panel, 4GB eMMC, Wi‑Fi, RF multi‑band

Starter KIT contains: Home Center Lite, Flood Sensor, Motion Sensor, Smoke Sensor 2, Door Window Sensor FGK-101, and Wall Plug E. The Smart Home Security Kit Fibaro Starter KIT FR (BE/FR) uses Z‑Wave wireless technology and includes the Home Center Lite as the central unit with a wired interface. The system operates at 868.4 MHz and the control unit uses a 12 V power supply while battery-powered sensors (for example ER14250, 3.6 V) provide door, window, motion, flood and smoke detection for home monitoring and automation.

Advantages

The kit combines a compact central controller with a set of well‑designed sensors to provide multi‑hazard coverage: moisture/flood, motion, smoke (photoelectric and temperature detection) and door/window contacts. Devices include local alarm outputs (siren and RGB indicator on the smoke sensor) and support for integration with other multimedia and wired alarm systems. Components are small and unobtrusive, enabling discreet installation and wireless communication across a Z‑Wave network.

Suitable for

• Basic home security and intrusion detection
• Early fire and smoke detection for living spaces
• Moisture and flood monitoring in basements, bathrooms or utility rooms
• Automation and remote control of appliances via the Wall Plug
• Integration with existing wired alarm or multimedia systems

Key specifications

• Included devices: Home Center Lite, Flood Sensor, Motion Sensor, Smoke Sensor 2, Door/Window Sensor FGK‑101, Wall Plug E
• Wireless protocol: Z‑Wave (868.4 MHz)
• Control unit power: 12 V (Home Center Lite)
• Sensor batteries: ER14250 / 3.6 V (examples for door/window and other battery sensors)

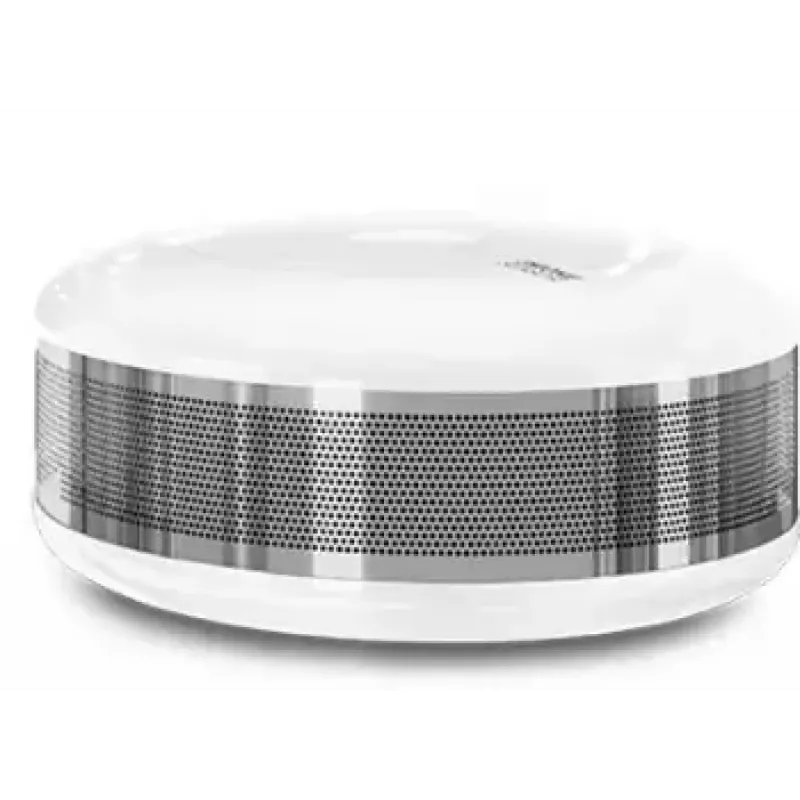

• Smoke Sensor features: photoelectric and temperature sensors, built‑in 100 dB siren, RGB visual indicator, electronic event recording
• Motion Sensor size: compact (approx. 2 in diameter)

How to use

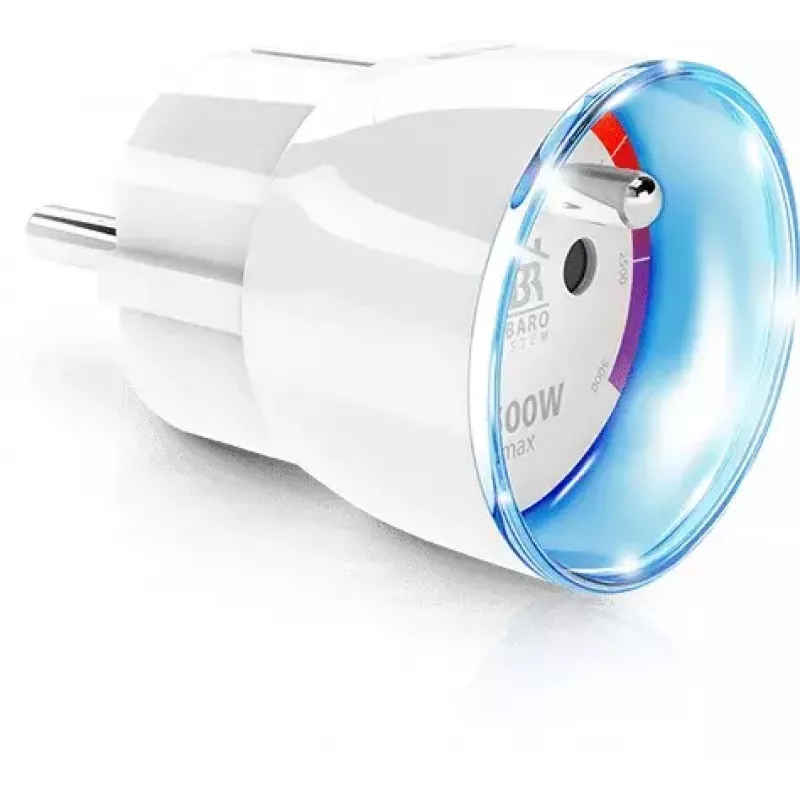

Install the Home Center Lite in a central location and connect it to your network and power supply. Add each Z‑Wave sensor to the controller following the inclusion procedure in the Home Center Lite interface. Mount the Door/Window Sensor on frames, position the Motion Sensor to cover required zones, place the Flood Sensor where water risk exists, and install the Smoke Sensor on ceilings or high on walls. Plug electrical devices into the Wall Plug to enable remote switching and power metering. Use the Home Center Lite interface or connected apps to configure alarms, automations and notifications.

Recommendations

Place the Smoke Sensor on ceilings or high on walls, install the Flood Sensor at floor level near likely water sources, and ensure the Home Center Lite is centrally located for optimal Z‑Wave range. Regularly check battery status in the sensors and test alarms and automations after installation.
