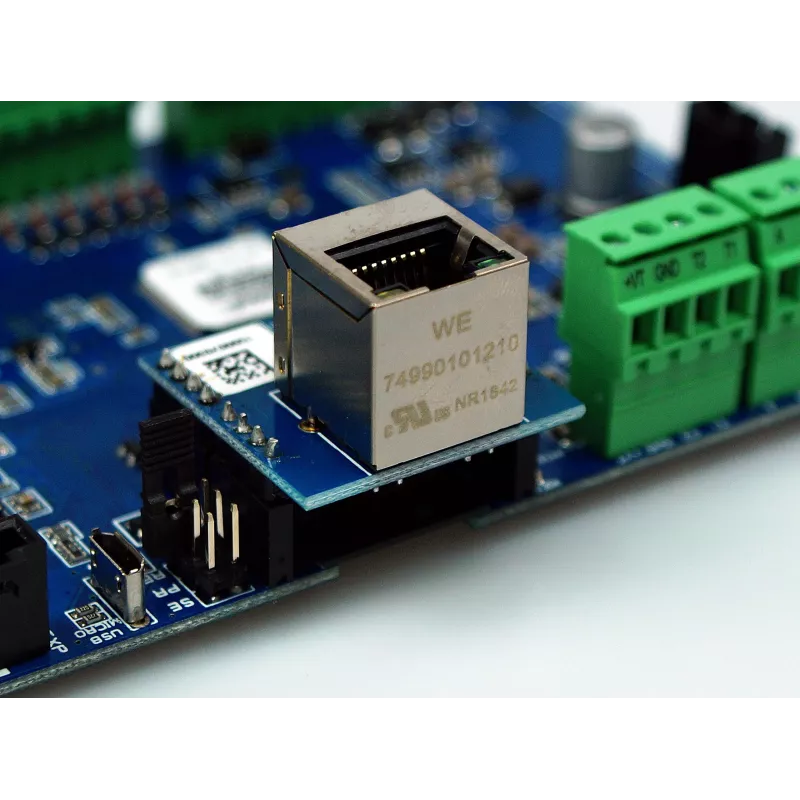

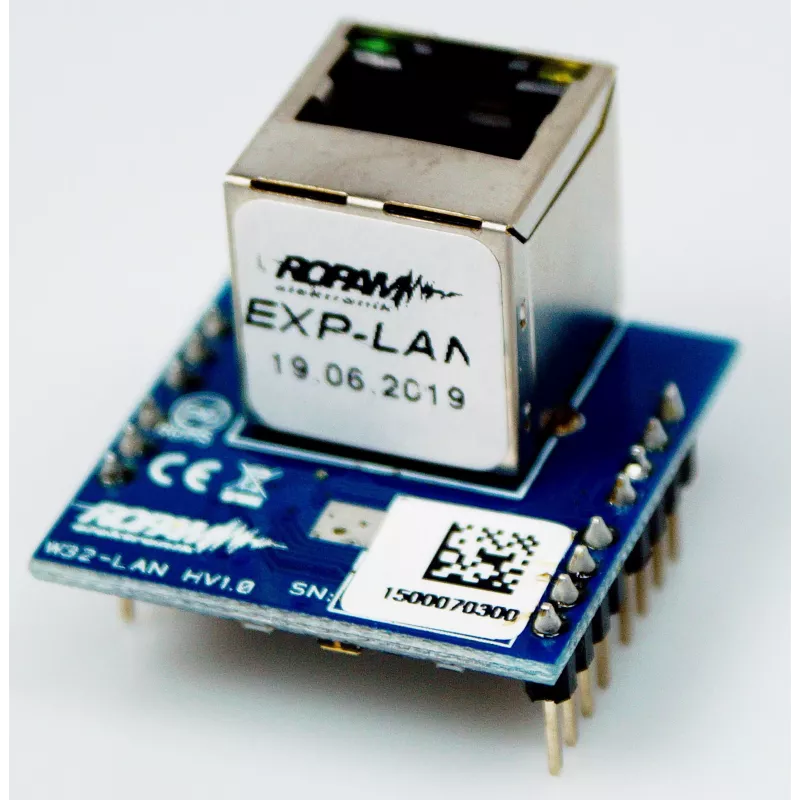

ROPAM EXPANDER MODULE ETH EXP-LAN

The ROPAM EXPANDER MODULE ETH EXP-LAN is an Ethernet communication module designed for remote management and integration of ROPAM alarm and automation systems. It enables seamless connectivity via LAN, allowing users to monitor, control, and configure compatible control panels through a web browser or mobile app.

Advantages

This module provides reliable remote access to your security system, supporting event logging, system status monitoring, and notifications via email or push messages. It integrates with ROPAMBridge for cloud connectivity and supports firmware updates over LAN, ensuring your system stays up-to-date without physical intervention.

Suitable for

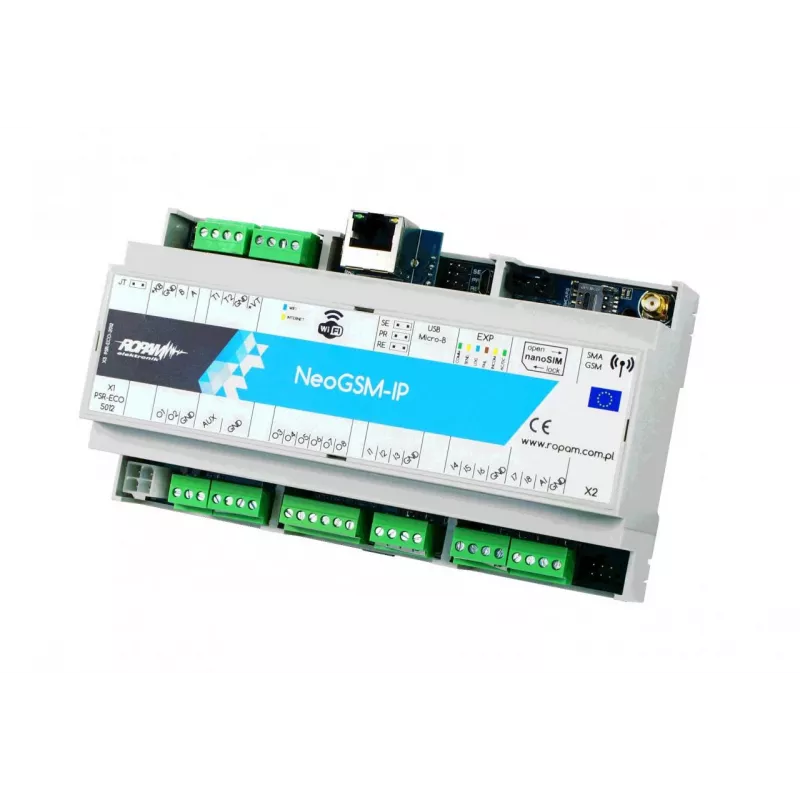

• ROPAM NEO, OPTIMA, and VISIO series control panels
• Remote monitoring and control of alarm and automation systems
• Integration with building management systems via MODBUS TCP/IP

Key specifications

• Product Type: Ethernet Communication Module
• Communication Interface: Ethernet (LAN)
• Network Connector: RJ-45
• Supported Protocols: TCP/IP, DHCP, DNS, NTP, SMTP, MODBUS TCP/IP
• Remote Control: Yes, via mobile app and web browser
• Monitoring Capabilities: Event logging, system status monitoring
• Notification Methods: Email, PUSH notifications (via ROPAMBridge)
• Cloud Integration: ROPAMBridge
• Firmware Update: Via LAN
• Configuration Method: Web browser, ROPAM Manager software
• Power Supply: 12V DC (from control panel)
• Current Consumption: Max. 80 mA
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Mounting: Internal to control panel enclosure
• LED Indicators: Power, LAN Link/Activity

Recommendations

For optimal performance, ensure your control panel firmware is updated to the latest version. Use a stable network connection and configure the module via the ROPAM Manager software for advanced settings.
