ROPAM Basic4G-SET: LTE 4G GSM Module Kit with Surface-Mount Enclosure, Power Supply, and Antenna

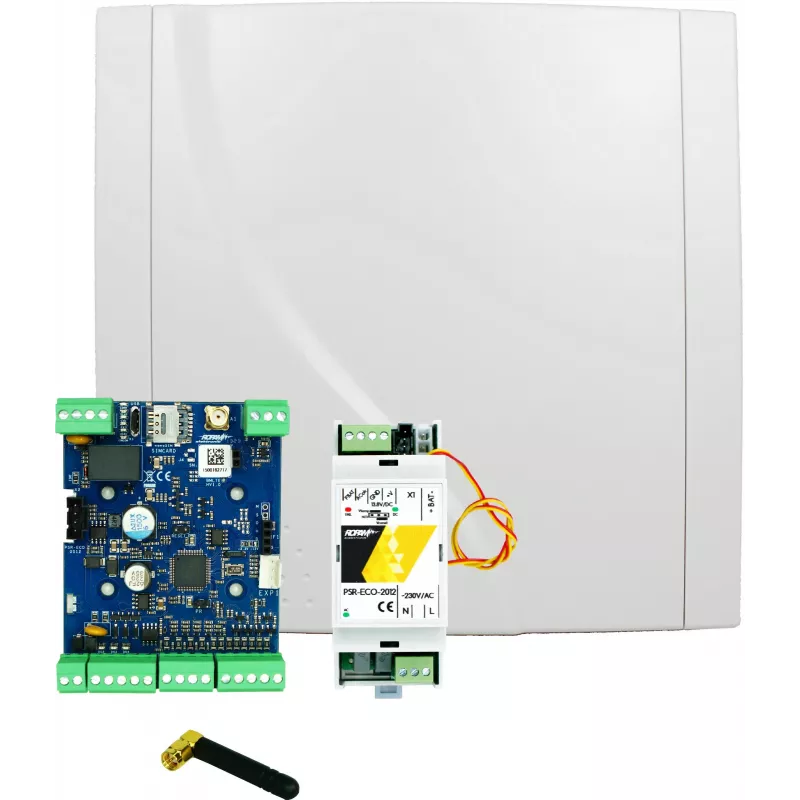

The ROPAM Basic4G-SET is a comprehensive LTE 4G/GSM communication module kit designed for remote monitoring, control, and alarm systems. It includes the Basic4G module, O-R3P surface-mount enclosure, AT-GSM-MINI90 external antenna with magnetic base, and PSR-ECO-2012 power supply. This kit provides reliable cellular connectivity for industrial and building automation applications.

Advantages

All-in-one solution with pre-configured components ensures quick installation and compatibility. The module supports LTE Cat.1 and GSM networks, offering high-speed data transfer and fallback to 2G. With 4 digital inputs, 4 relay outputs, and 2 temperature sensor inputs, it is versatile for various automation tasks. Remote control via SMS, DTMF, mobile app, or web interface provides flexibility.

Suitable for

• Remote monitoring of pumps, valves, and HVAC systems
• Alarm and security systems
• Industrial automation and telemetry
• Smart building management

Key specifications

• Communication: LTE Cat.1 (4G) and GSM (2G)
• LTE bands: B1/3/7/8/20/28, B38/40/41
• GSM bands: 900/1800 MHz
• Max data speed: 10 Mbps DL / 5 Mbps UL
• Antenna: External GSM/LTE, SMA female connector
• Enclosure: Surface-mounted (O-R3P)
• Power supply: 12V DC, 2A (PSR-ECO-2012)
• Module voltage: 10-14V DC
• Digital inputs: 4 (programmable, NO/NC)
• Relay outputs: 4 (OC type, 1A/30V DC max)
• Temperature sensor inputs: 2 (NTC)
• Configuration: USB interface
• Remote control: SMS, DTMF, Ropam App, Web Server
• Notifications: SMS, PUSH, E-mail
• SIM card: Mini-SIM (2FF)
• Operating temperature: -10°C to +55°C

Recommendations

Ensure proper antenna placement for optimal signal strength. Use a suitable SIM card with data plan. For outdoor installations, consider additional weatherproofing.
