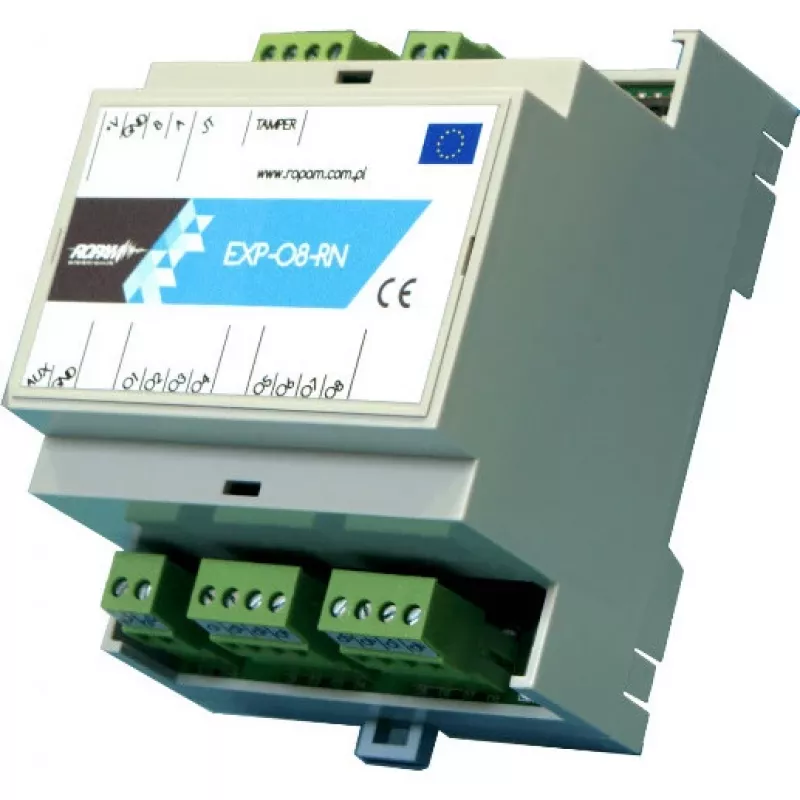

Triton ROPAM Output Expander EXP-O8T-RN-D4M

The Triton ROPAM Output Expander EXP-O8T-RN-D4M is a high-quality module designed to expand the output capabilities of ROPAM control panels. It provides 8 open collector transistor outputs, each capable of handling up to 1A, with a total maximum current of 4A. This expander communicates via the RopamNET bus, ensuring seamless integration with compatible ROPAM systems. Ideal for access control and automation applications, it offers reliable performance and easy DIN rail mounting.

Advantages

Expand your system's output capacity with 8 independent channels. The open collector outputs are suitable for driving relays, LEDs, and other low-power devices. The module features LED indicators for power, RopamNET status, and each output, simplifying troubleshooting. Its compact design (4 modules wide) saves space on the DIN rail.

Suitable for

• Access control systems requiring additional output points
• Building automation and security applications
• Integration with ROPAM control panels via RopamNET

Key specifications

• Module Type: Output Expander
• Number of Output Channels: 8
• Output Type: Open Collector (OC) Transistor
• Max Output Current per Channel: 1 A
• Max Total Output Current: 4 A
• Output Voltage: 12V DC (System Voltage)
• Communication Protocol: RopamNET Bus
• Power Supply Voltage: 10-14V DC
• Power Consumption: < 100 mA (without load)
• Mounting Method: DIN Rail (4 modules)
• Terminal Type: Screw Terminals
• Operating Temperature Range: -10°C to +50°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Compatibility: ROPAM Control Panels with RopamNET
• LED Indicators: Power, RopamNET Status, 8x Output Status
• Enclosure Material: ABS Plastic
• Protection Rating: IP20
• Dimensions (W x H x D): 70 x 90 x 58 mm

Recommendations

For optimal performance, use with ROPAM control panels that support RopamNET. Ensure the power supply is within the specified voltage range. This expander is not suitable for direct control of high-power devices; use external relays if needed.
