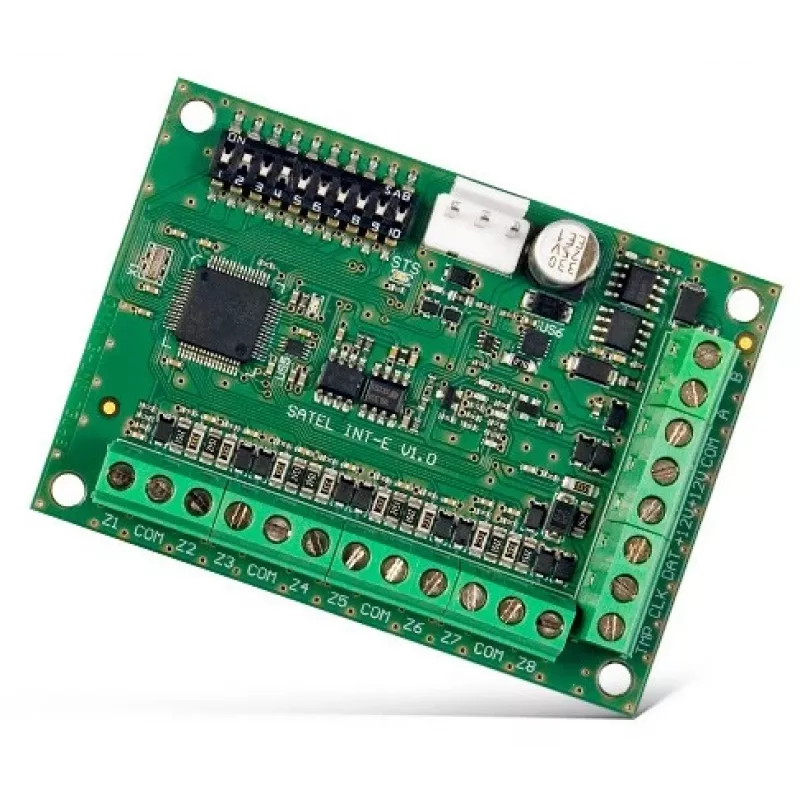

Relay module Satel INT-E alarm / detector accessory

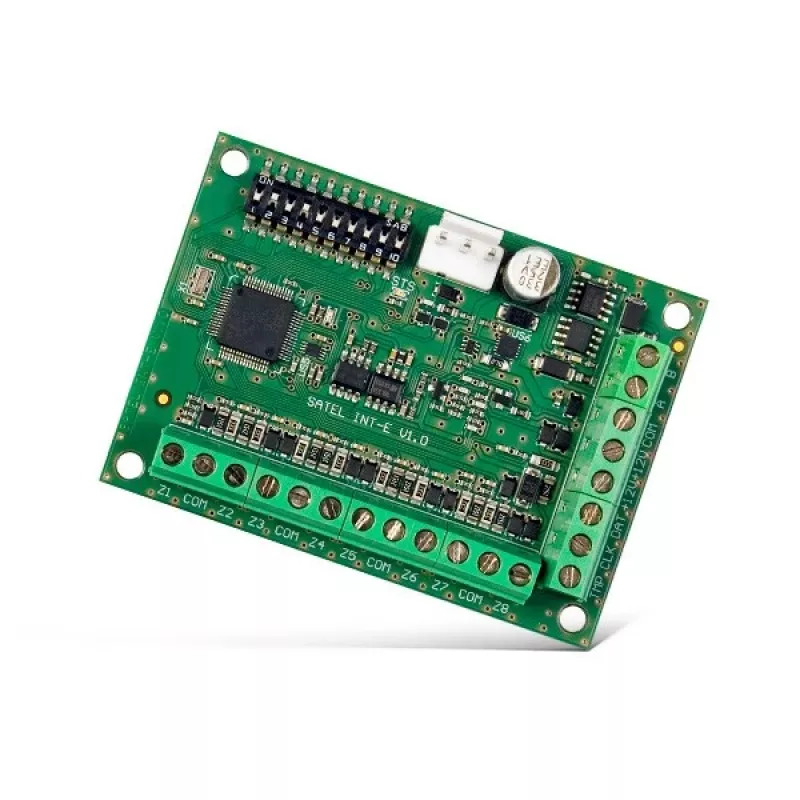

The Satel INT-E zone expansion module adds eight wired zones to compatible control panels and supports direct connection of roller shutter and vibration detectors. Designed as a replacement for the CA-64 E/CA-64 EPS module, the INT-E is compatible with INTEGRA, INTEGRA Plus, VERSA, VERSA Plus, PERFECTA, PERFECTA-T families and the ACCO-NT access control panel. The module operates from a 12 V input and is compact and lightweight for easy installation.

Advantages

The INT-E provides reliable expansion of alarm systems by offering eight additional wired zones and a tamper input to detect enclosure opening. It supports direct connection of roller shutter and vibration detectors, simplifies integration with supported control panels and replaces the older CA-64 E/CA-64 EPS module. Small dimensions and low weight facilitate mounting inside control enclosures while the 12 V input and 80 mA trigger current match typical alarm-system power supplies.

Suitable for

• Expanding wired zones on INTEGRA and VERSA series alarm control panels
• Integration with PERFECTA and PERFECTA-T control panels
• Use with ACCO-NT access control systems
• Connecting roller shutter and vibration detectors

Key specifications

• Manufacturer: SATEL
• Model: INT-E (replacement for CA-64 E / CA-64 EPS)
• Added zones: 8 wired zones
• Power input: 12 V
• Trigger current: 80 mA
• Dimensions (W×D): 80 mm × 57 mm
• Weight: 47 g
• MPN: 5 905 033 331 556
• EAN: 5905033331556

How to use

Mount the INT-E module inside the control panel enclosure and connect it to the compatible control panel bus following the manufacturer's wiring diagram. Connect sensors to the eight wired zone inputs and use the dedicated inputs for roller shutter and vibration detectors as required. Connect the module power to a 12 V supply capable of providing the system current; observe correct polarity. Configure the control panel to recognise the additional zones according to the panel's installation manual.

Recommendations

Install and configure the module according to SATEL installation instructions. Ensure the control panel firmware supports INT-E and verify power supply capacity before adding detectors. For safety and correct operation, have installation and wiring performed by qualified personnel.
