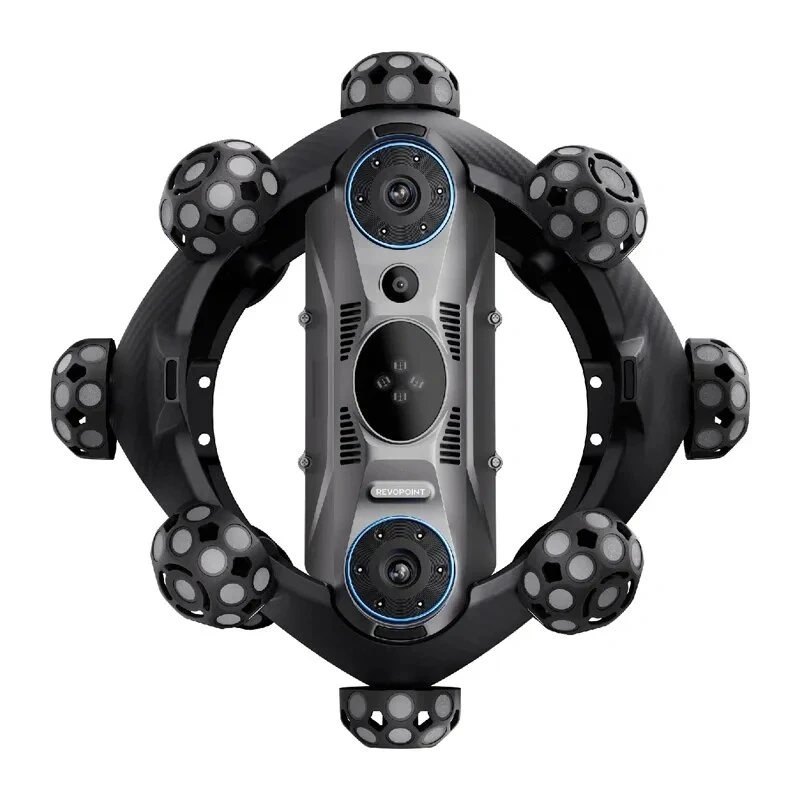

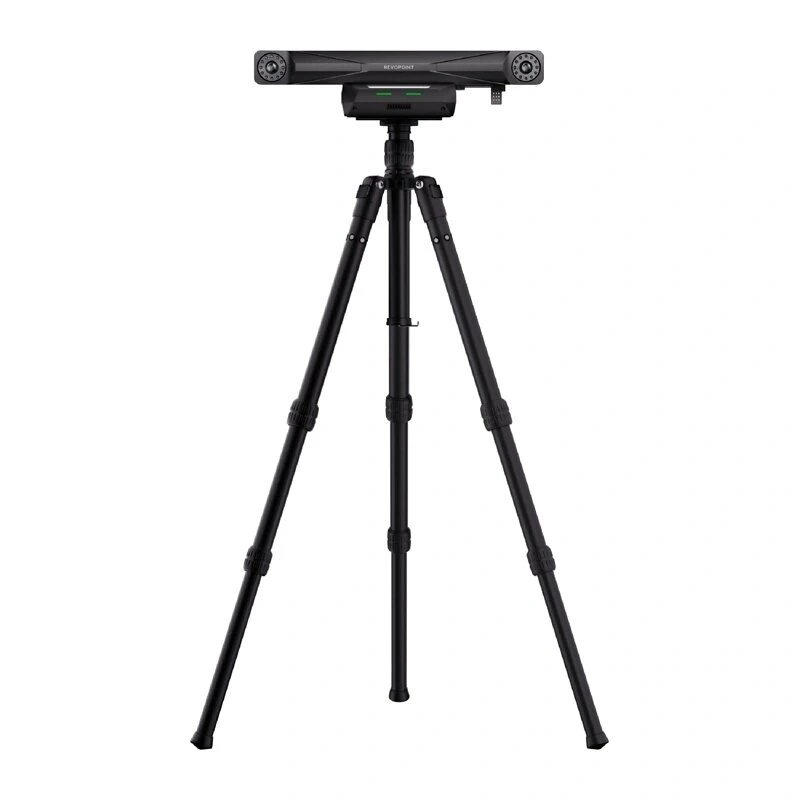

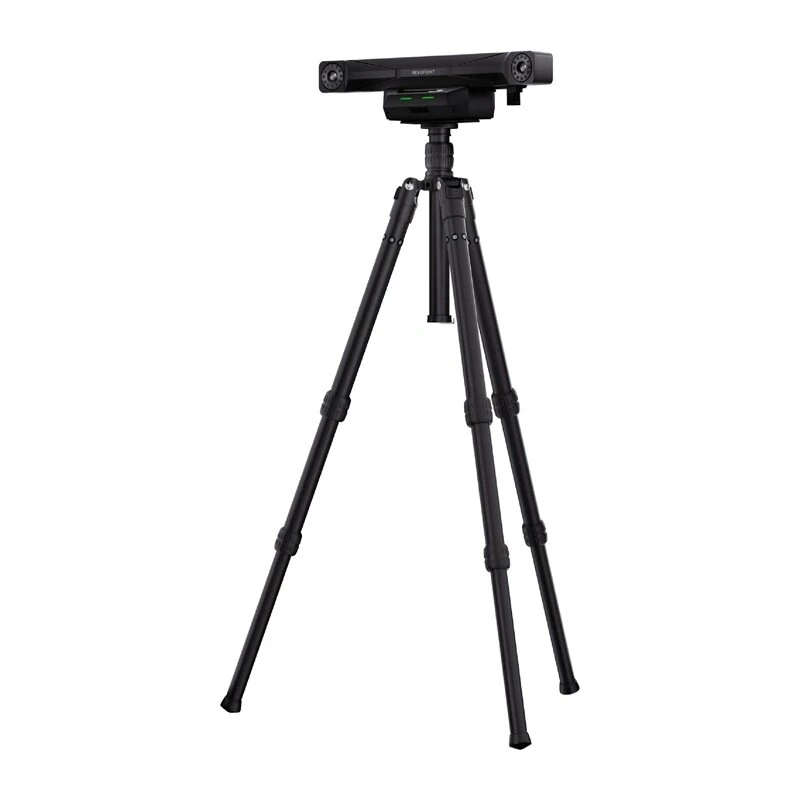

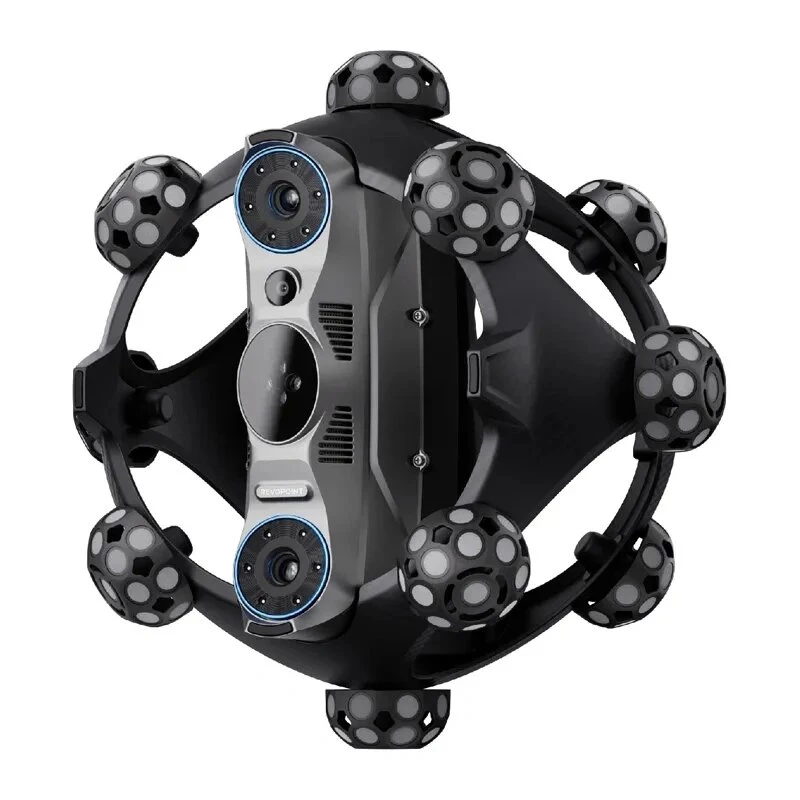

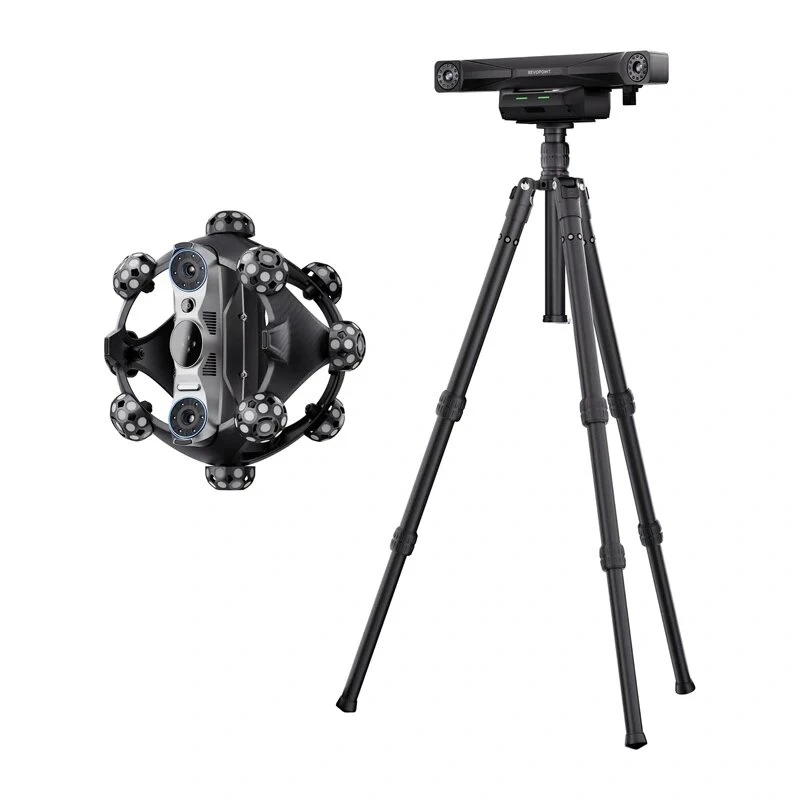

Revopoint Trackit SR Optical 3D Scanner - High Precision Handheld 3D Scanning with Infrared Structured Light

The Revopoint Trackit SR Optical 3D Scanner sets a new standard for portable 3D scanning, delivering professional-grade accuracy in a compact, user-friendly design. Unlike typical scanners that require complex setups or compromise on detail, the Trackit SR combines binocular infrared structured light technology with an integrated RGB camera to capture both geometry and color with remarkable fidelity. Whether you're a designer, engineer, or hobbyist, this scanner empowers you to digitize objects with ease, from tiny components to larger assemblies.

Highlights

• High accuracy up to 0.02 mm for precise measurements
• Fast scanning speed up to 14 fps for efficient data capture
• Integrated RGB camera enables full-color 3D scanning
• Multiple tracking modes: Feature, Marker, and Hybrid for versatile use
• Compact and portable design, compatible with Windows, macOS, Android, and iOS

In daily use

Imagine capturing a mechanical part, a sculpture, or even a human hand in minutes. The Trackit SR's automatic calibration and intuitive Revo Scan software make the process straightforward. Simply connect via USB Type-C, launch the app, and start scanning. The scanner's working distance of 150-400 mm gives you flexibility, while the single capture range of 100 x 75 mm ensures you can capture fine details. With a minimum scan volume of just 10 x 10 x 10 mm, even the smallest objects are within reach. The device is powered via USB, so no external power supply is needed—perfect for on-the-go use.

Full specifications

• Scanning Technology: Binocular Infrared Structured Light
• Accuracy: Up to 0.02 mm
• Point Distance (Resolution): 0.05 mm
• Scanning Speed: Up to 14 fps
• Single Capture Range: 100 mm x 75 mm
• Working Distance: 150 mm - 400 mm
• Light Source: Infrared
• Tracking Modes: Feature, Marker, Hybrid
• Output Formats: PLY, OBJ, STL
• Connectivity: USB Type-C
• Compatible Operating Systems: Windows, macOS, Android, iOS
• Bundled Software: Revo Scan
• Color Scanning: Yes (Integrated RGB Camera)
• Minimum Scan Volume: 10 x 10 x 10 mm
• Calibration Method: Automatic
• Data Acquisition: High-speed 3D imaging chip
• Power Input: 5V DC

Final note

The Revopoint Trackit SR is more than a scanner—it's a gateway to digital creation. Its blend of portability, precision, and color capture makes it an indispensable tool for professionals and creators alike. Experience the future of 3D scanning today.
