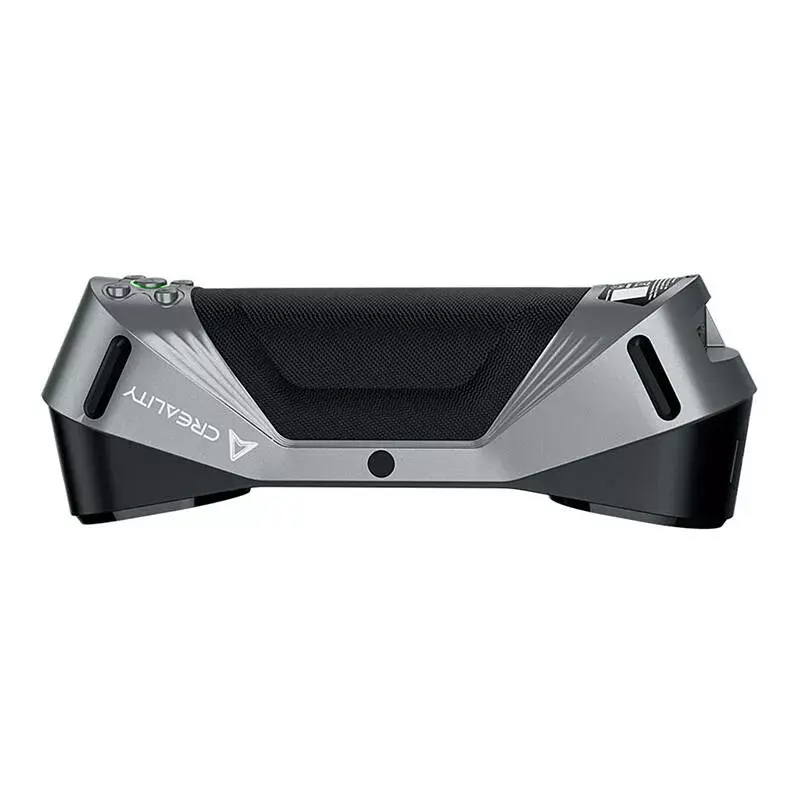

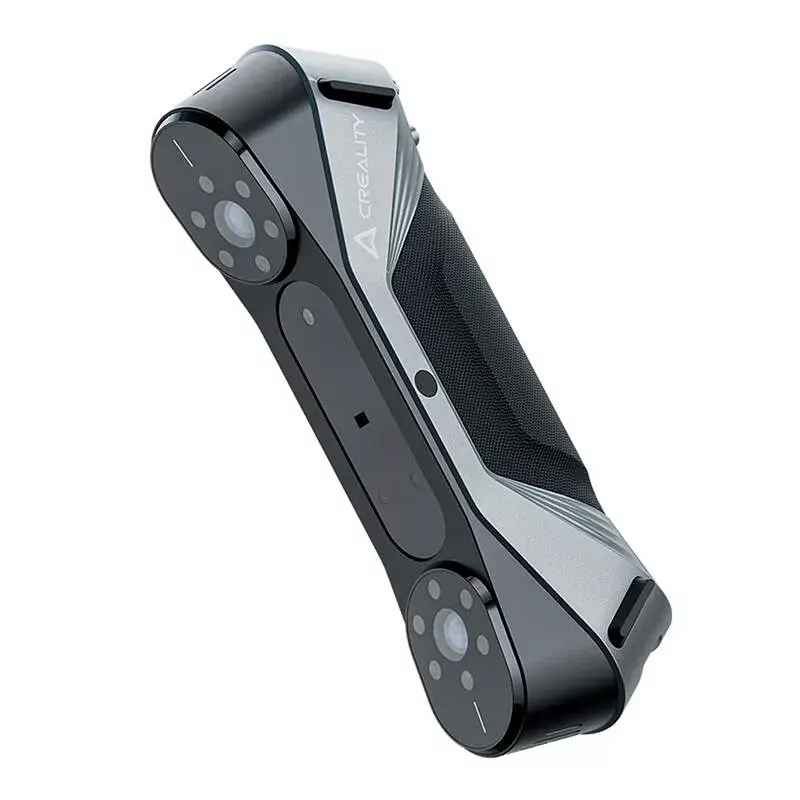

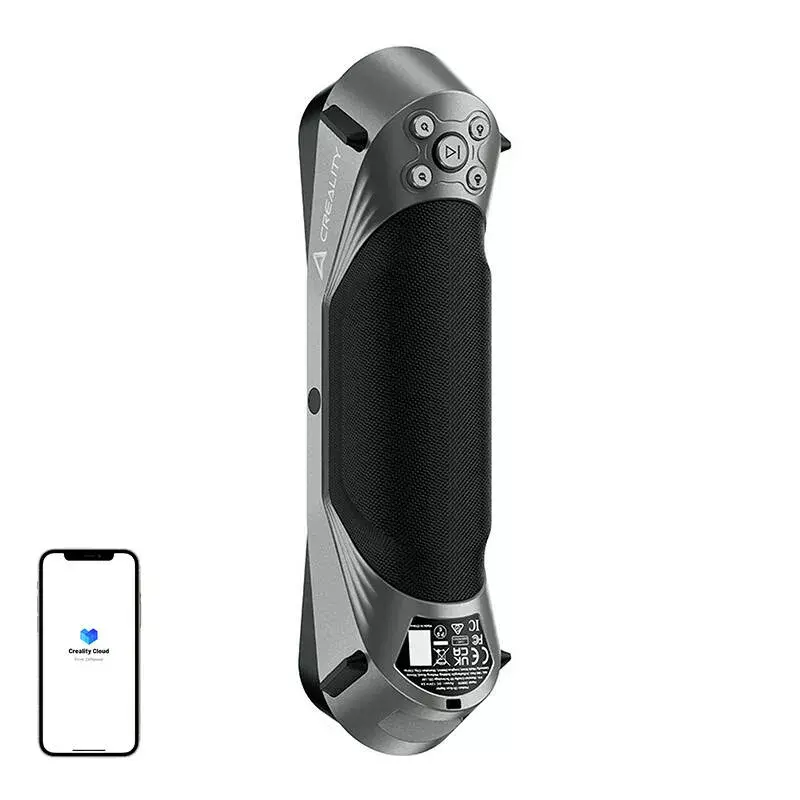

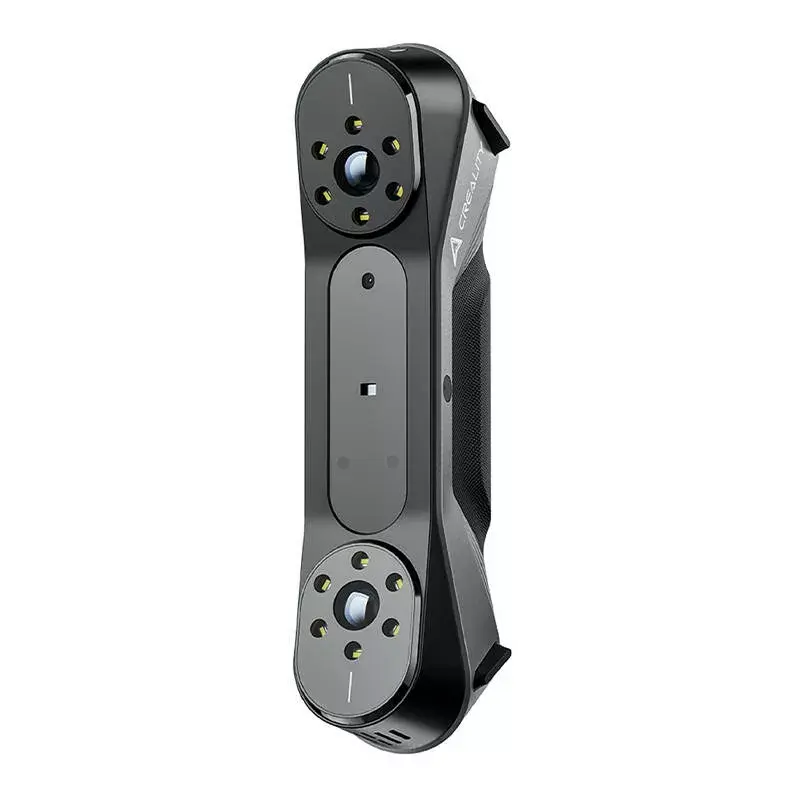

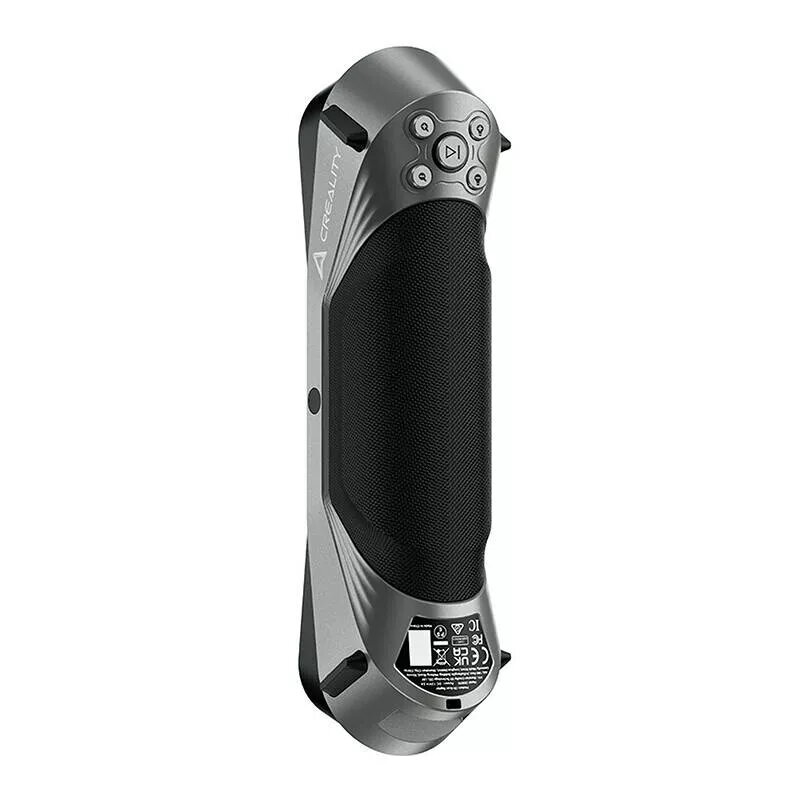

3D Scanner Creality CR-Scan Raptor — handheld USB-powered scanner, 0.05 mm accuracy

Creality CR-Scan Raptor 3D Scanner combines blue laser and NIR infrared structured light to produce high-precision 3D models of objects from very small parts to large components up to 2000 × 2000 × 2000 mm. The device is designed for professional use and advanced hobbyists who need metrology-level accuracy and color mapping for realistic texture reproduction.

Advantages

The scanner offers high precision down to 0.02 mm in blue-light mode and supports two scanning technologies (blue light and NIR) to cover a wide range of object sizes and surface types. It provides fast capture speeds (up to 60 fps in blue-light mode and up to 20 fps in NIR mode), stable scanning with temperature compensation and vibration reduction, and the ability to scan challenging surfaces such as black or metallic objects without spray. The unit is compact and lightweight for field use and supports Windows and macOS with planned wireless scanning via accessories.

Key specifications

• Name: Creality CR-Scan Raptor 3D scanner
• Manufacturer: Creality
• Model: 4008050049
• Scanning mode: Blue light (7-line laser), NIR (infrared, binocular structured light)
• Accuracy: Blue light up to 0.02 mm at 100 mm; NIR up to 0.1 mm
• 3D resolution: Blue light 0.02–2 mm; NIR 0.1–2 mm
• Scanning speed: Blue light up to 60 fps; NIR up to 20 fps
• Minimum scan volume: Blue light 5 × 5 × 5 mm; NIR 150 × 150 × 150 mm
• Single capture range: Blue light 270 × 170 mm at 300 mm; NIR 930 × 580 mm at 1000 mm
• Working distance: Blue light 150–400 mm; NIR 170–1000 mm
• Color mapping: Yes (24-bit RGB)
• Alignment modes: Marker / geometry / texture
• 3D imaging camera resolution: 1920 × 1200
• Additional illumination: 12 white LEDs; marker enhancement: 12 blue LEDs
• Laser safety: Class I (eye safe)
• IMU: Yes
• Output formats: OBJ / STL / PLY
• Power supply: 12V 2A
• Data interface: Type-C / USB 3.0
• Dimensions: 215 × 50 × 74 mm
• Weight: 372 g
• Wireless scanning: Supported with future wireless accessories
• Supported systems: Windows 10/11 (64-bit), macOS
• Operating temperature: -10°C to 40°C

How to use

Connect the CR-Scan Raptor to a compatible computer via USB Type-C (USB 3.0 recommended) and supply power with the 12V 2A adapter. Choose the appropriate scanning mode—blue light for small, high-detail parts or NIR for larger objects and challenging surfaces—and set the working distance according to the object size (blue light 150–400 mm, NIR 170–1000 mm). Use marker, geometry, or texture alignment depending on the object's features, and enable color mapping if texture capture is required. Follow on-screen instructions in the scanner software to perform capture, align scans, and export models in OBJ, STL, or PLY format.

Recommendations

For best results, maintain a stable working distance and minimize external vibrations. Use blue-light mode for fine-detail scans and NIR mode for larger or difficult surfaces. Ensure your computer meets the system requirements (Windows 10/11 64-bit or macOS) and consider optional wireless accessories for mobile operation.
