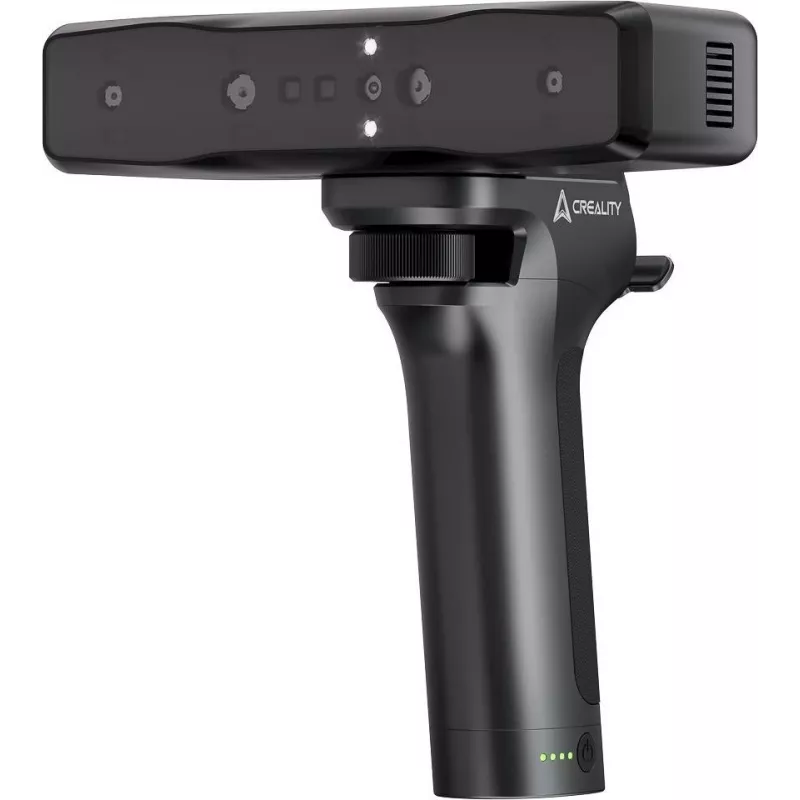

Creality CR-SCAN Otter Lite 3D Scanner - Near-Infrared Structured Light, 0.02mm Accuracy, Handheld & Desktop

The Creality CR-SCAN Otter Lite is a versatile 3D scanner that combines near-infrared structured light technology with a built-in color camera, delivering high-precision scans with up to 0.02 mm accuracy. Ideal for professionals and enthusiasts, it supports both handheld and desktop scanning modes, making it suitable for a wide range of applications from reverse engineering to art preservation.

Advantages

High accuracy and resolution, fast scanning speed, dual-mode flexibility (handheld and desktop), color scanning capability, and broad compatibility with multiple operating systems and output formats.

Suitable for

• 3D modeling and design
• Reverse engineering
• Quality inspection
• Cultural heritage preservation
• Medical and dental applications
• Education and research

Key specifications

• Scanning Technology: Near-infrared structured light
• Accuracy: Up to 0.02 mm
• Resolution (Point Distance): 0.05 mm - 2 mm
• Scanning Speed: Up to 20 FPS
• Single Scan Range: 160 x 100 mm
• Working Distance: 160 mm - 250 mm
• Light Source: Near-infrared
• Color Scanning: Yes, built-in color camera
• Output Formats: OBJ, STL, PLY
• Connectivity: USB Type-C
• Supported Operating Systems: Windows 10/11 (64-bit), macOS (Ventura 13.0+), Android, iOS
• Minimum Object Size: 10 x 10 x 10 mm
• Maximum Object Size: 1200 x 1200 x 1200 mm (Handheld Mode)
• Tracking Modes: Visual Tracking, Marker Tracking
• Power Input: 5V DC, 2A
• Recommended PC CPU: Intel Core i7-8700 or higher
• Recommended PC RAM: 16 GB or more
• Recommended PC GPU: NVIDIA GeForce RTX 3060 or higher

Recommendations

For optimal performance, use a computer meeting the recommended specifications. The scanner is compatible with Windows, macOS, Android, and iOS devices via USB Type-C.
